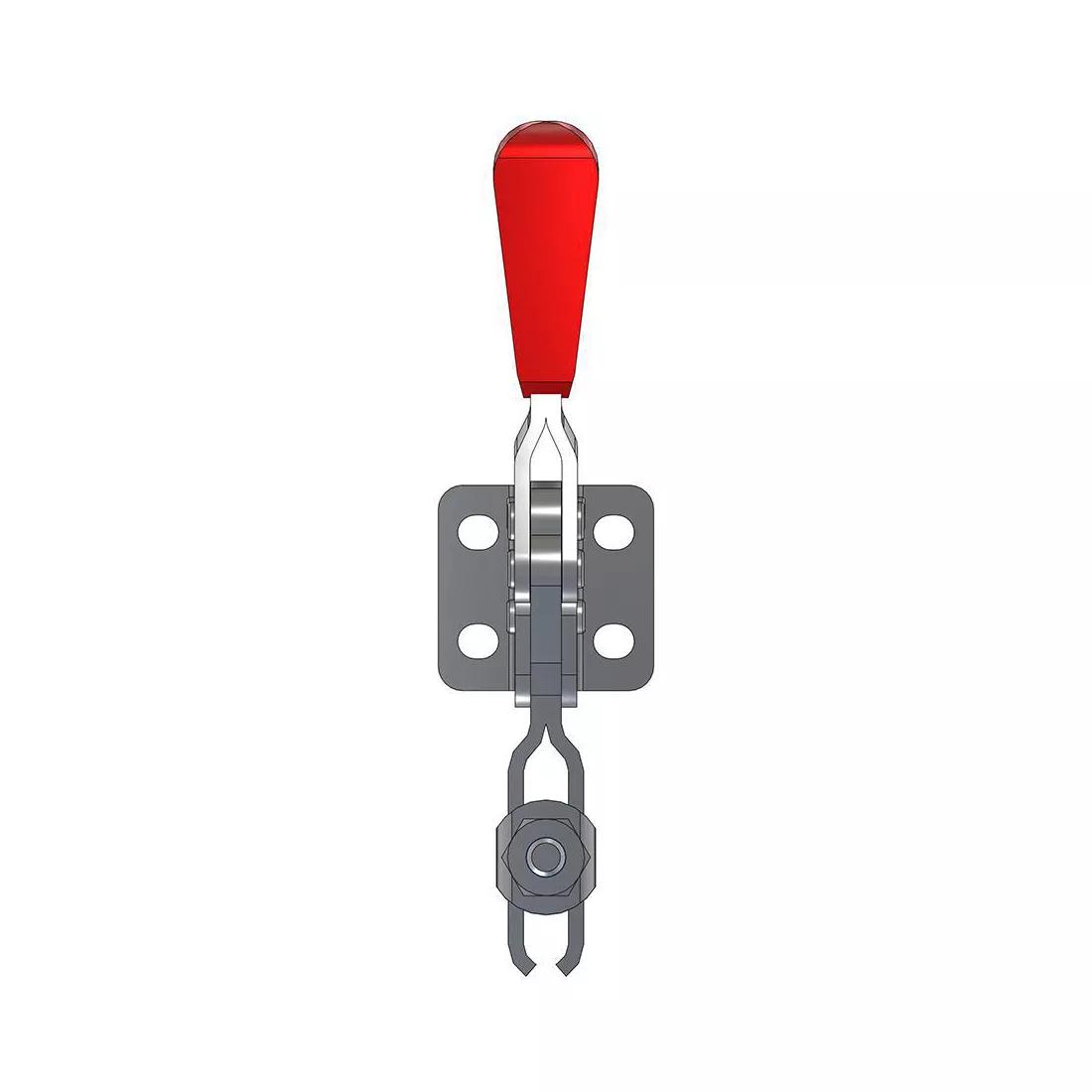

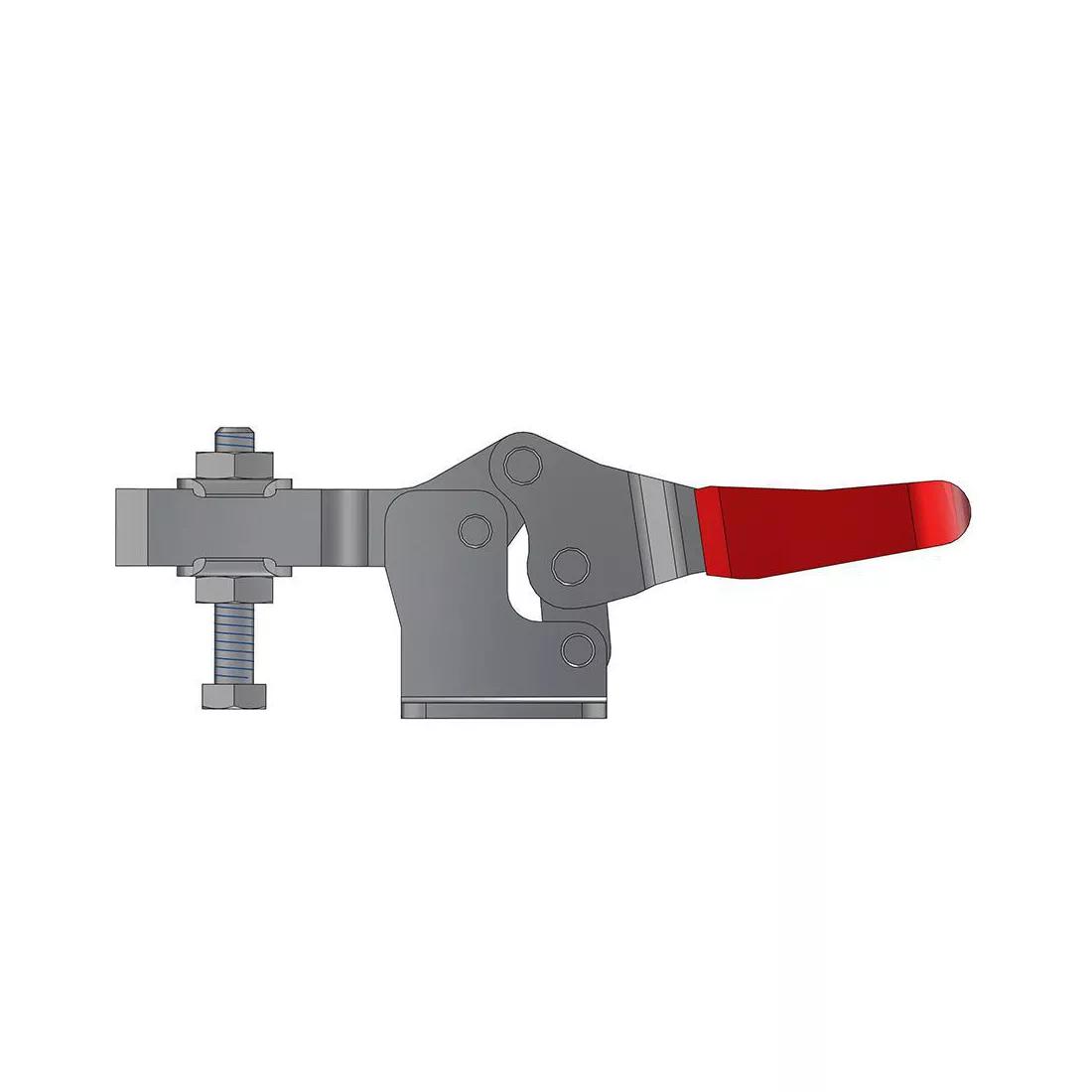

Manual Hold Down Clamp - Height Under Arm - 19.1 mm | 0.750 in; Holding Capacity - 667.2 N | 150 lbf; Stainless Steel

Name: Manual Horizontal Hold Down Clamps - TC-213-USS
SKU: TC-213-USS
Availability: InStock

Item code:

TC-213-USS

68 In stock For more information Delivery & returns

1.360 inH x 3.940 inL Horizontal Manual Hold Down Clamp has a U-Bar and Flanged base providing of holding force while saving work space.

Unfortunately pricing information is not available. Please call customer service at 800 253 0421 or email sales@reidsupply.com.

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Imperial

Metric

SKU attributes
Brand	DESTACO
Holding Capacity	667.2 N
Holding Capacity	150 lbf
Base Length	25.4 mm
Base Length	1.00 in
Base Width	26.9 mm
Base Width	1.06 in
Overall Height	34.5 mm
Overall Height	1.36 in
Overall Length	100.1 mm
Overall Length	3.94 in
Arm Length	36.1 mm
Arm Length	1.42 in
Height Under Arm	19.1 mm
Height Under Arm	0.750 in
Arm Movement	90
Handle Movement	60
Mounting Hole Spacing Along Length	19.1 mm
Mounting Hole Spacing Along Length	0.750 in
Mounting Hole Spacing Along Width	13.5 mm
Mounting Hole Spacing Along Width	0.530 in
Base Type	Flanged
Arm Type	U-Bar
Spindle Type	Hex Head
Spindle Thread Size	10-32,M5
