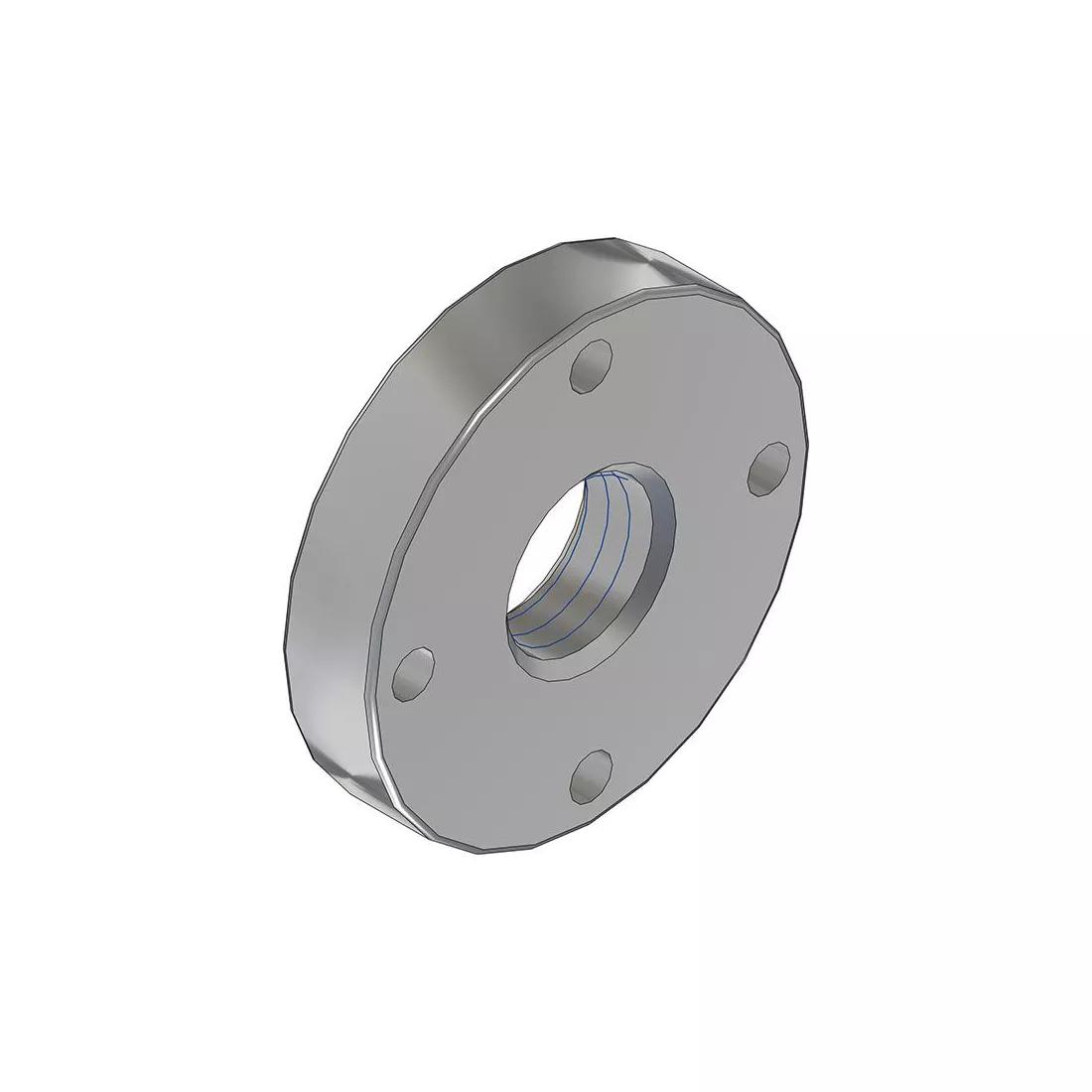

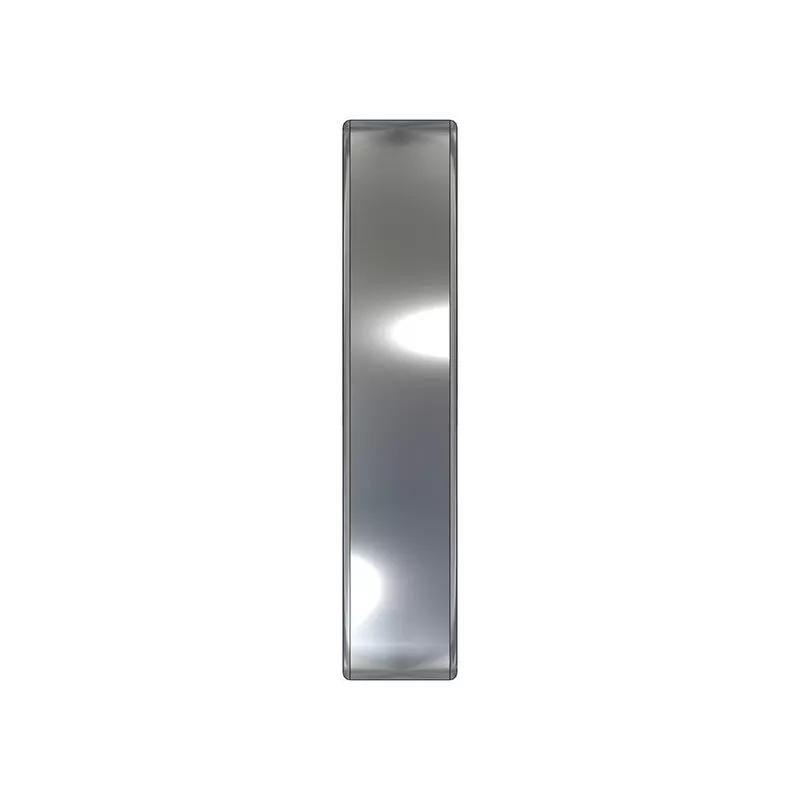

ACME Flange; Flange Outside Diameter=66 mm | 2.600 in, Flange Thickness=13.5 mm | 0.530 in, Compatible ACME Nut Internal Thread Size=1/2-105/8-8
AR-102 Manufacturer Part Number: FLG7570
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Helix Linear |
|---|---|
| Manufacturer Part Number | FLG7570 |
| Type | Ball & ACME Screws |
| Flange Outside Diameter | 2.600 in |
| Bolt Circle Diameter | 2.090 in |
| Flange Thickness | 0.530 in |
