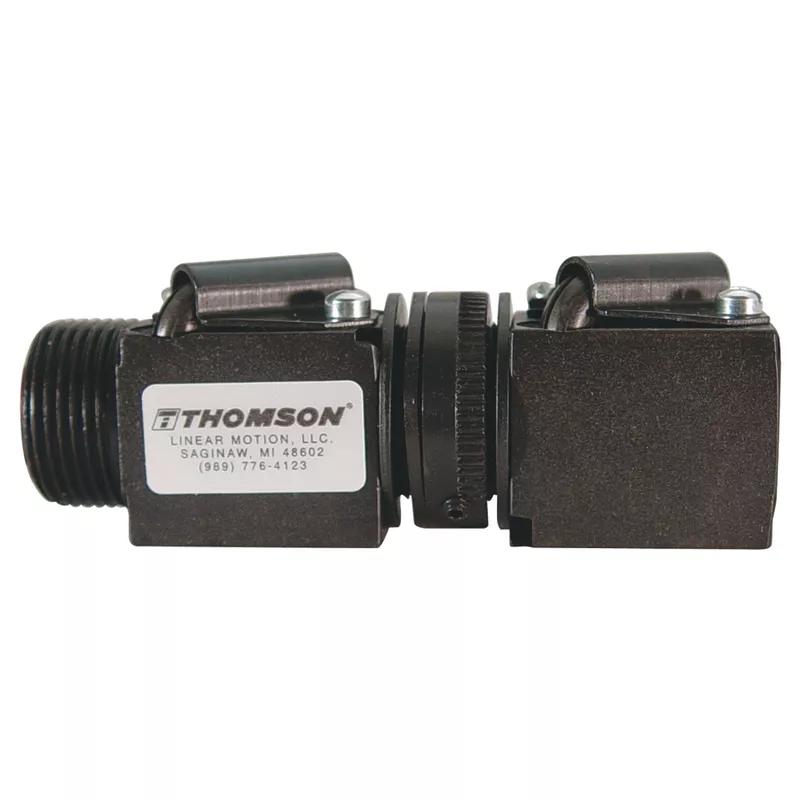

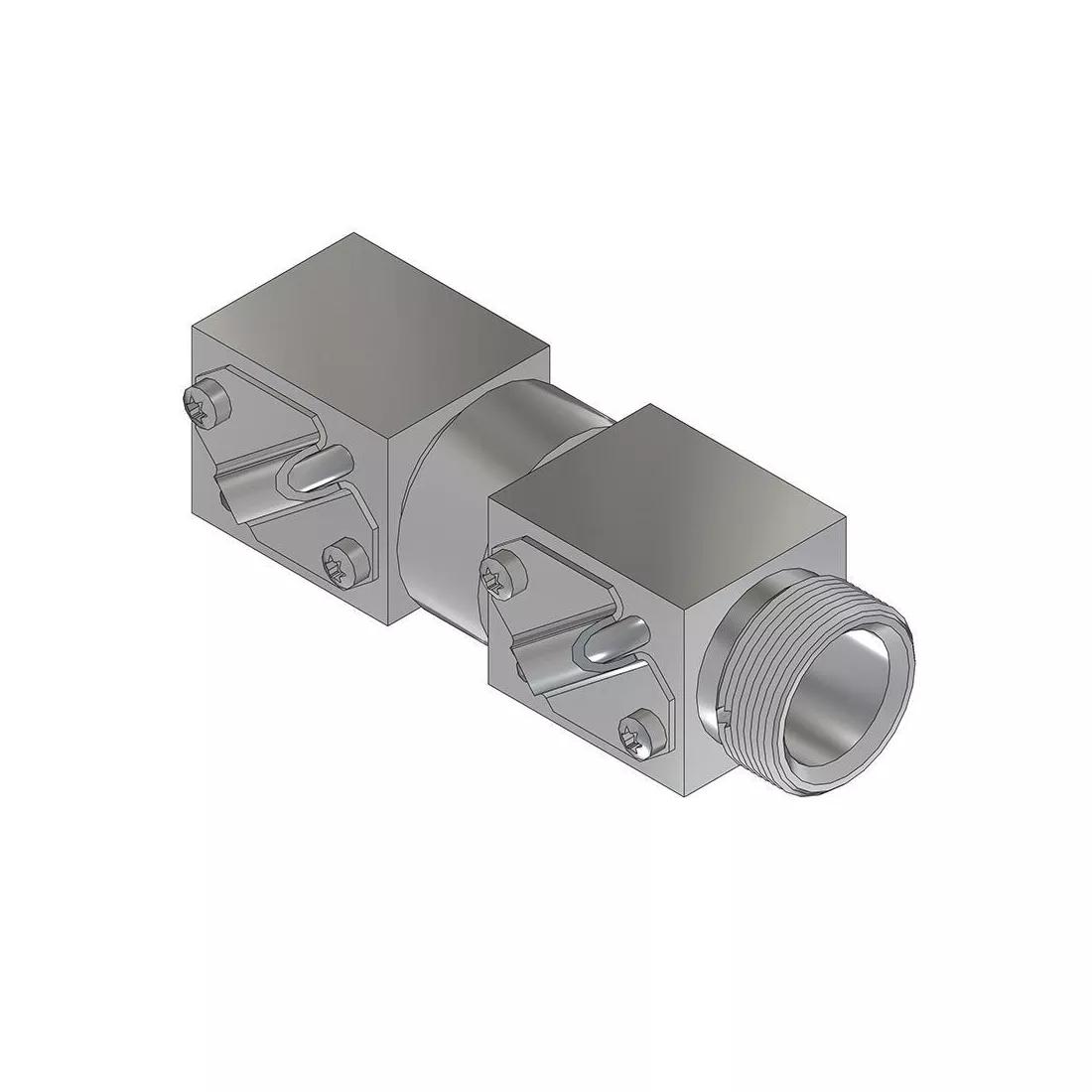

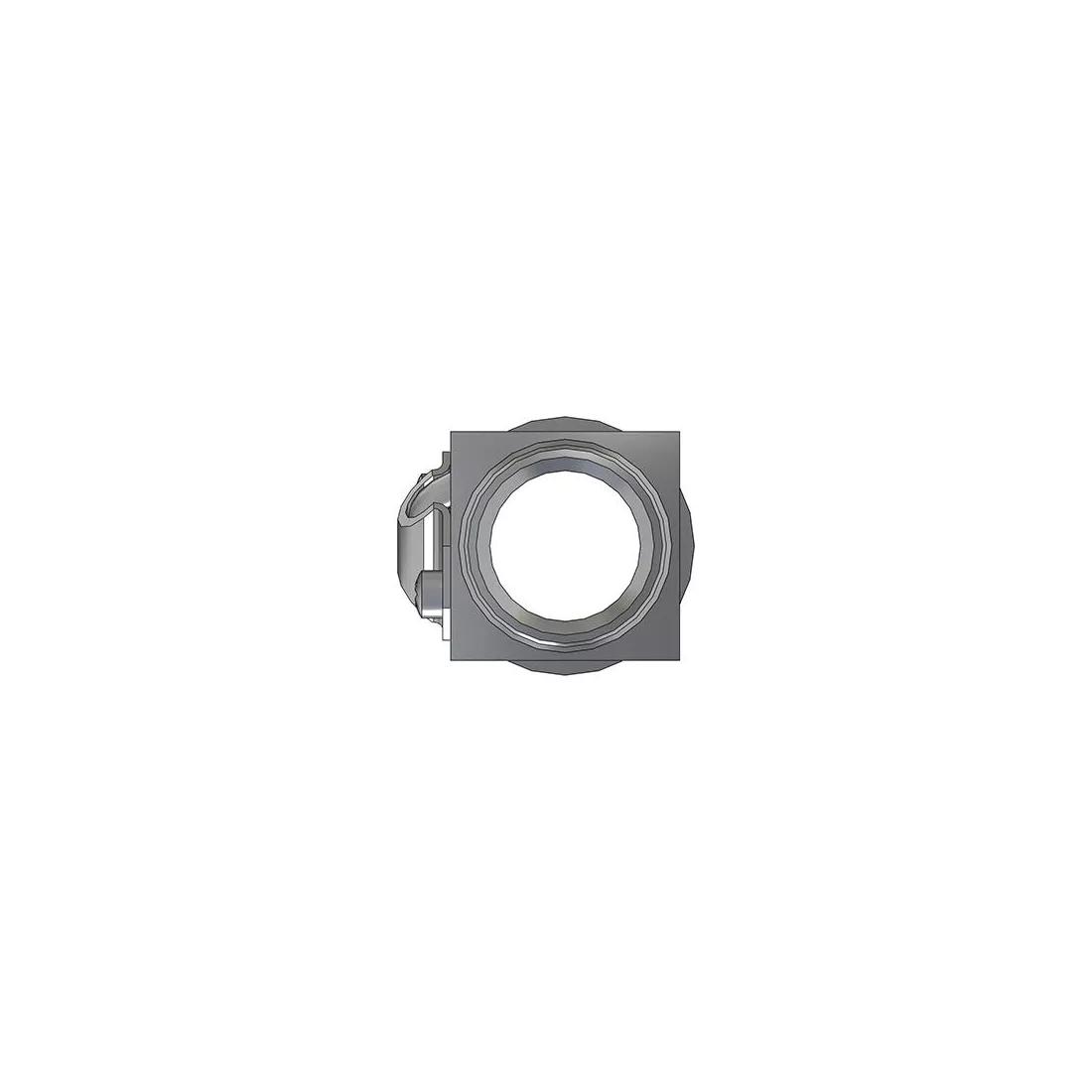

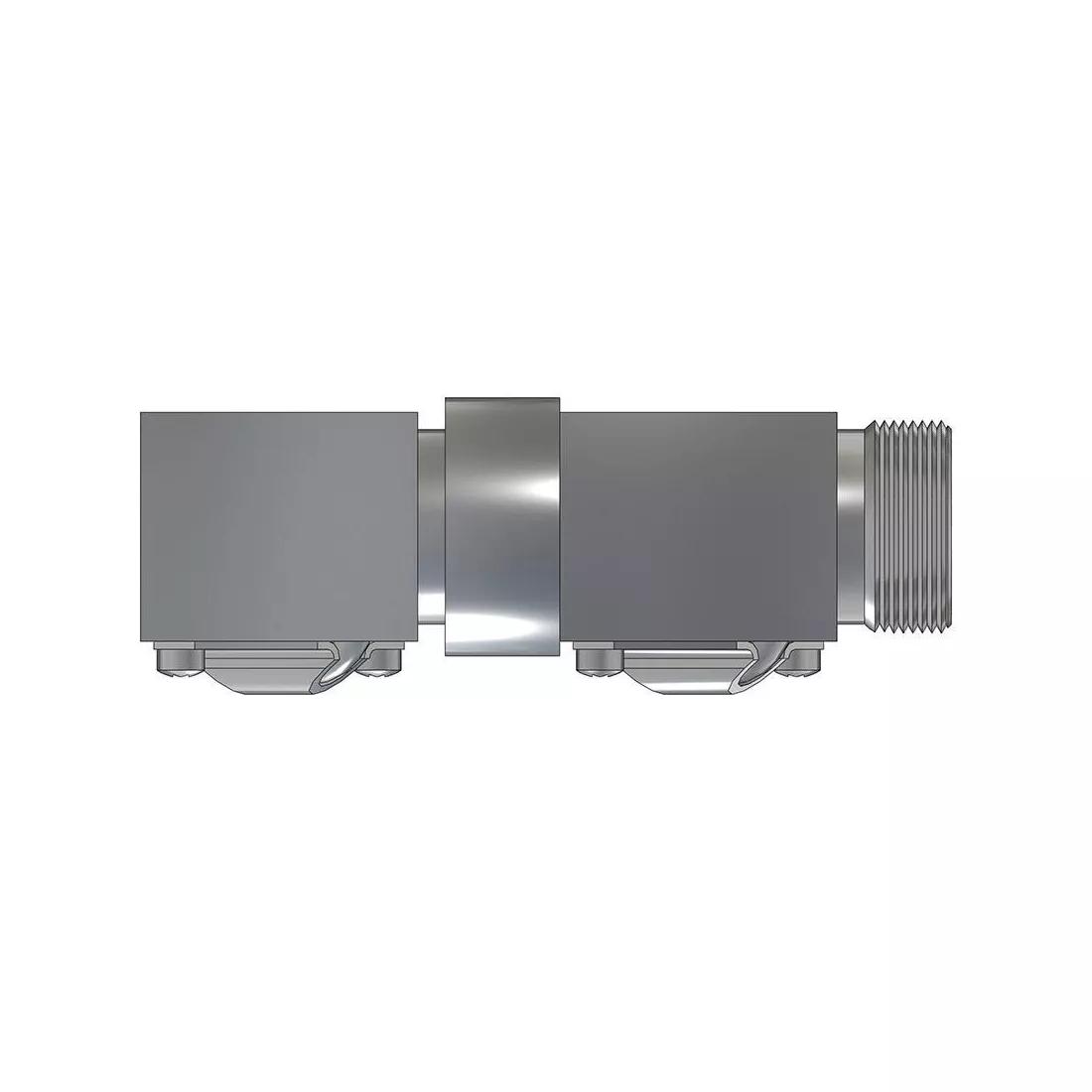

Sqaure Ball Nut; Ball Circle Diameter=16 mm, Lead Length=5.1 mm
This ball nut is made of carburized steel with ball tracks heat treated to RC 58-60, with a overall length of 3.510 in Manufacturer Part Number: 8106-448-015
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Thomson Linear |
|---|---|
| Manufacturer Part Number | 8106-448-015 |
| Type | Ball & ACME Screws |
| Dynamic Load Capacity | 778 lbf |
| Ball Circle Diameter | 16 mm |
| Overall Diameter | 1.410 in |
| Overall Length | 3.510 in |
| Lead Length | 5.1 mm |
| Square Dimensions | 1.000 x 1.000 in |
| Material | Steel |
