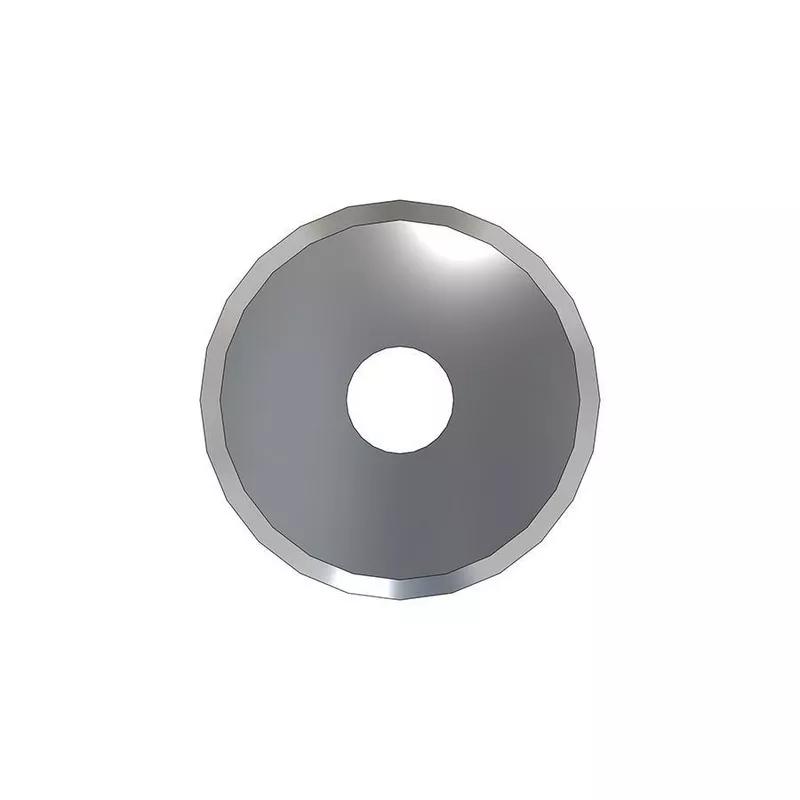

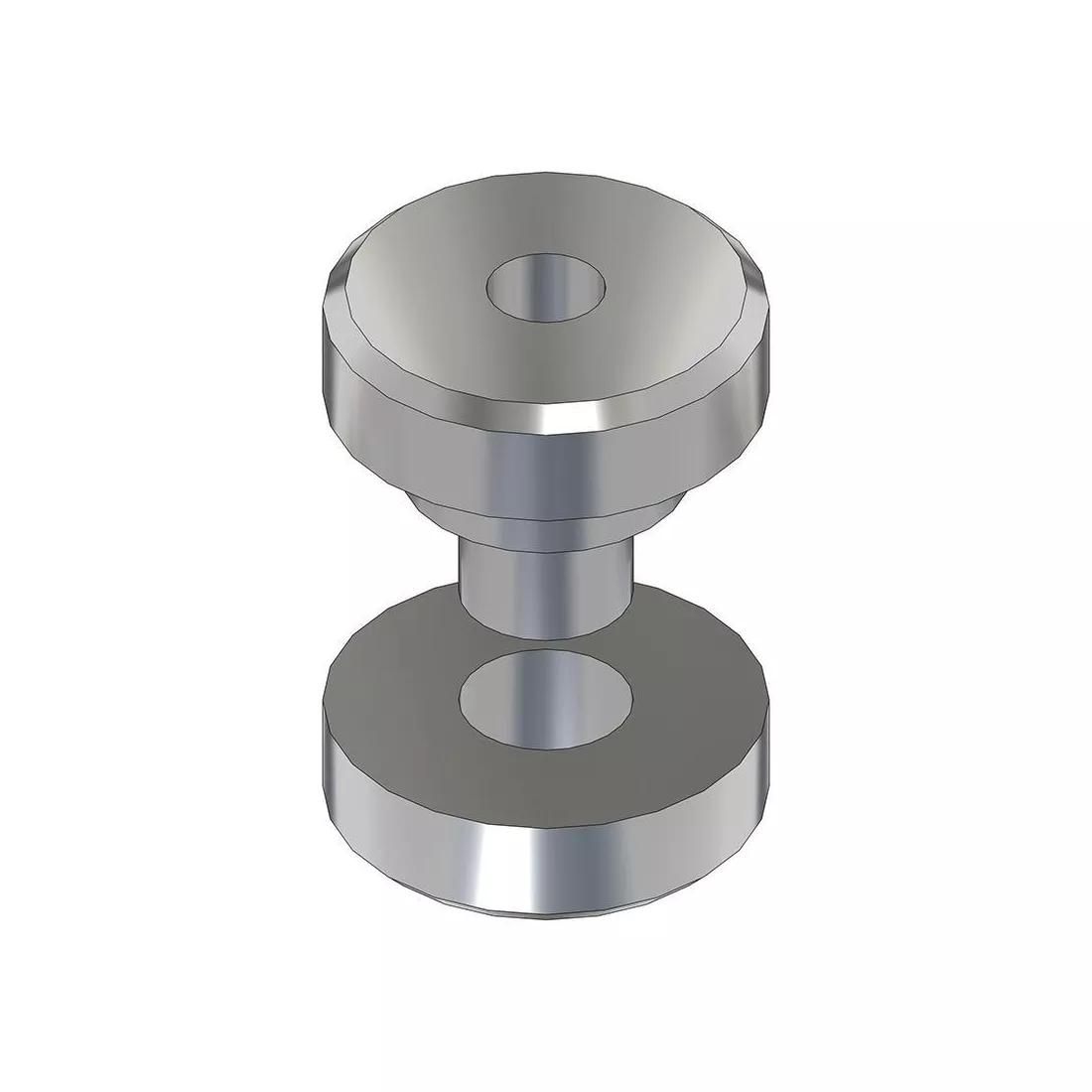

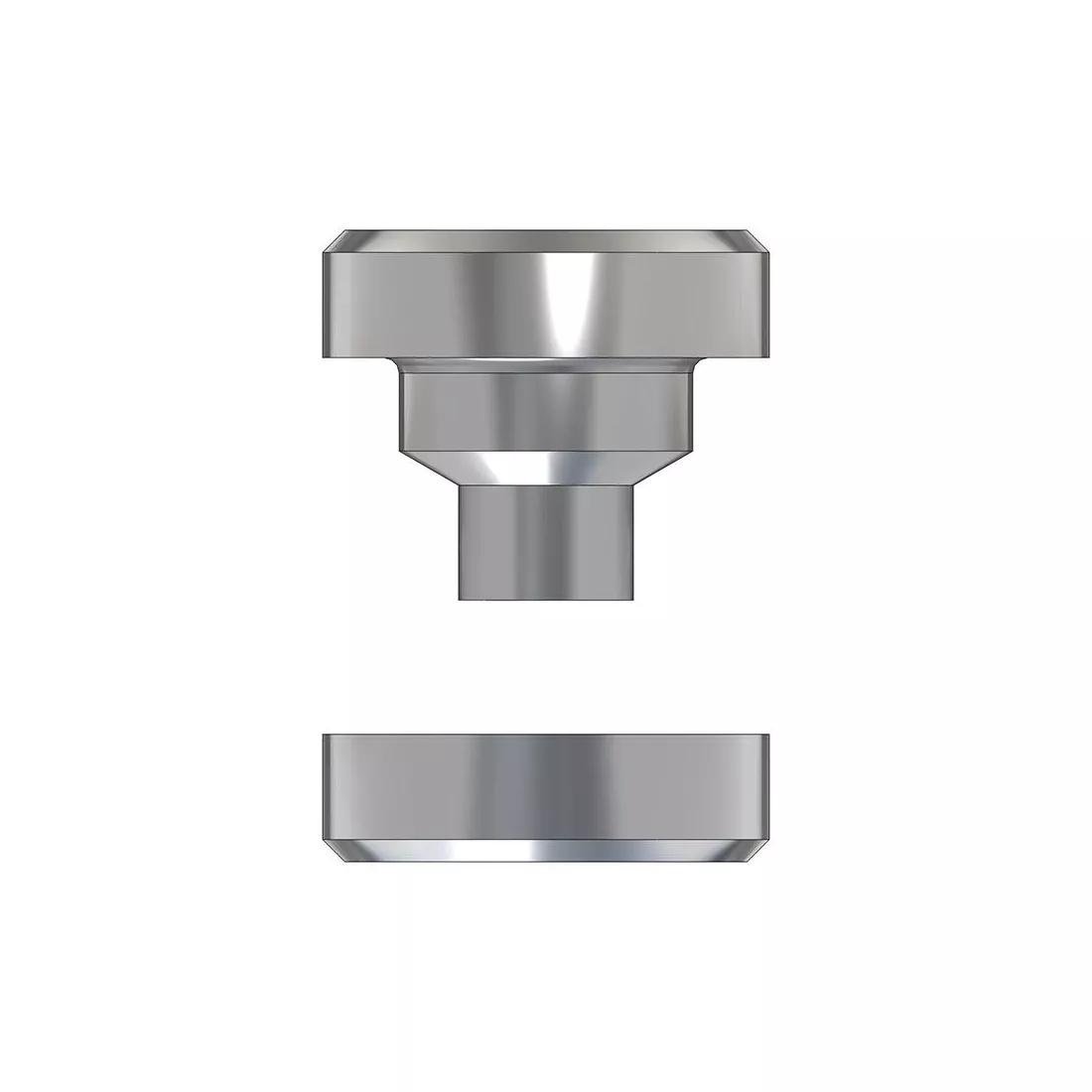

Bonded Mount; Base Diameter=58.4 mm | 2.300 in, , Flange Diameter=88.9 mm | 3.50 in
50 Durometer Neoprene Two Piece Center Bonded Mount fits diameter holes in 1.00 in thick panels to protect against shock and vibration. Manufacturer Part Number: K1905A52
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Reid Select |
|---|---|
| Manufacturer Part Number | K1905A52 |
| Base Diameter | 2.300 in |
| Compatible Bolt Size | 0.875 in |
| Flange Height | 1.000 in |
| Height | 2.900 in |
| Hole Diameter | .938 in |
| Panel Thickness | 1.00 in |
| Pin Diameter | 1.37 in |
| Radius | .12 in |
| Material | 50 Durometer Neoprene |
| Type | Bonded Mounts |
