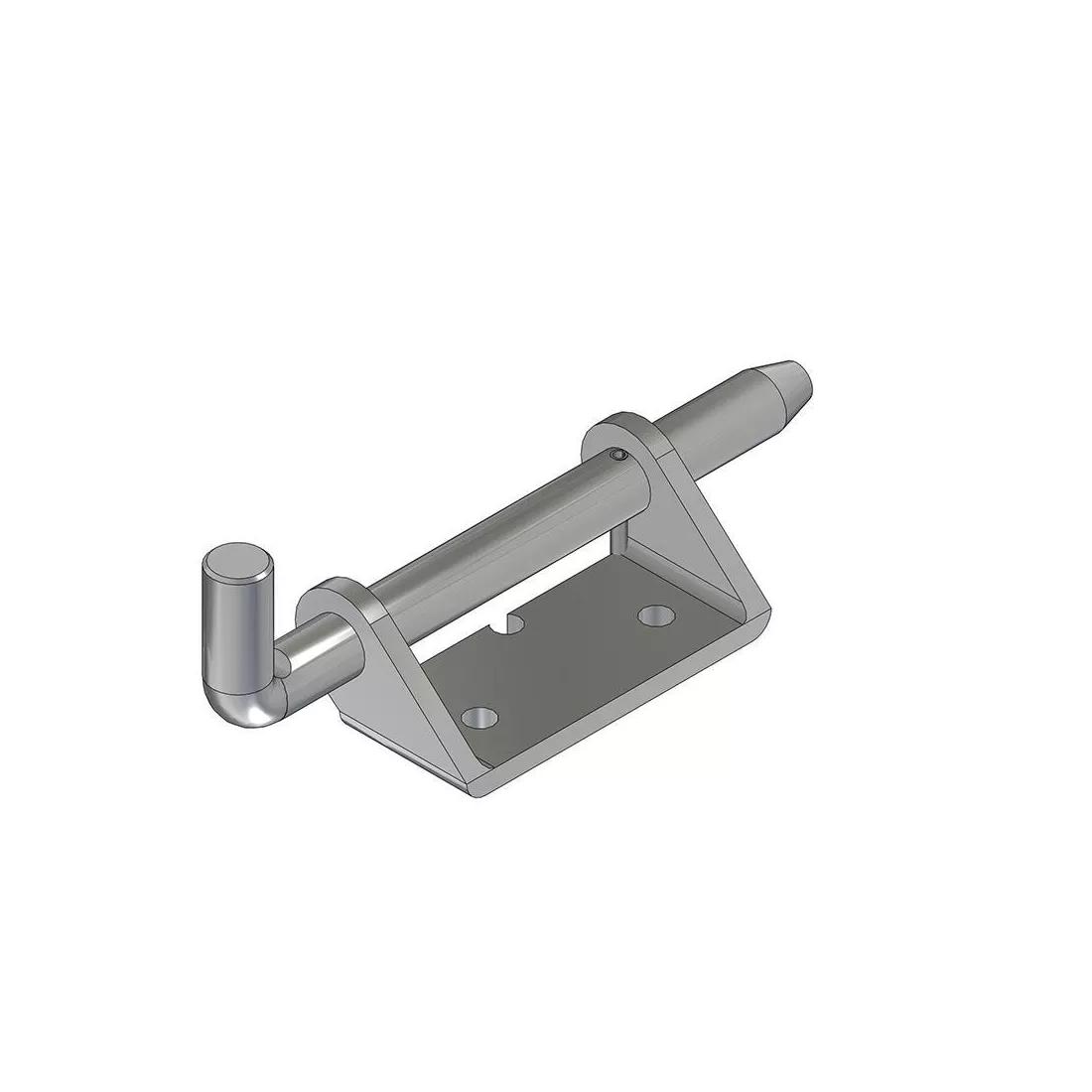

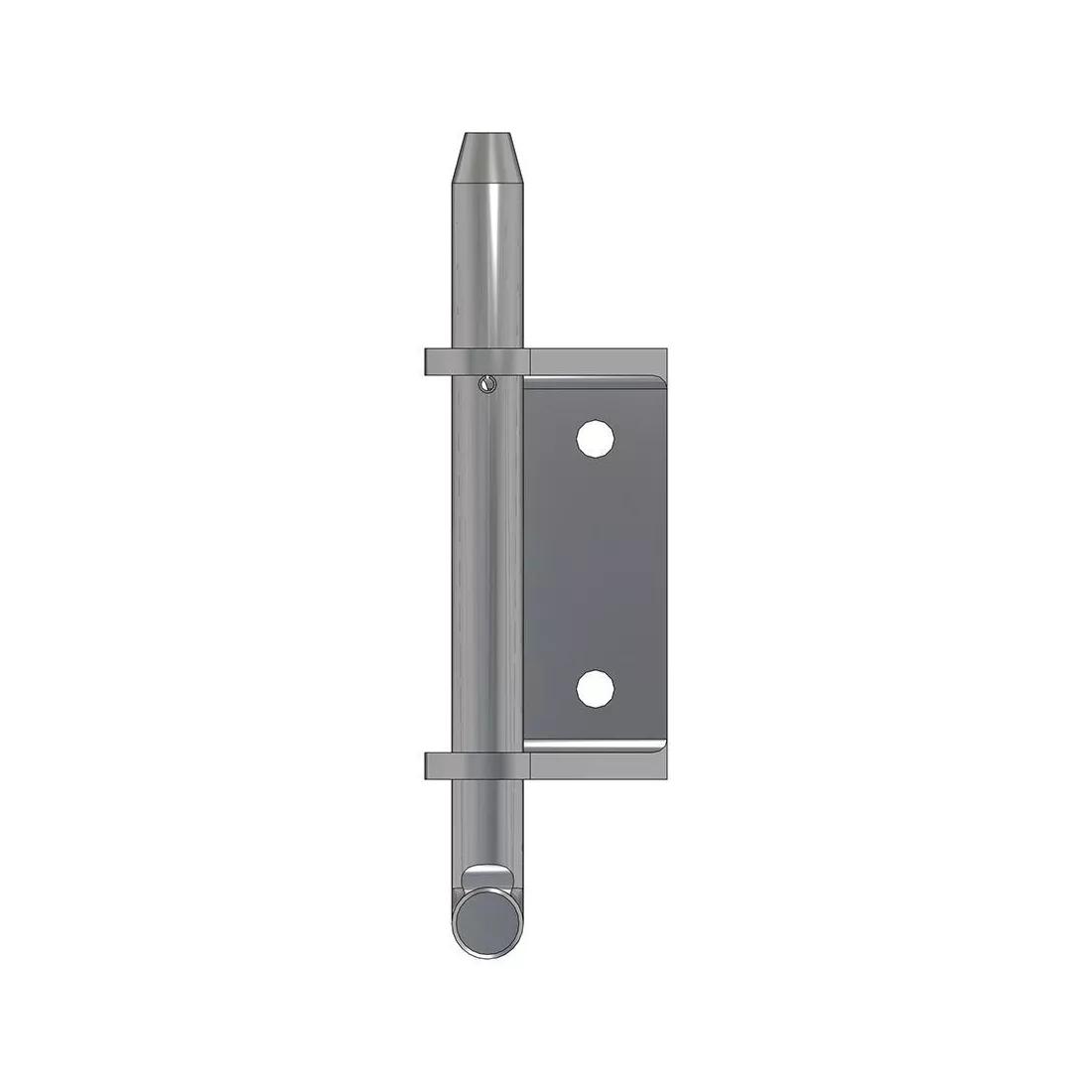

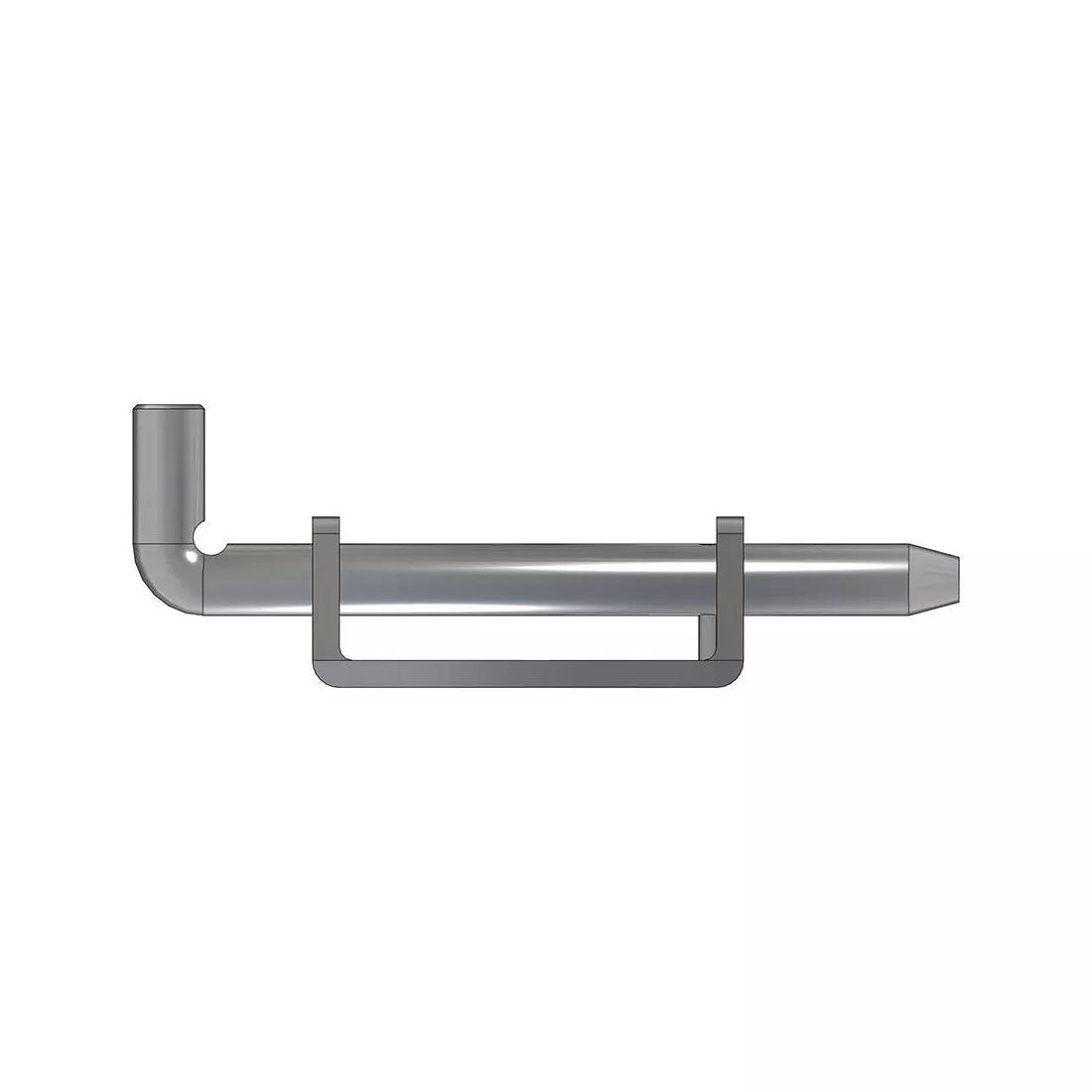

Concealed Hinge - Overall Length - 152.4 mm | 6.000 in ; Maximum Rotation - 180 ° ; ; Pin Diameter - 12.7 mm | 0.500 in
HG-9273 Manufacturer Part Number: 9297RH-32
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $68.32 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Reid Select |
|---|---|
| Manufacturer Part Number | 9297RH-32 |
| Leaf Thickness | 0.185 in |
| Overall Leaf Length | 3.000 in |
| Overall Length | 6.000 in |
| Overall Width | 1.250 in |
| Pin Diameter | 0.500 in |
| Body Material | Stainless Steel |
| Material | Stainless Steel |
| Mounting Method | Screw |
| Mounting Orientation | Right-Handed |
| Pin Material | Stainless Steel |
| Removability | Removable |
