Fixture Blocks & Plates

Currently out of stock. Click here for lead time. Include your part number and qty.

Built to reduce design and detail time, CMM fixture blocks and plates provide a work base with a combination of standard size mounting holes for positioning.

Need a quote?

For large volumes and non-standard products, add to your cart and click request a quote. You may also call 800 253 0421 or email sales@reidsupply.com. We respond to most quotes within 4 working hours. (Business hours are Monday through Friday, 7:30 am to 6:00 pm ET)

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Product SKUs information
Item Code Price range Availability Special Offer Hole Configuration Overall Height Hole Orientation Brand Buy
RB00-312-CPCPS
$97.65 - $97.65 Currently out of stock. Click here for lead time. Include your part number and qty.
4X x 4Y
1.250 in
Horizontal & Vertical
RB02-312-TSCPS
$97.65 - $97.65 Currently out of stock. Click here for lead time. Include your part number and qty.
4X x 4Z
1.250 in
Horizontal & Vertical

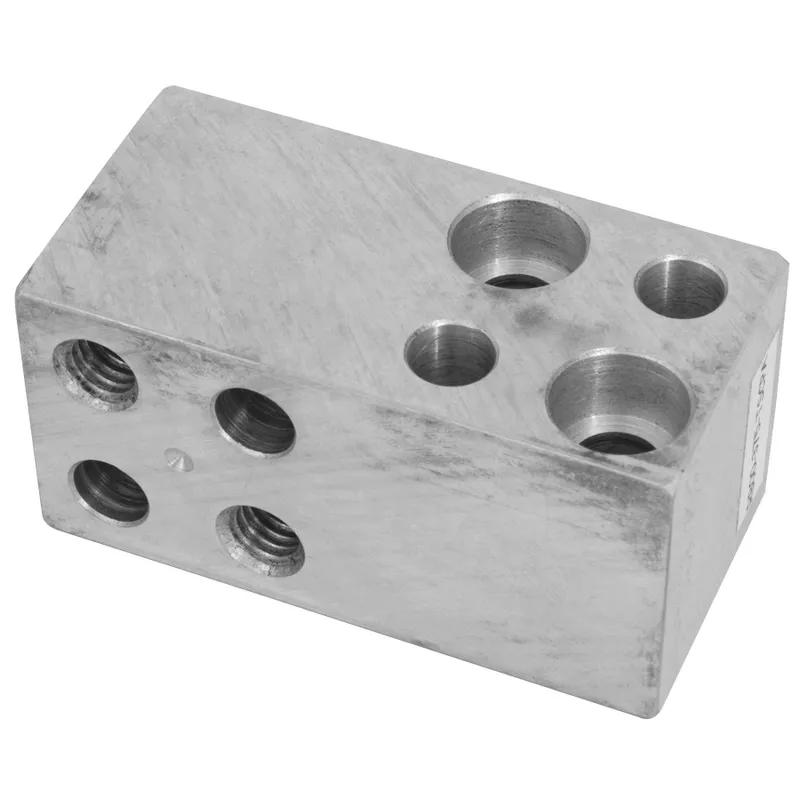

Fixture Plate; Hole Configuration=4X x 4Y, Hole Orientation=Horizontal & Vertical, Overall Height=31.8 mm | 1.250 in

RB00-312-CPCPS

Price Range
$97.65 - $97.65

Stock Levels
Currently out of stock. Click here for lead time. Include your part number and qty.
Attributes
  • Hole Configuration
    4X x 4Y
  • Hole Orientation
    Horizontal & Vertical
  • Overall Length
    2.500 in
  • Overall Width
    1.250 in
  • Overall Height
    1.250 in
Fixture Plate; Hole Configuration=4X x 4Z, Hole Orientation=Horizontal & Vertical, Overall Height=31.8 mm | 1.250 in

RB02-312-TSCPS

Price Range
$97.65 - $97.65

Stock Levels
Currently out of stock. Click here for lead time. Include your part number and qty.
Attributes
  • Hole Configuration
    4X x 4Z
  • Hole Orientation
    Horizontal & Vertical
  • Overall Length
    2.500 in
  • Overall Width
    1.250 in
  • Overall Height
    1.250 in
