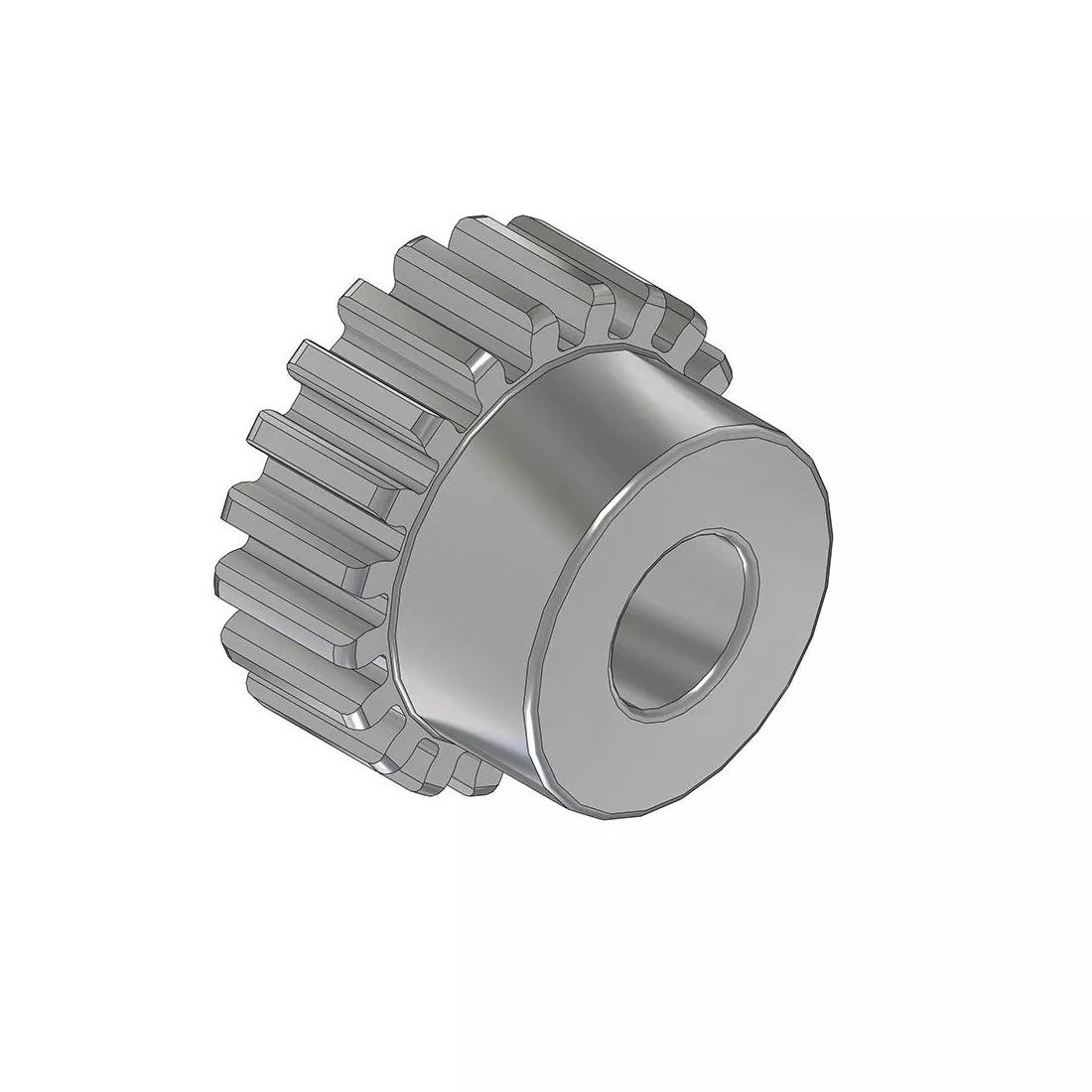

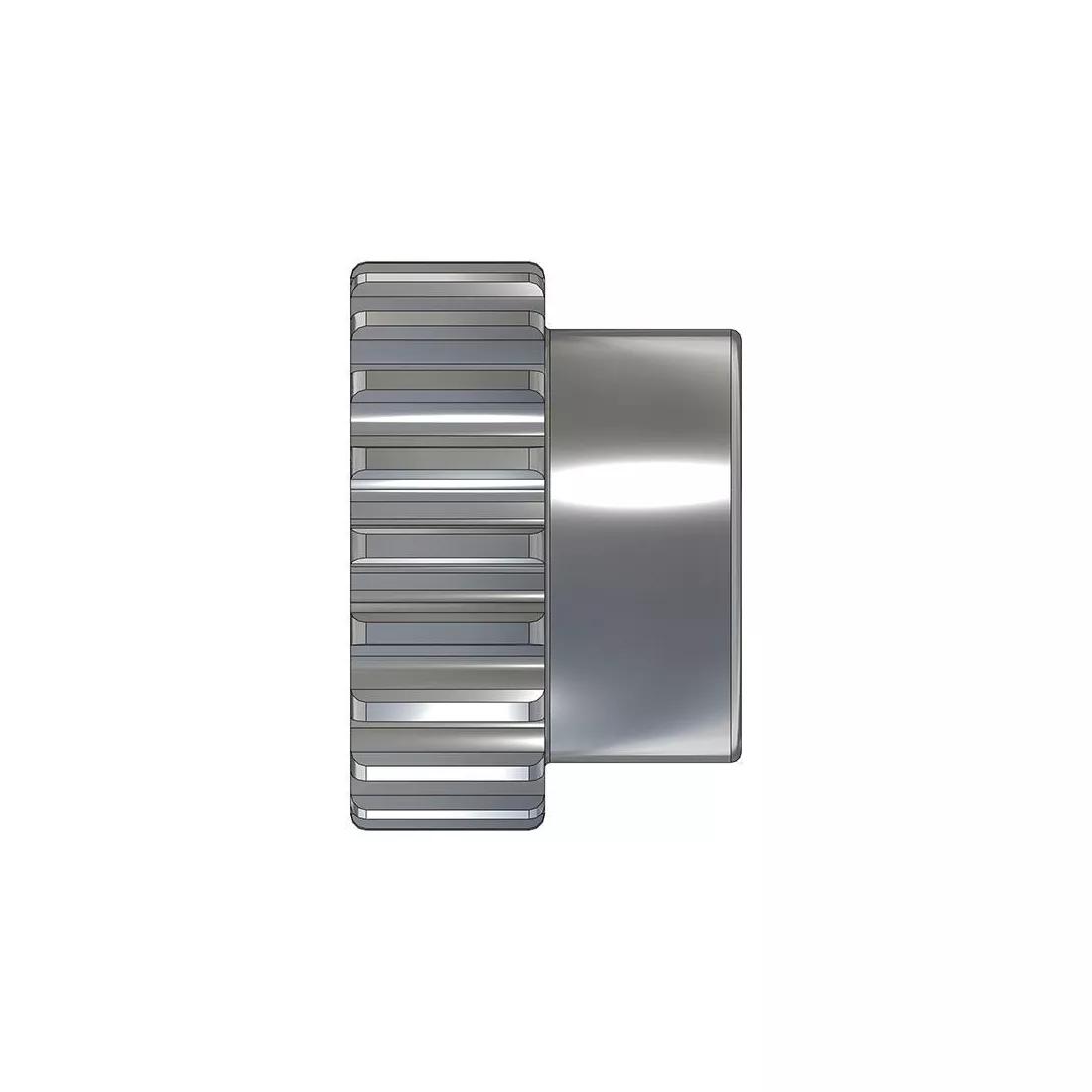

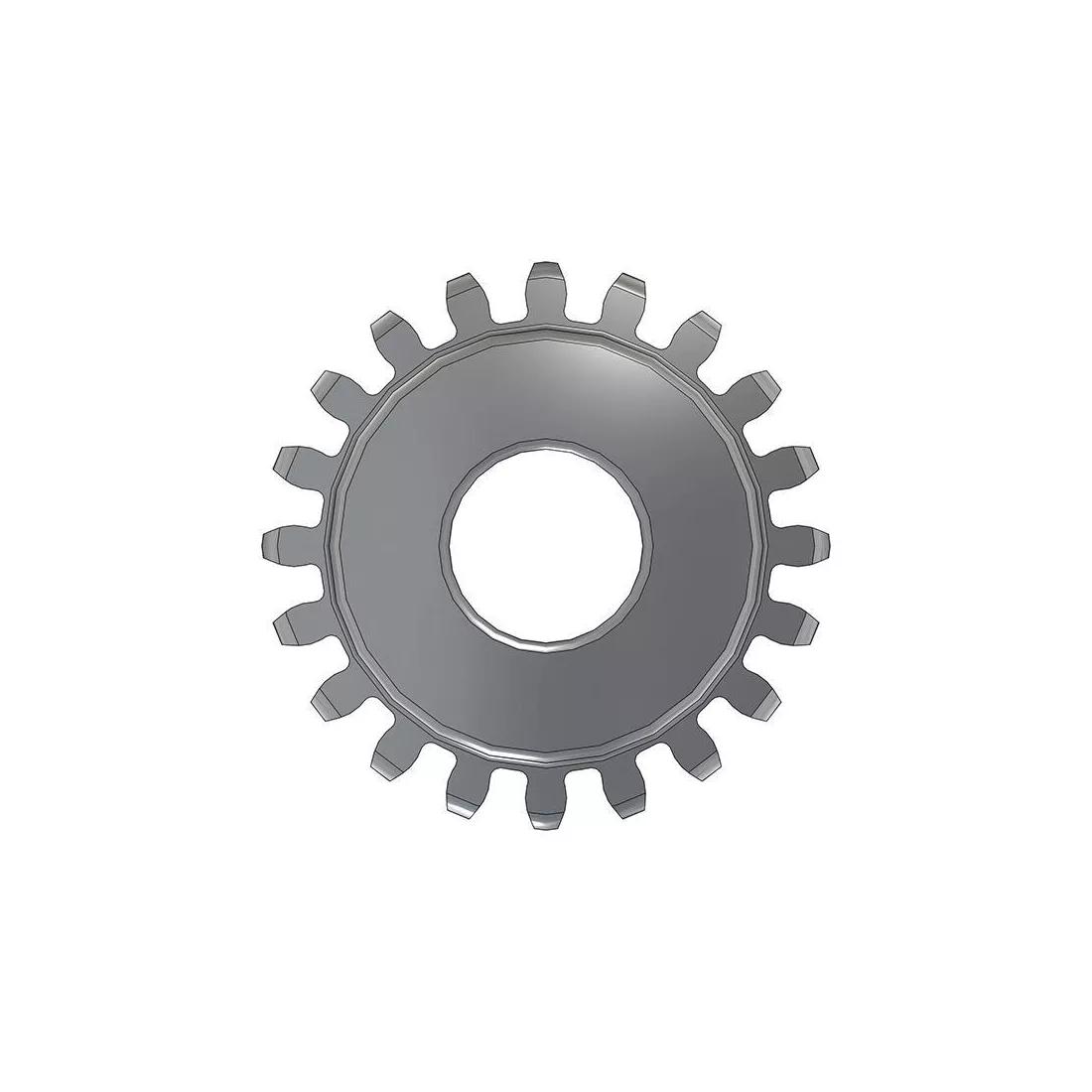

Gear; Spur Gear, Bore Diameter=9.5 mm | 0.375 in, Pitch Diameter=25.4 mm | 1.000 in
N/A Manufacturer Part Number: NA20B
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Boston Gear |
|---|---|
| Manufacturer Part Number | NA20B |
| Gear Type | Spur Gear |
| Bore Diameter | 0.375 in |
| Outside Diameter | 1.100 in |
| Hub Diameter | .840 in |
| Pitch Diameter | 1.000 in |
| Tooth Pitch | 20 |
| Number of Teeth | 20 |
| Hub Width | 0.380 in |
| Face Width | 0.375 in |
| Overall Width | .755 in |
| Color | Natural |
| Material | Steel |
