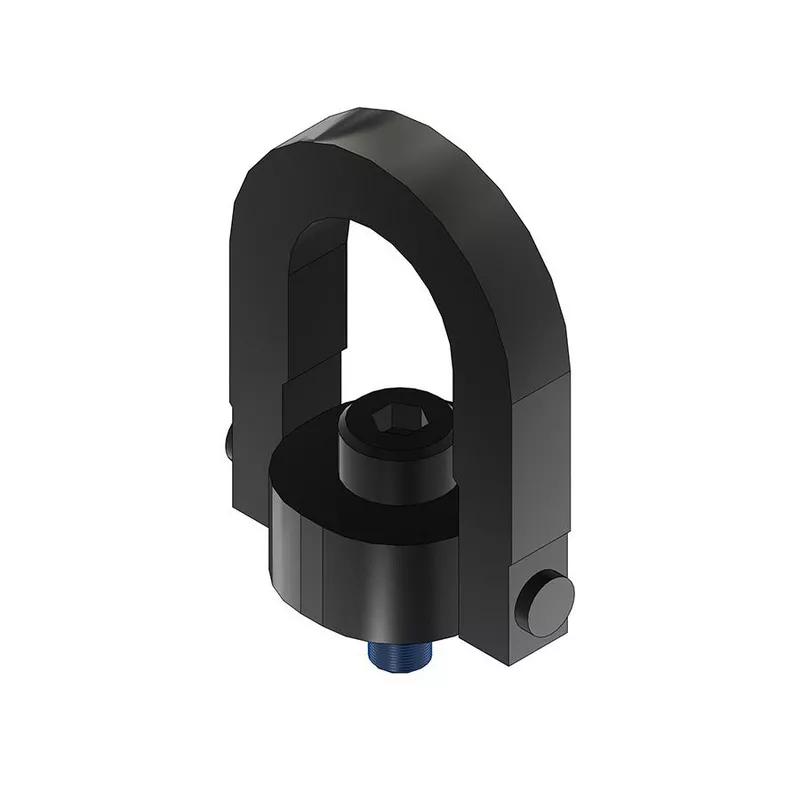

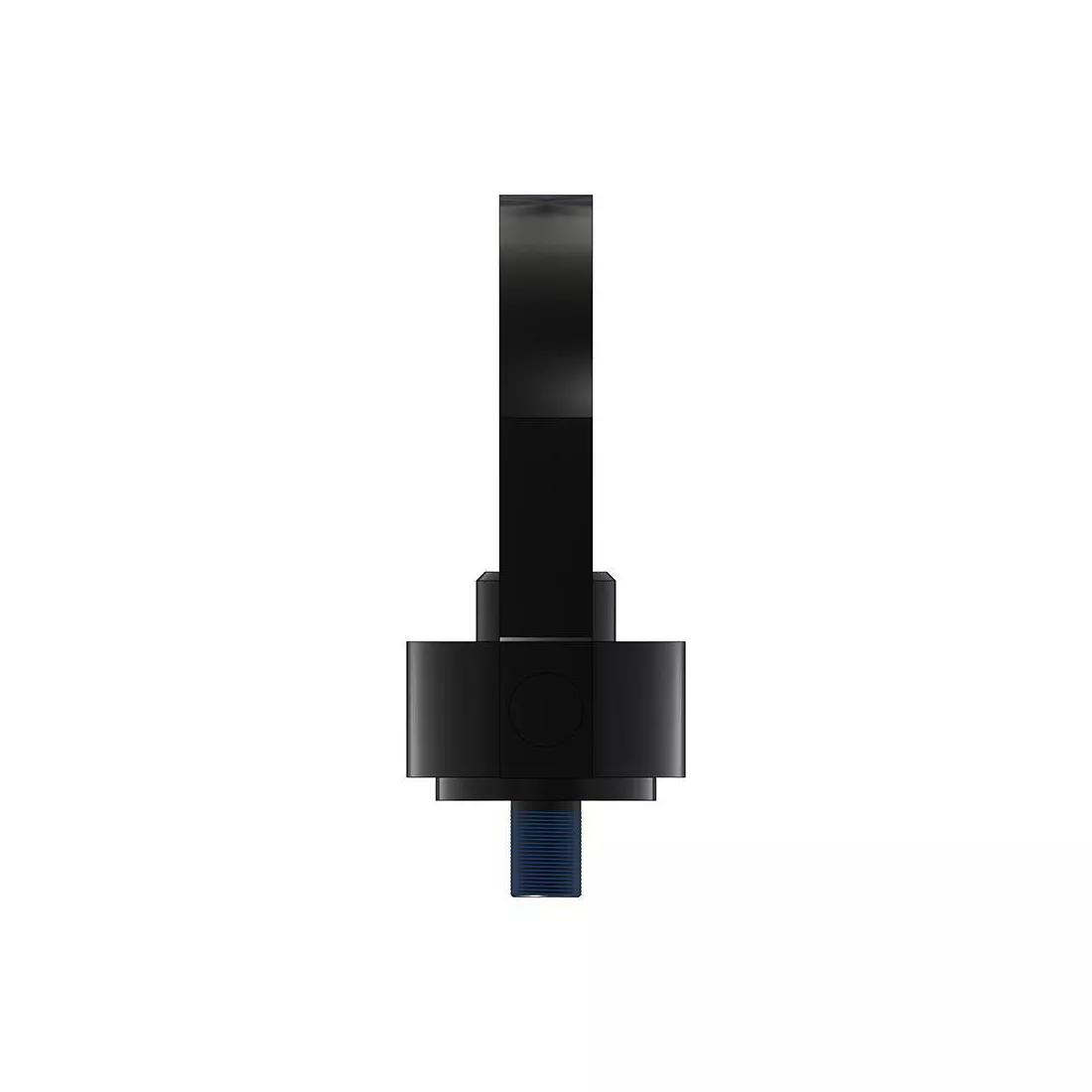

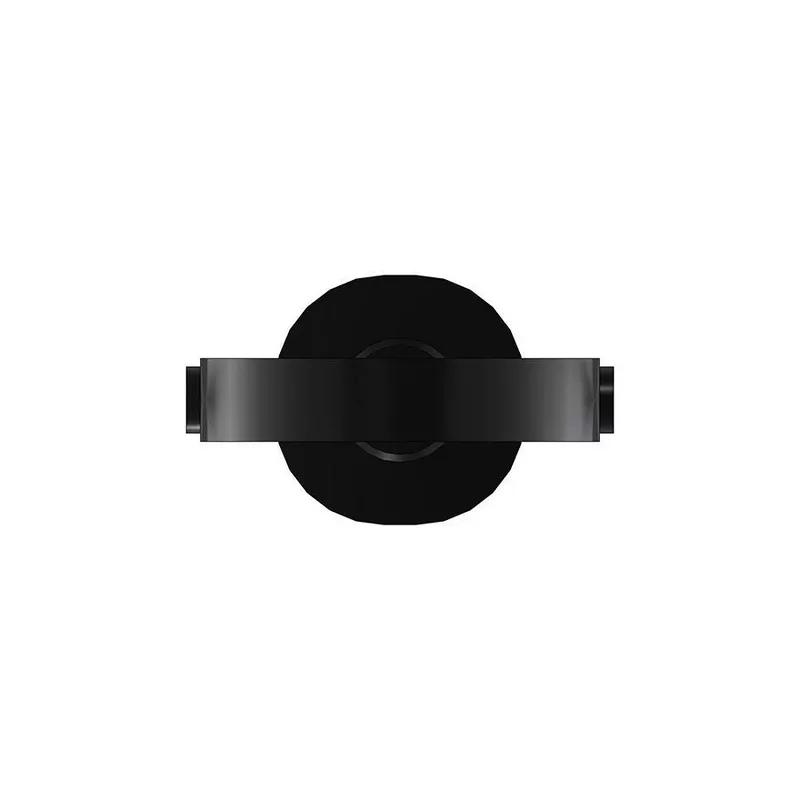

Hoist Ring; Load Capacity - 31137.6 N | 7000 lbf, Torque - 135.6 Nm | 100.0 lb-ft, 23102
Hoist Ring Manufacturer Part Number: 23102
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $270.79 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | American Drill Bushing |
|---|---|
| Manufacturer Part Number | 23102 |
| Load Capacity | 7000 lbf |
| Safety Factor | 5:1 |
| Ring Type | Hoist |
| Base Height | 1.710 in |
| Base Diameter | 3.000 in |
| Ring Diameter | 1.000 in |
| Ring Inside Height | 3.060 in |
| Bolt Length | 1.040 in |
| Thread Size | 3/4-10 |
| Overall Width | 5.140 in |
| Overall Height | 6.520 in |
| Coating | Black Oxide |
