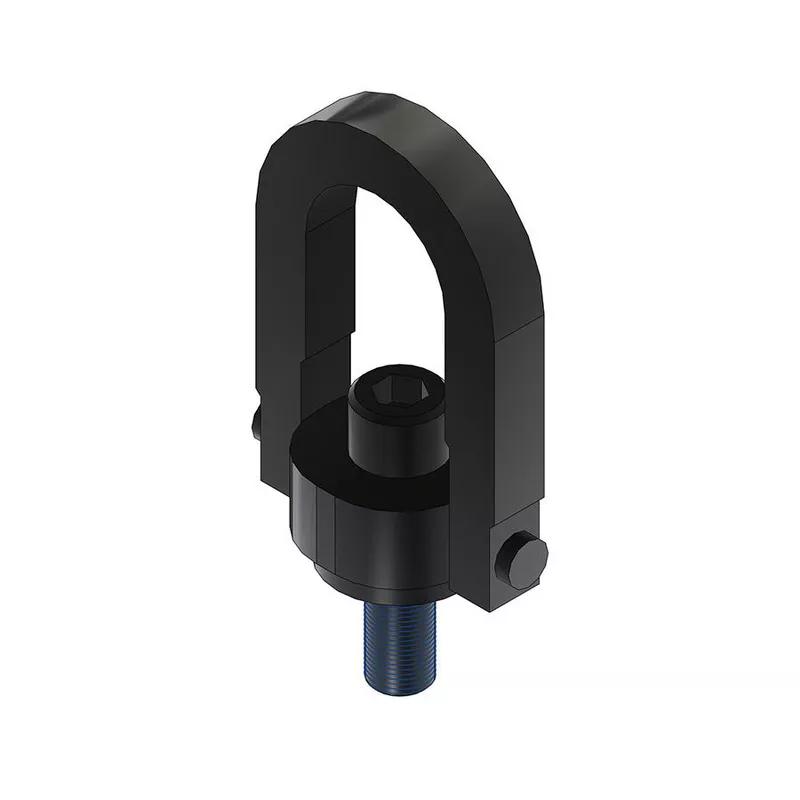

SHR-23301_Isometric Rendering

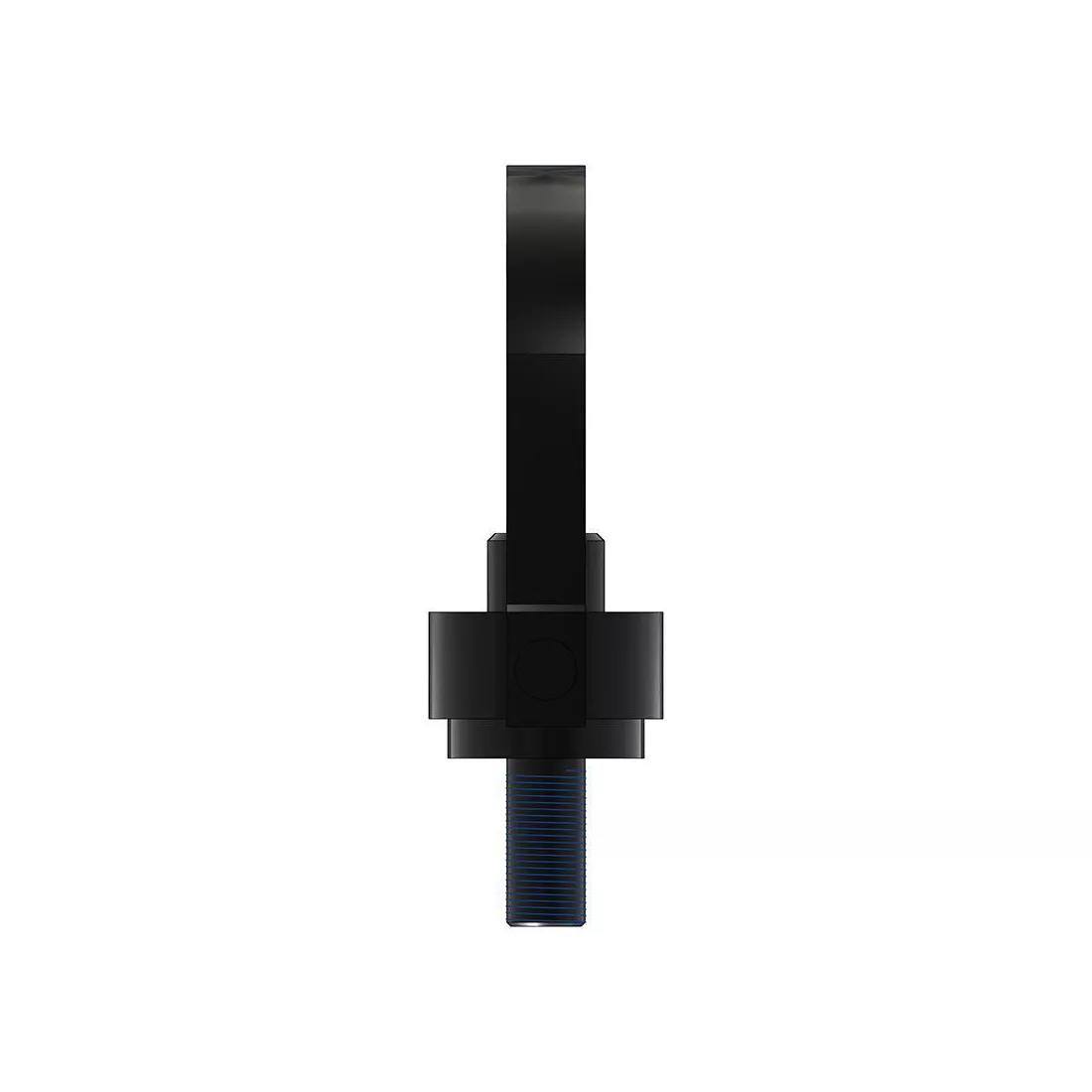

SHR-23301_Right Rendering

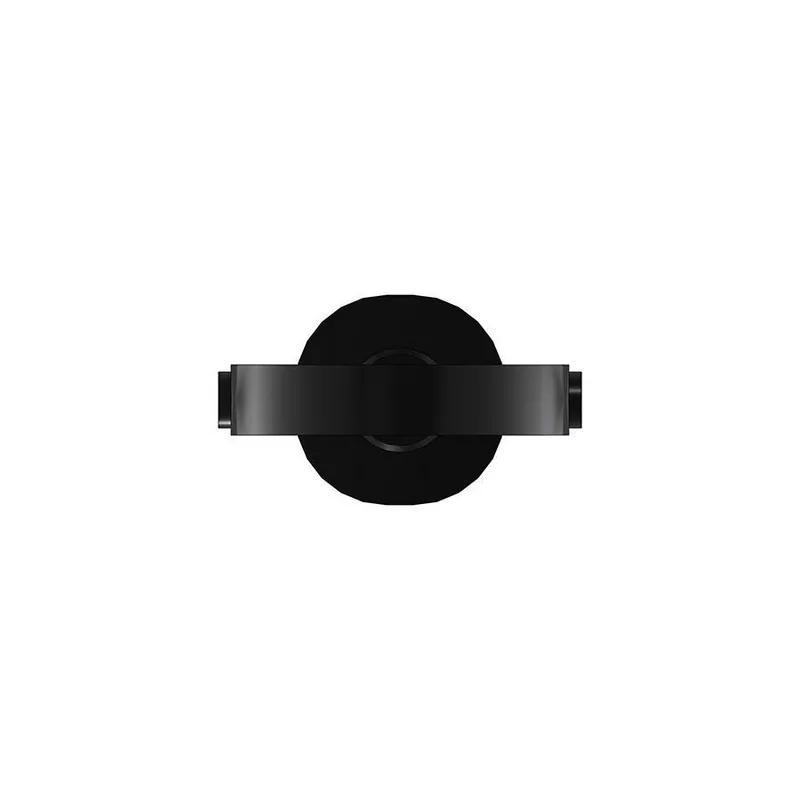

SHR-23301_Top Rendering

Hoist Ring; Load Capacity - 11120.6 N | 2500 lbf, Torque - 38 Nm | 28.0 lb-ft, 23301

Item code:

SHR-23301

1 In stock For more information Delivery & returns

Hoist Ring Manufacturer Part Number: 23301

SKU price information
Quantity	Unit price
1 +	$124.59

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Specifications

Imperial

Metric

SKU attributes
Brand	American Drill Bushing
Manufacturer Part Number	23301
Load Capacity	2500 lbf
Load Capacity	11120.6 N
Safety Factor	5:1
Ring Type	Hoist
Base Height	.930 in
Base Height	23.6 mm
Base Diameter	1.490 in
Base Diameter	37.8 mm
Ring Diameter	0.500 in
Ring Diameter	12.7 mm
Ring Inside Height	1.840 in
Ring Inside Height	46.7 mm
Bolt Length	1.070 in
Bolt Length	27.2 mm
Thread Size	1/2-13
Overall Width	65.5 mm
Overall Width	2.580 in
Overall Height	95.8 mm
Overall Height	3.770 in
Coating	Black Oxide
