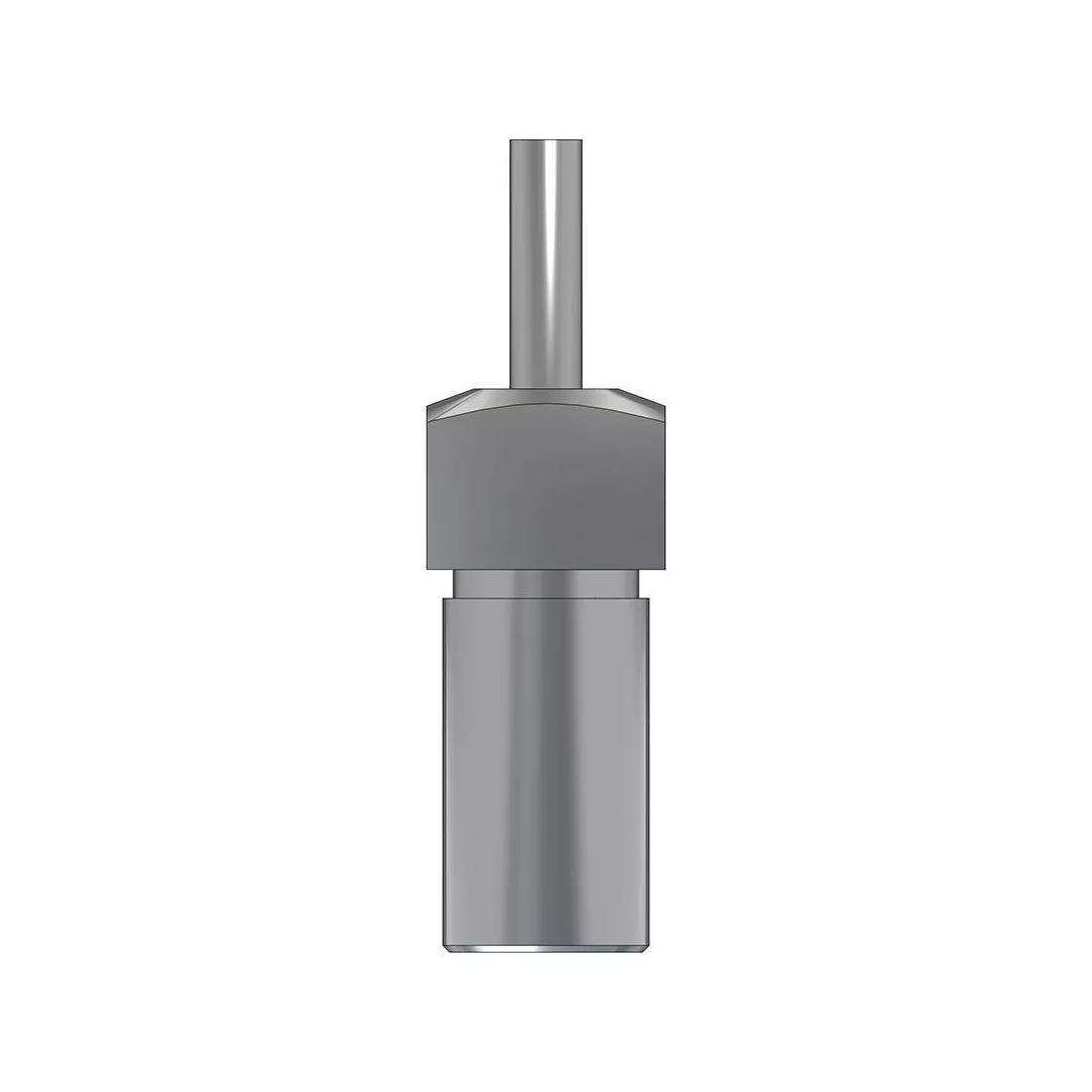

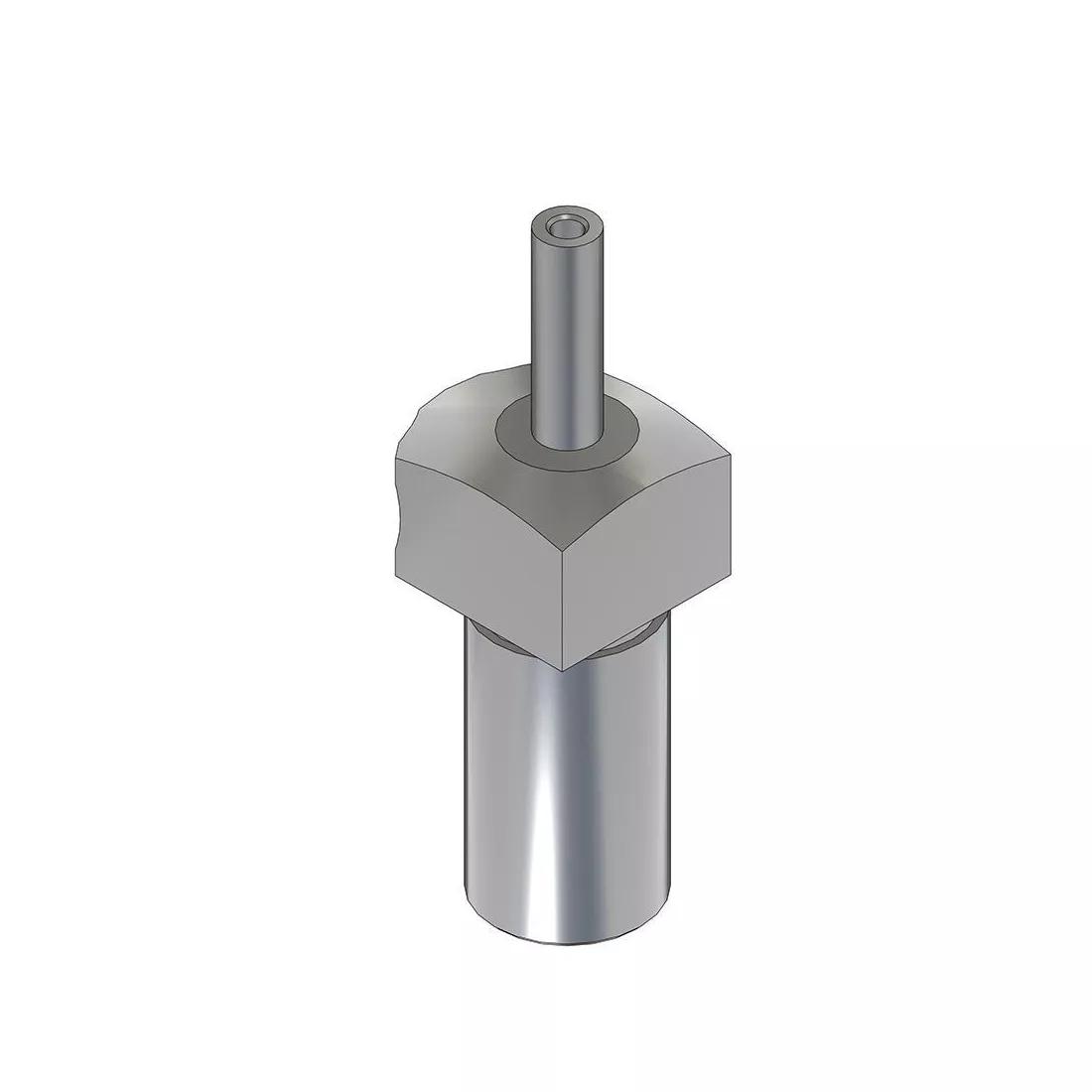

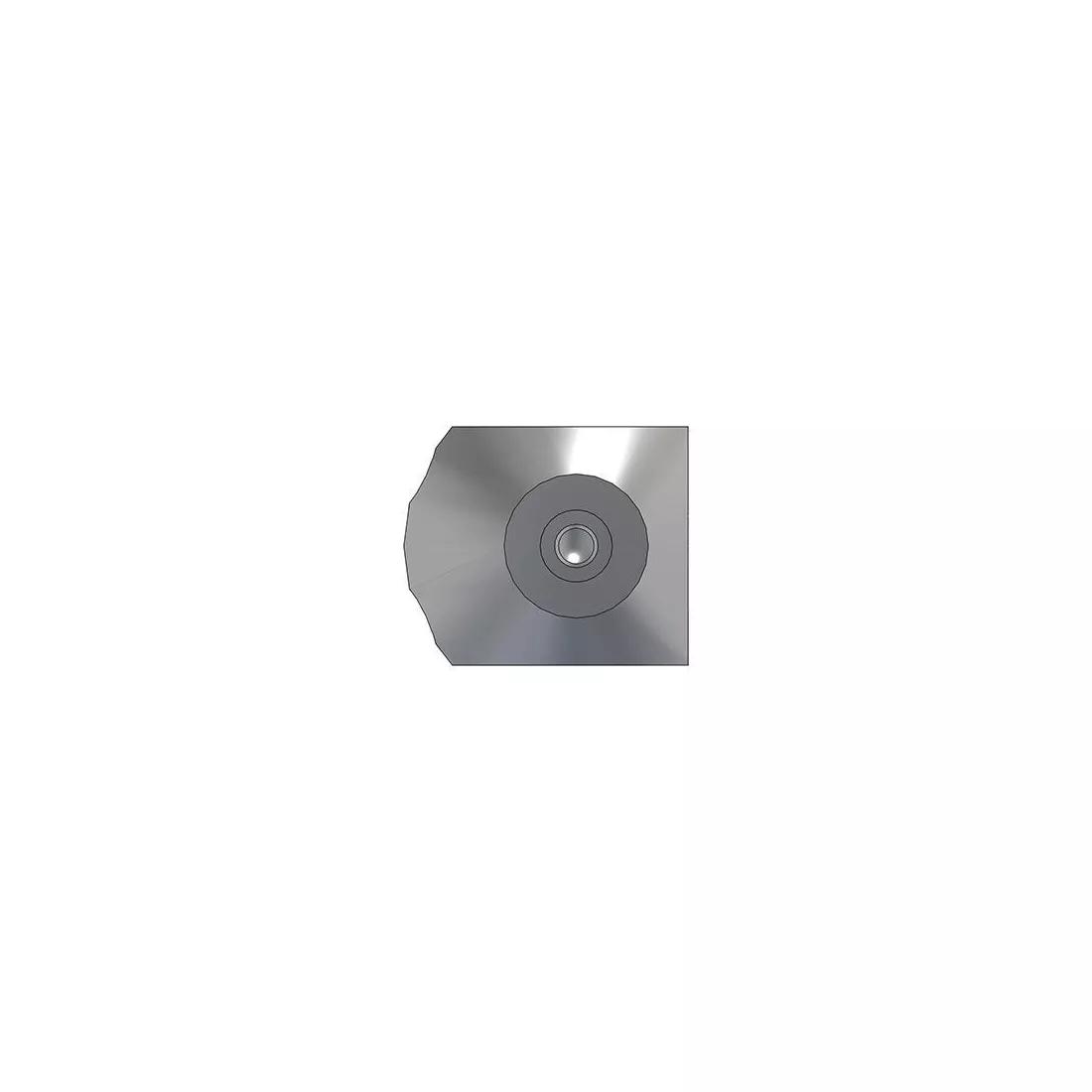

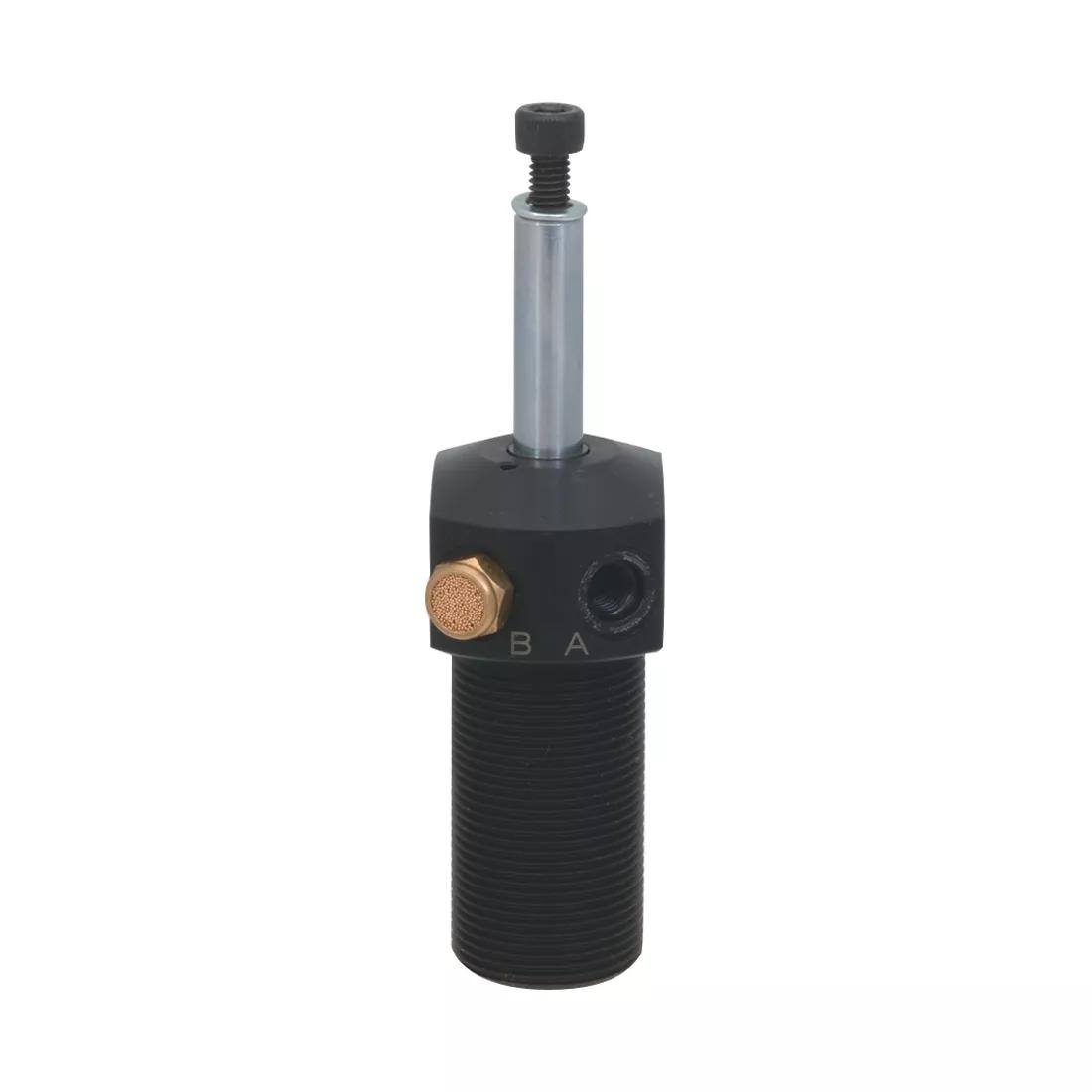

Hydraulic Cylindrical Swing Clamps; Holding Capacity=2112.9 N | 475 lbf, Stroke Length=16.5 mm | 0.65 in, Port Thread Size=#2
Right SwingPull 1-1/8-16 Threaded Body;Upper Flange Single Action Hydraulic Swing Clamp has a .65 in stroke length and 475 lbs clamping force. Manufacturer Part Number: 030-1-S-475-R
| Quantity | Unit price |
|---|---|
| 1+ | $727.96 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 030-1-S-475-R |
| Holding Capacity | 475 lbf |
| Stroke Length | 0.65 in |
| Maximum Operating Pressure | 5000 PSI |
| Outside Diameter | 1.125 in |
| Port Thread Size | #2 |
| Body Thread Size | 1-1/8-16 |
| Body Thread Length | 1.930 in |
| Body Style | Threaded Body;Upper Flange |
| Collapsed Height | 4.43 in |
