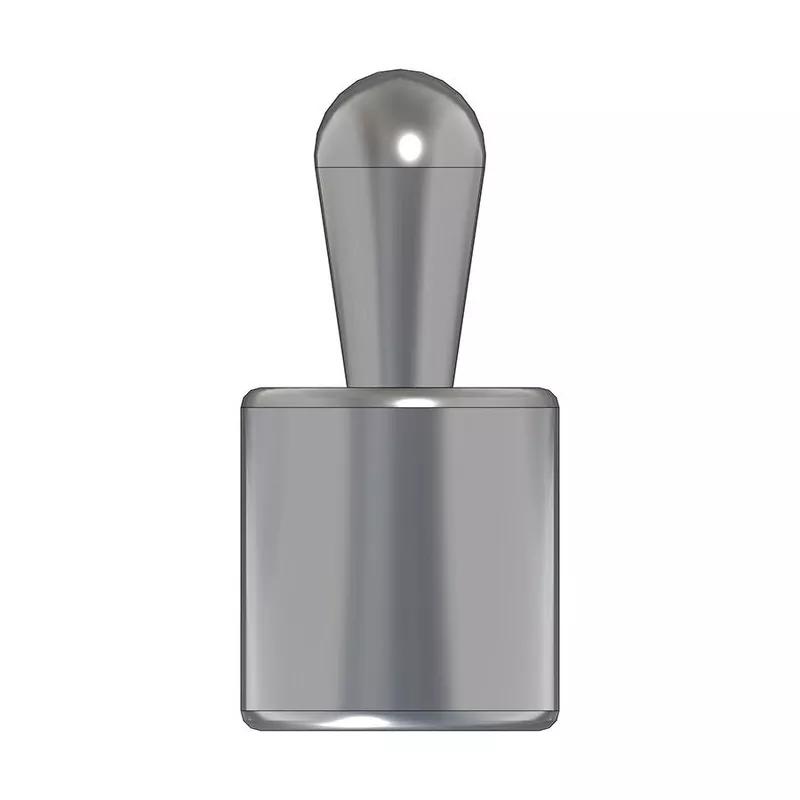

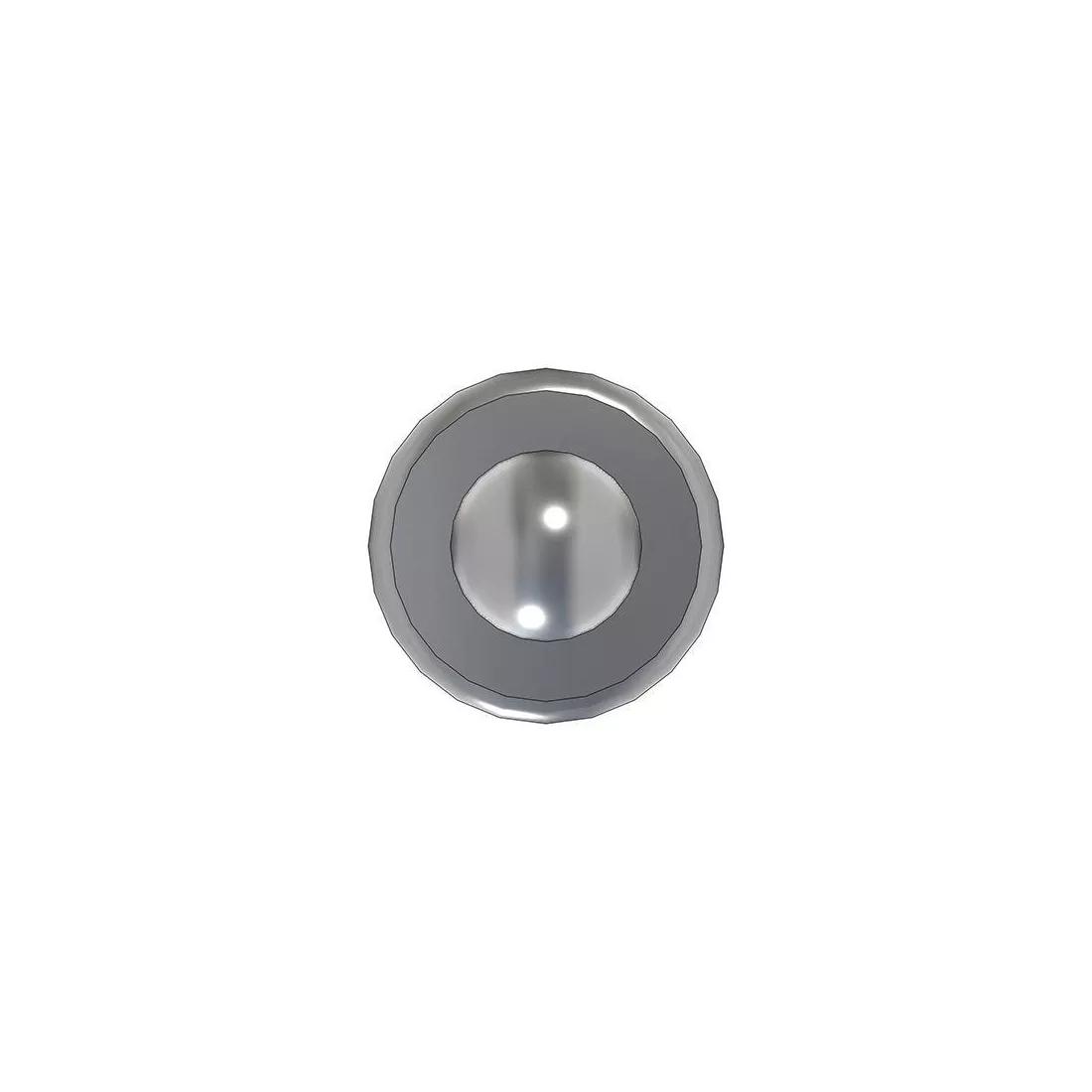

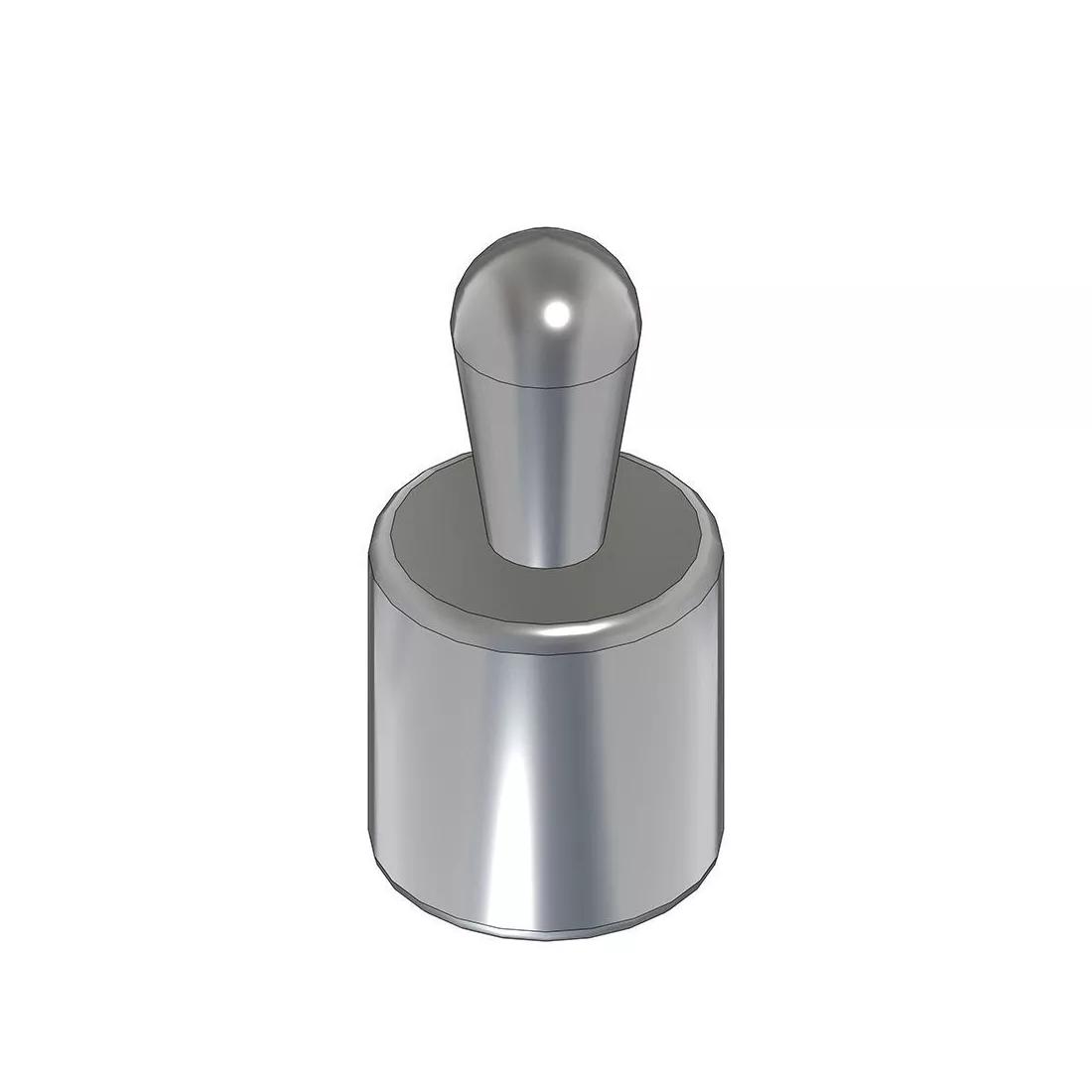

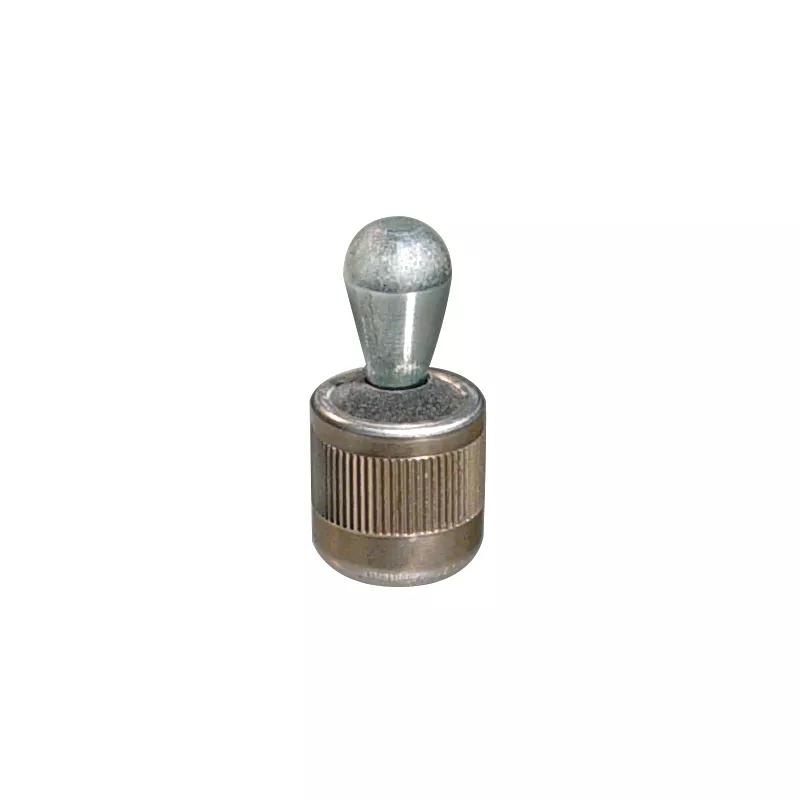

Locating Pin; Body Diameter=11.1 mm | 0.438 in, Nose Diameter=6 mm | 0.236 in
JLP-35 Manufacturer Part Number: 36207
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Type | Locating Pins |
|---|---|
| Holding Force | 9.0 lbs |
| Body Length | 0.472 in |
| Nose Length | .438 in |
| Mounting Hole Diameter | 0.438 in |
| Hole Size Tolerance | +.001/-.000" |
| Manufacturer Part Number | 36207 |
