Locating Screws & Buttons

In stock

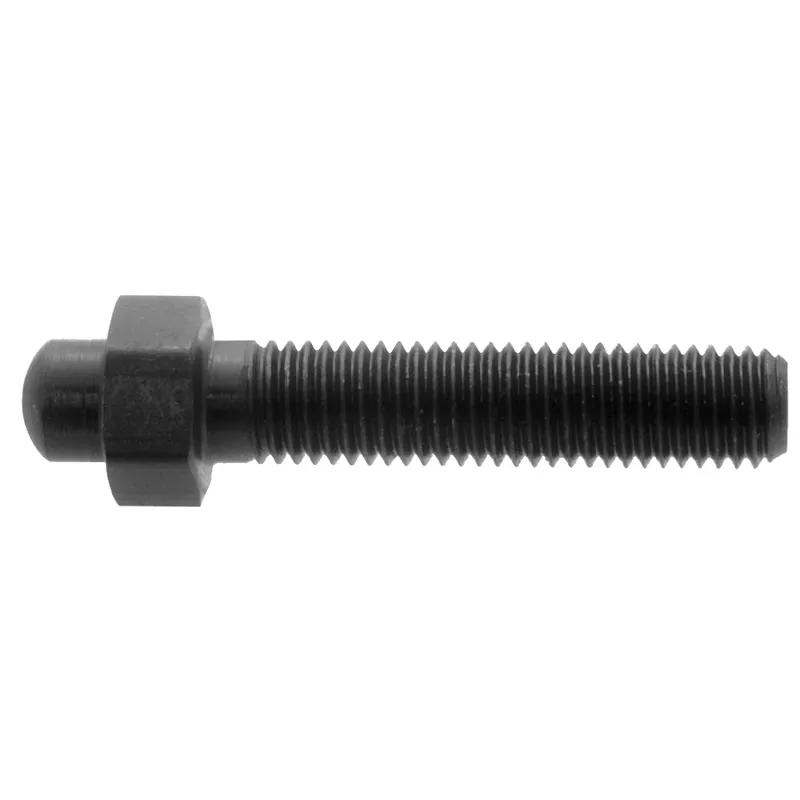

Adjustable locating screws are used with locating pins to accurately position workpieces in jigs and fixtures.

Print page
Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters 1 Filter
Brand All
Type Locating Buttons
Head Length All
Show more Show less
6 results

Sort by

None
Product SKUs information
Item Code Price range Availability Special Offer Head Length Type Brand View
$7.51 - $7.51 39 In stock
0.188 in
Spherical Press-Fit
Reid Select
$9.11 - $9.11 62 In stock
0.500 in
Spherical Press-Fit
Reid Select
$9.11 - $9.11 20 In stock
0.375 in
Spherical Press-Fit
Reid Select
$5.95 - $5.95 71 In stock
0.125 in
Spherical Press-Fit
Reid Select
$7.82 - $7.82 29 In stock
0.250 in
Spherical Press-Fit
Reid Select
$7.32 - $7.32 37 In stock
0.188 in
Spherical Press-Fit
Reid Select
Locating Screw; Button Radius=19.1 mm, Head Length=4.8 mm | 0.188 in

SLB-29

Price Range
$7.51 - $7.51

Stock Levels
39 In stock
Attributes
  • Brand
    Reid Select
  • Manufacturer Part Number
    46529
  • Type
    Spherical Press-Fit
  • Stud Diameter
    9.6 mm
  • Head Length
    0.188 in
Quick View
View Product >
Locating Screw; Button Radius=19.1 mm, Head Length=12.7 mm | 0.500 in

SLB-35

Price Range
$9.11 - $9.11

Stock Levels
62 In stock
Attributes
  • Brand
    Reid Select
  • Manufacturer Part Number
    46535
  • Type
    Spherical Press-Fit
  • Stud Diameter
    9.6 mm
  • Head Length
    0.500 in
Quick View
View Product >
Locating Screw; Button Radius=19.1 mm, Head Length=9.5 mm | 0.375 in

SLB-33

Price Range
$9.11 - $9.11

Stock Levels
20 In stock
Attributes
  • Brand
    Reid Select
  • Manufacturer Part Number
    46533
  • Type
    Spherical Press-Fit
  • Stud Diameter
    9.6 mm
  • Head Length
    0.375 in
Quick View
View Product >
Locating Screw; Button Radius=12.7 mm, Head Length=3.2 mm | 0.125 in

SLB-25

Price Range
$5.95 - $5.95

Stock Levels
71 In stock
Attributes
  • Brand
    Reid Select
  • Manufacturer Part Number
    46525
  • Type
    Spherical Press-Fit
  • Stud Diameter
    4.8 mm
  • Head Length
    0.125 in
Quick View
View Product >
Locating Screw; Button Radius=19.1 mm, Head Length=6.4 mm | 0.250 in

SLB-31

Price Range
$7.82 - $7.82

Stock Levels
29 In stock
Attributes
  • Brand
    Reid Select
  • Manufacturer Part Number
    46531
  • Type
    Spherical Press-Fit
  • Stud Diameter
    9.6 mm
  • Head Length
    0.250 in
Quick View
View Product >
Locating Screw; Button Radius=15.9 mm, Head Length=4.8 mm | 0.188 in

SLB-27

Price Range
$7.32 - $7.32

Stock Levels
37 In stock
Attributes
  • Brand
    Reid Select
  • Manufacturer Part Number
    46527
  • Type
    Spherical Press-Fit
  • Stud Diameter
    6.4 mm
  • Head Length
    0.188 in
Quick View
View Product >
