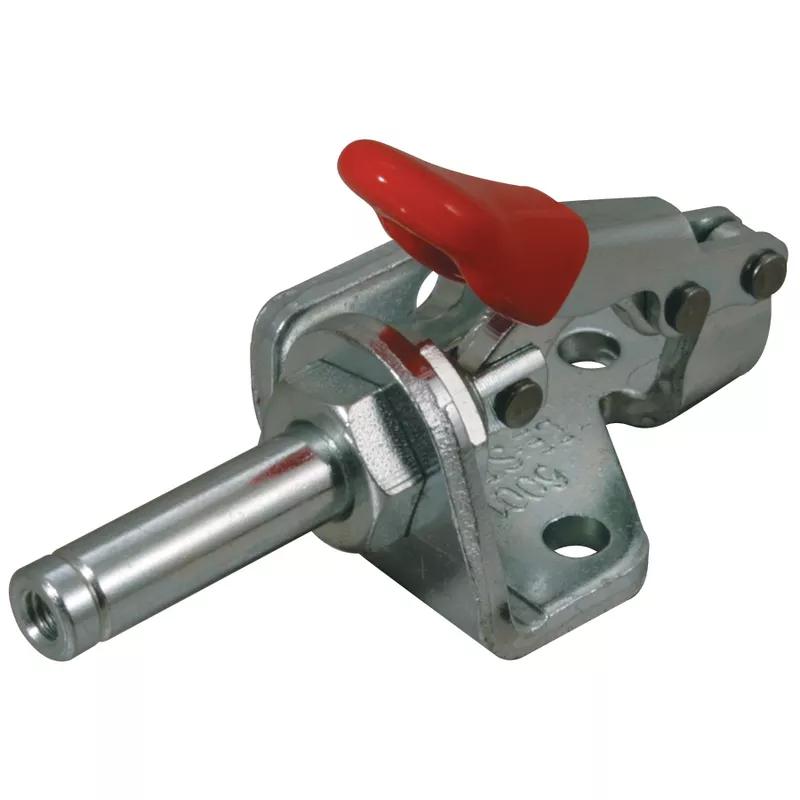

Manual Push-Pull Clamp - Overall Length - 66.8 mm | 2.630 in ; ; Mount Type - Flanged ; Handle Movement Action - Forward Action
This clamp locks over-center in both extended and retracted position, provided the handle is allowed to fall below the mounting plane. Base can be side mounted. Manufacturer Part Number: 6001
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $31.03 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 6001 |
| Holding Capacity | 150 lbf |
| Plunger Travel | 16 mm |
| Plunger Diameter | 0.280 in |
| Plunger Thread Type | Internal Thread |
| Plunger Thread Size | 8-32 |
| Overall Length | 2.630 in |
| Overall Height | 1.270 in |
| Mount Type | Flanged |
| Handle Movement Action | Forward Action |
