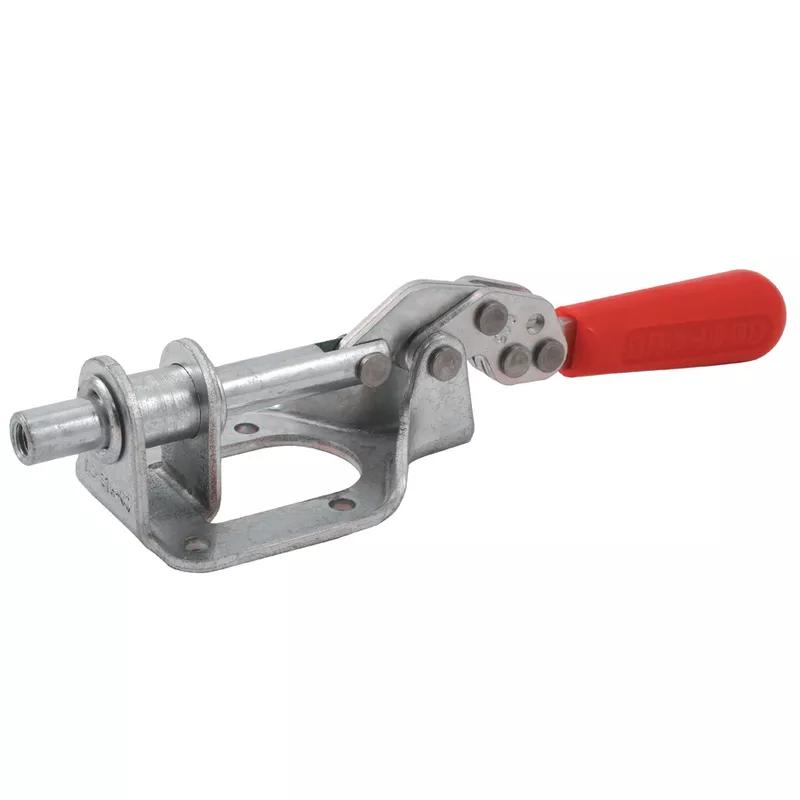

Manual Push-Pull Clamp - Overall Length - 138.9 mm | 5.470 in ; Holding Force (Seed)=300 lbs; Mount Type - Flanged Base ; Handle Movement Action - Forward Action
Flanged Base Manual Push Pull Clamp fits spindle threads to hold materials in place with 300 lbs of force. The low profile clamp uses a Forward Action to prevent slippage and movement. Manufacturer Part Number: 605-M
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $31.25 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Manufacturer Part Number | 605-M |
| Plunger Travel | 31.8 mm |
| Plunger Thread Type | Internal Thread |
| Plunger Thread Size | 5/16-18;M8 |
| Overall Length | 5.470 in |
| Overall Height | 3.160 in |
| Mount Type | Flanged |
| Handle Movement Action | Forward Action |
