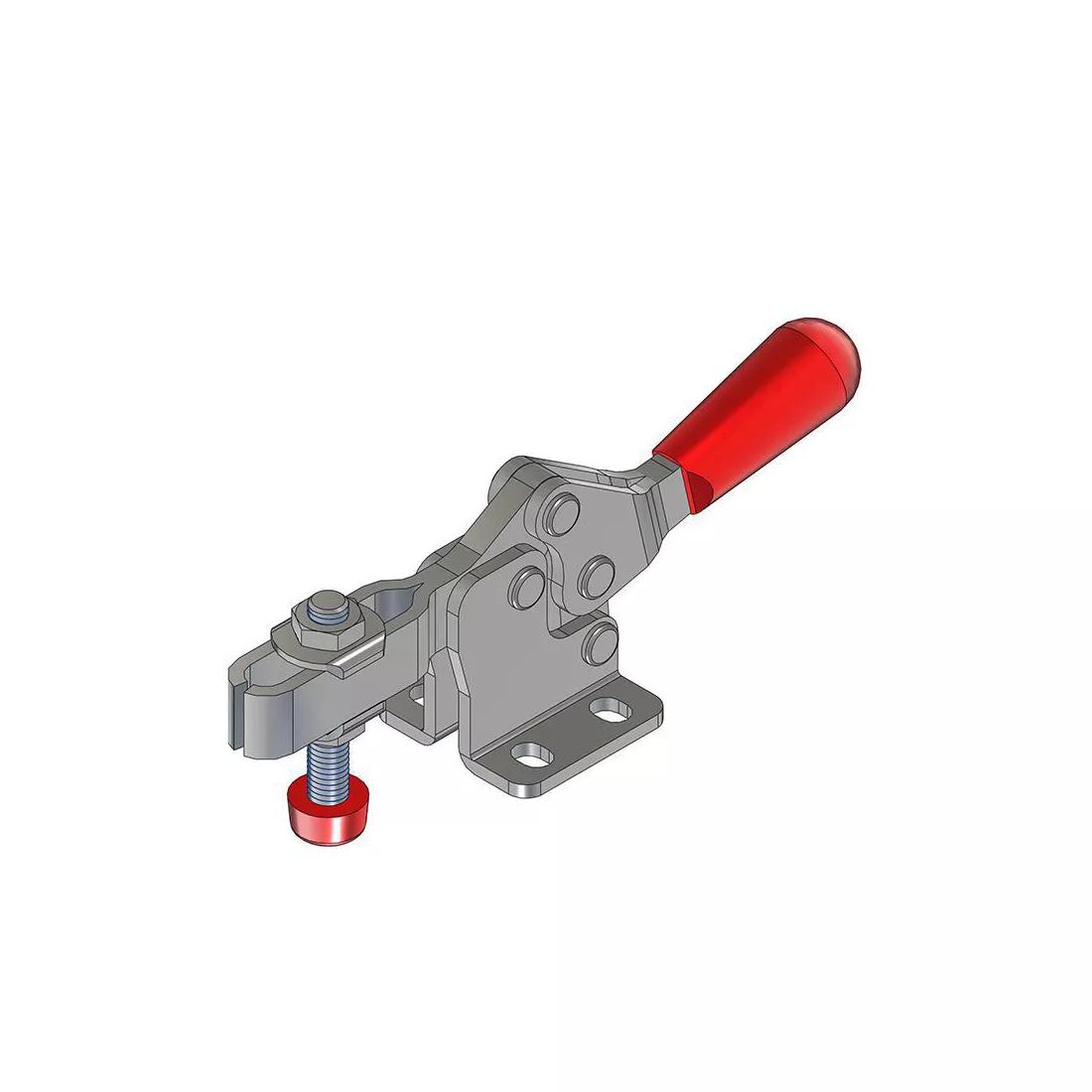

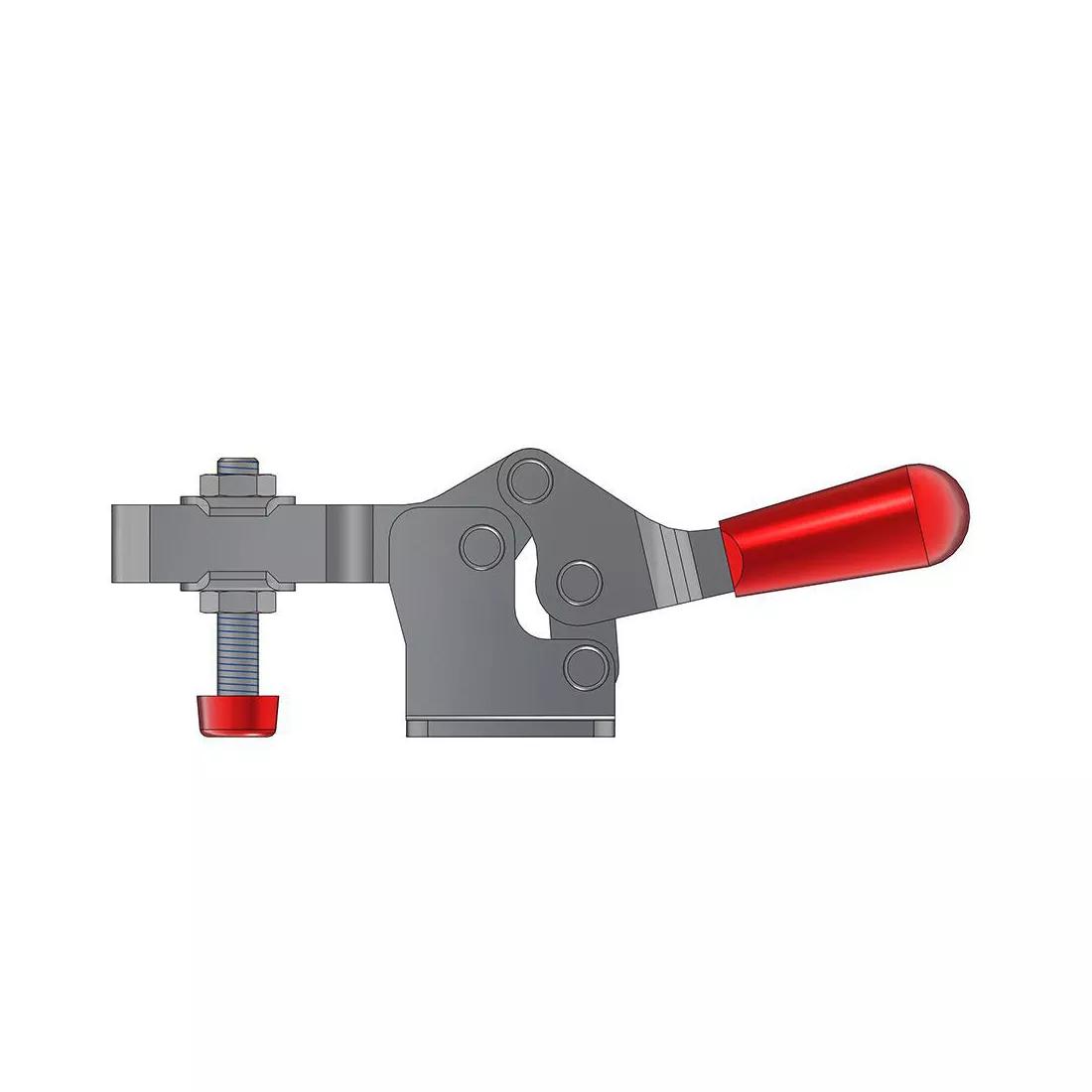

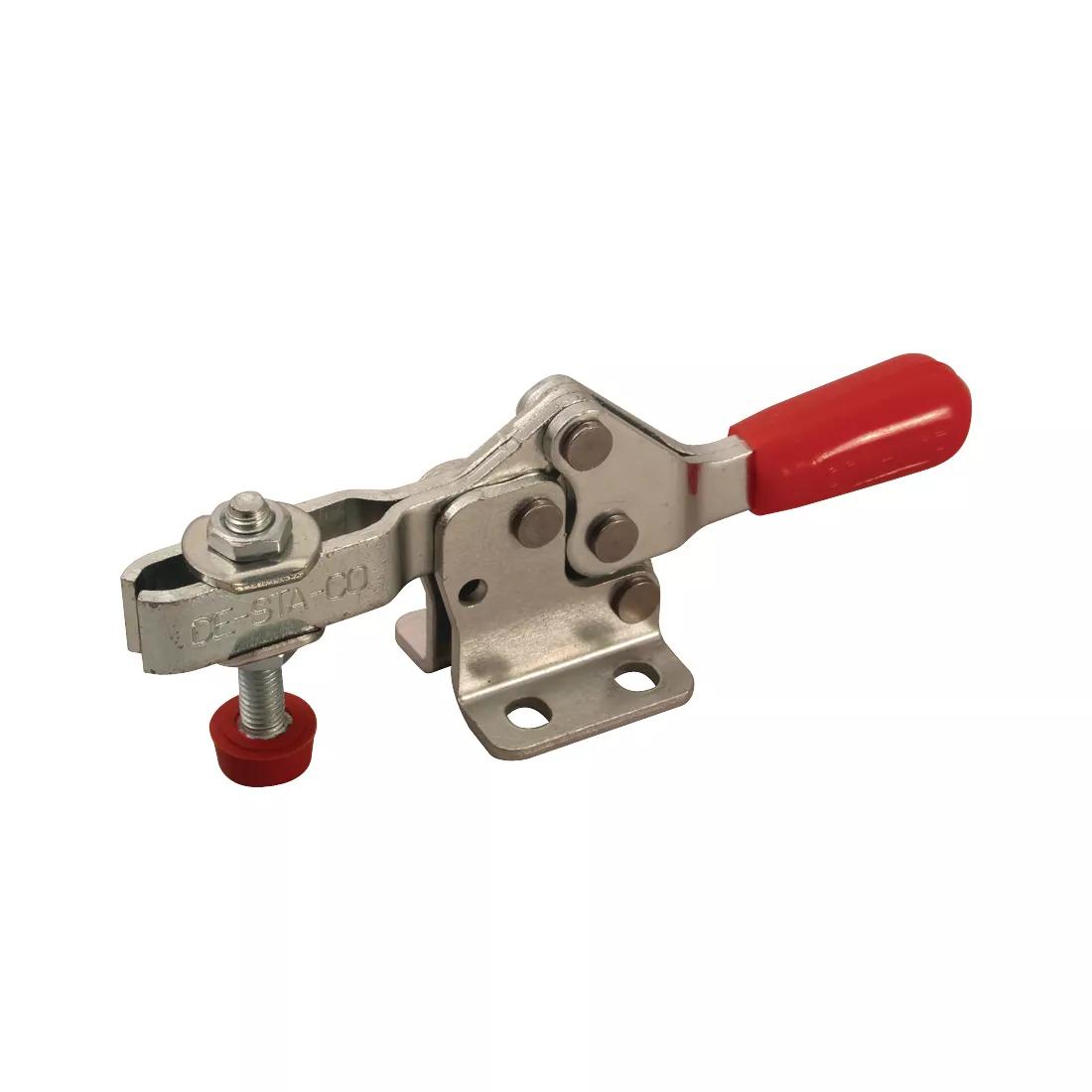

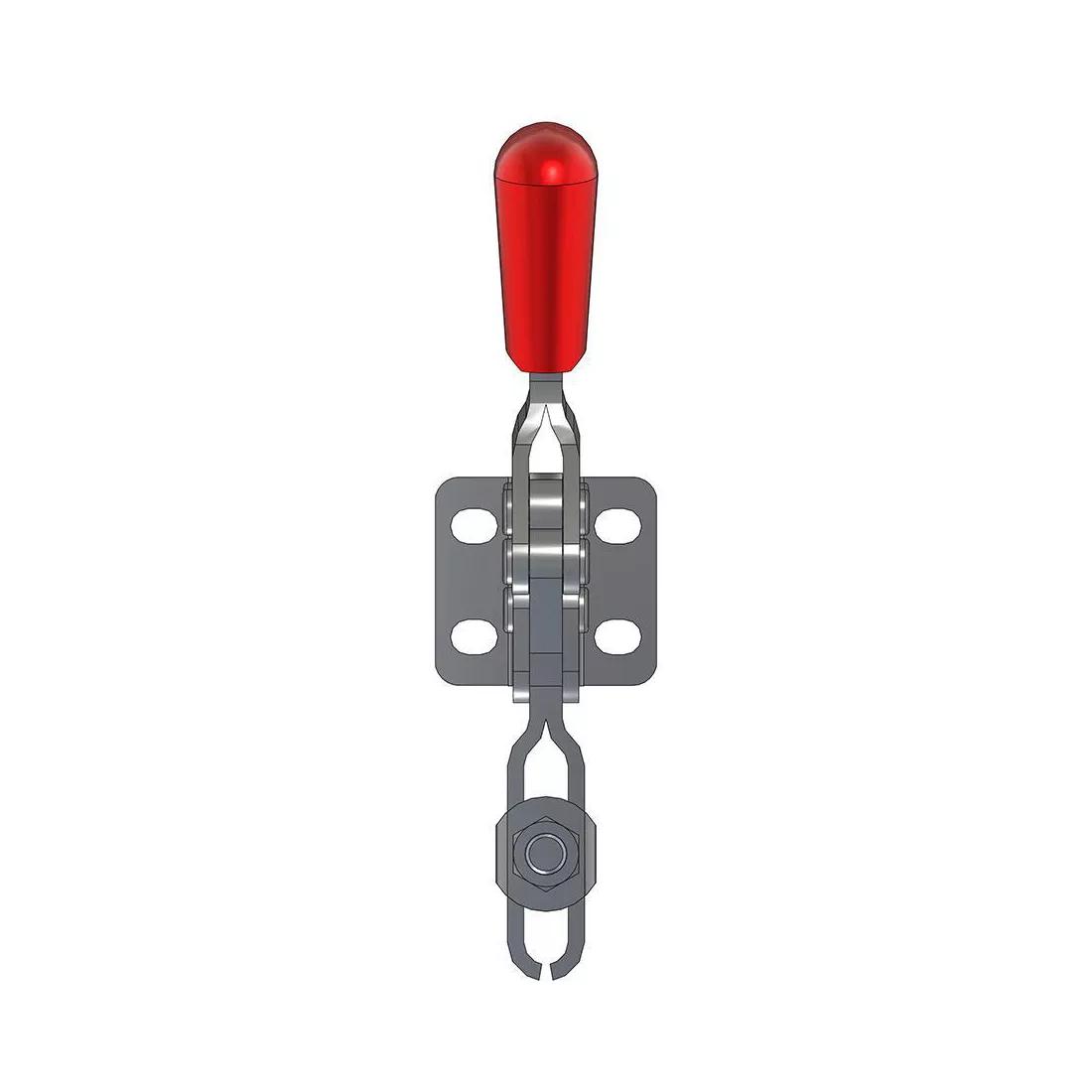

Manual Horizontal Hold Down Clamp - Holding Capacity 667.2 N | 150 lbf; Height Under Arm 18.3 mm | 0.720 in; Base Type Flanged; Bar Type U-Bar
1.390 inH x 4.120 inL Horizontal Manual Hold Down Clamp has a U-Bar and Flanged base providing of holding force while saving work space. Manufacturer Part Number: 213-U
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Print page
Can't find what you're looking for?
Can't find what you're looking for?
Tell us what you are looking for…
Send us your inquiry and we will respond within 4 working hours. (Business hours are Monday through Friday, 7:30 am to 6:00 pm ET)
Thanks for contacting us. We will respond within 4 working hours. (Business hours are Monday through Friday, 7:30 am to 6:00 pm ET)
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 213-U |
| Holding Capacity | 150 lbf |
| Base Length | 1.00 in |
| Base Width | 1.06 in |
| Overall Height | 1.39 in |
| Overall Length | 4.12 in |
| Arm Length | 1.42 in |
| Height Under Arm | 0.720 in |
| Arm Movement | 90 |
| Handle Movement | 60 |
| Mounting Hole Spacing Along Length | 0.750 in |
| Mounting Hole Spacing Along Width | 0.530 in |
| Base Type | Flanged |
| Arm Type | U-Bar |
| Spindle Type | Neoprene Tipped |
| Spindle Thread Size | 10-32,M5 |
