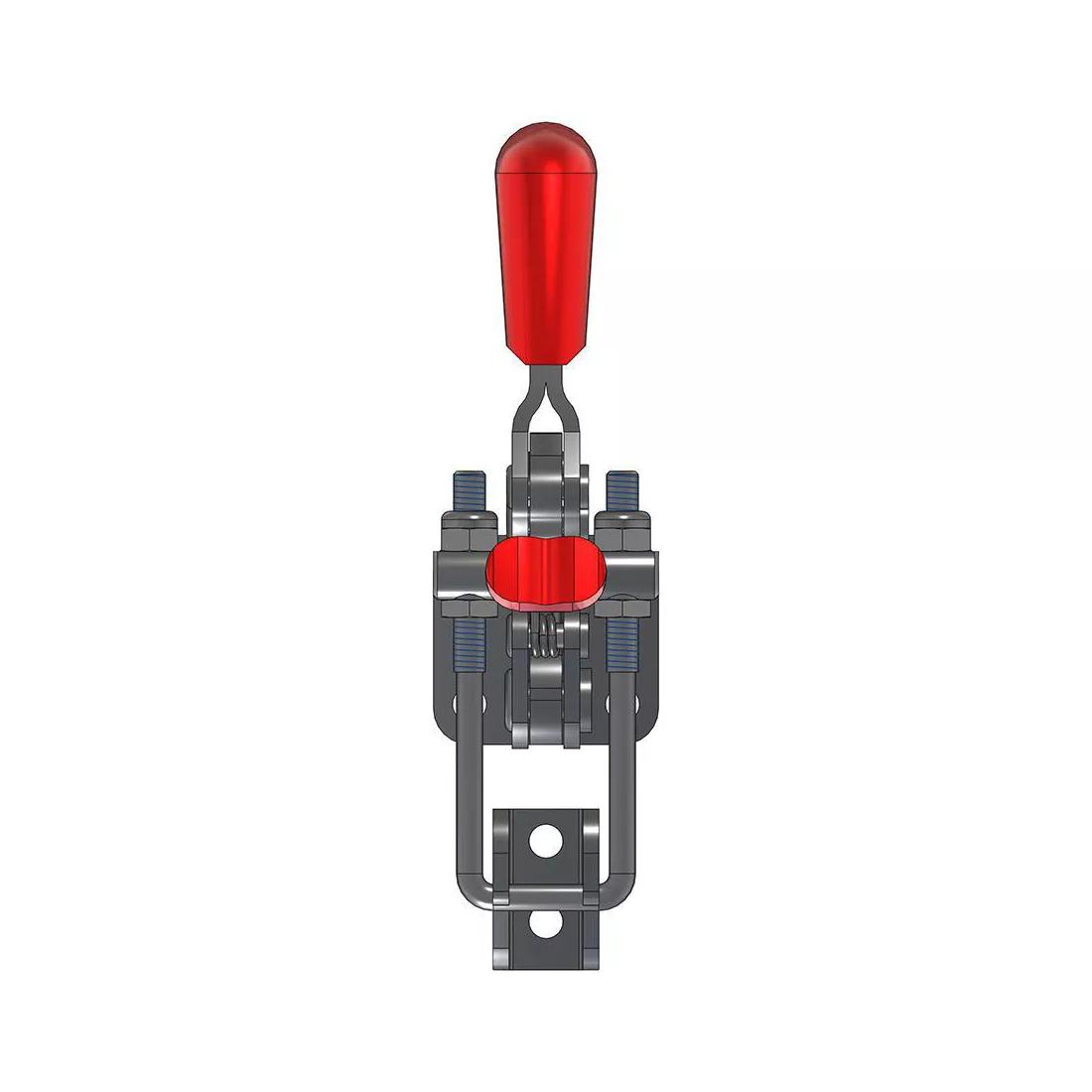

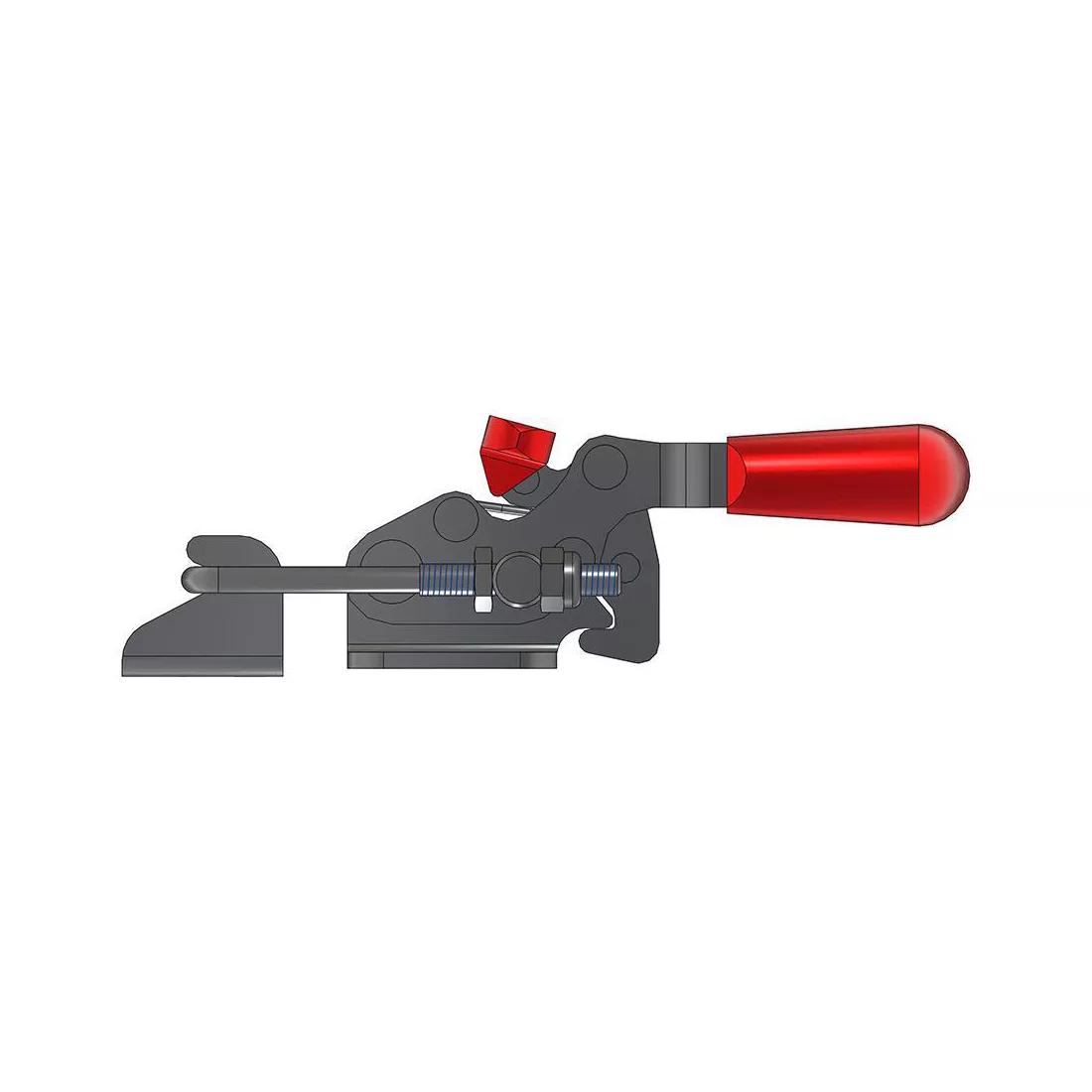

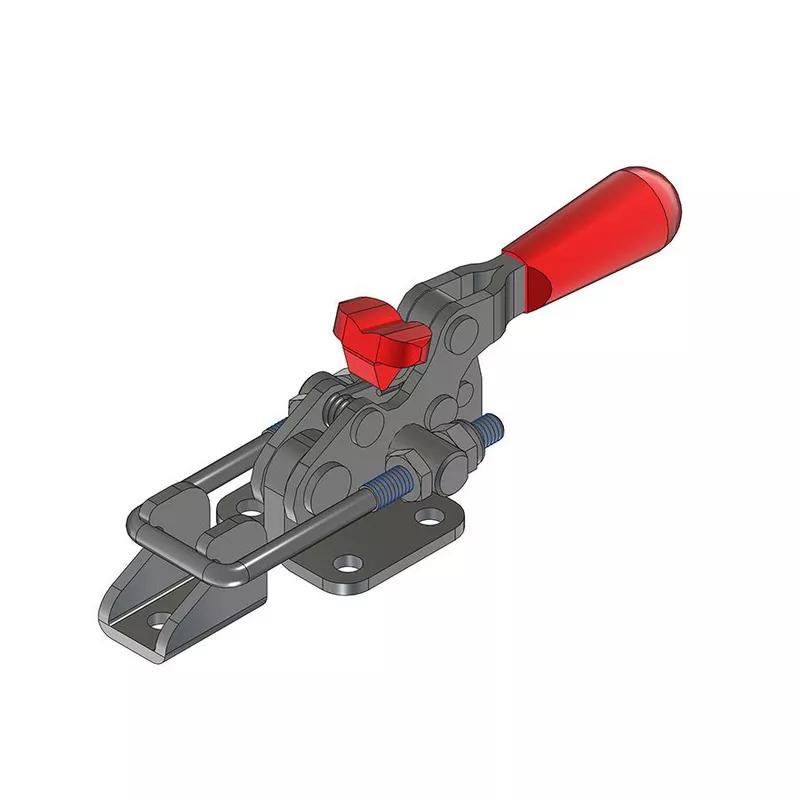

Manual Horizontal Hook and Latch Clamp - Holding Capacity 1601.4 N | 360 lbf; Travel 57.7 mm; Arm Length 58.9 mm | 2.320 in
Thumb Control;Locking Release Horizontal Manual Hook & Latch Clamp holds materials in place with 360 lbs of force. The 1.19 inH x 3.88 inL clamp has a low profile design. Manufacturer Part Number: 323-R
| Quantity | Unit price |
|---|---|
| 1 + | $32.56 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 323-R |
| Holding Capacity | 360 lbf |
| Mount Type | Flanged |
| Travel | 57.7 mm |
| Arm Type | U-Bar |
| Lever Type | Thumb Control;Locking Release |
| Arm Length | 2.320 in |
| Arm Width | 0.750 in |
| Base Width | 1.110 in |
| Base Length | 1.020 in |
| Overall Length | 3.88 in |
| Overall Height | 1.190 in |
| Height to Arm Center | 0.47 in |
| Mounting Hole Diameter | 0.170 in |
| Body Material | Steel |
| Includes (All) | 1 Latch Plate |
