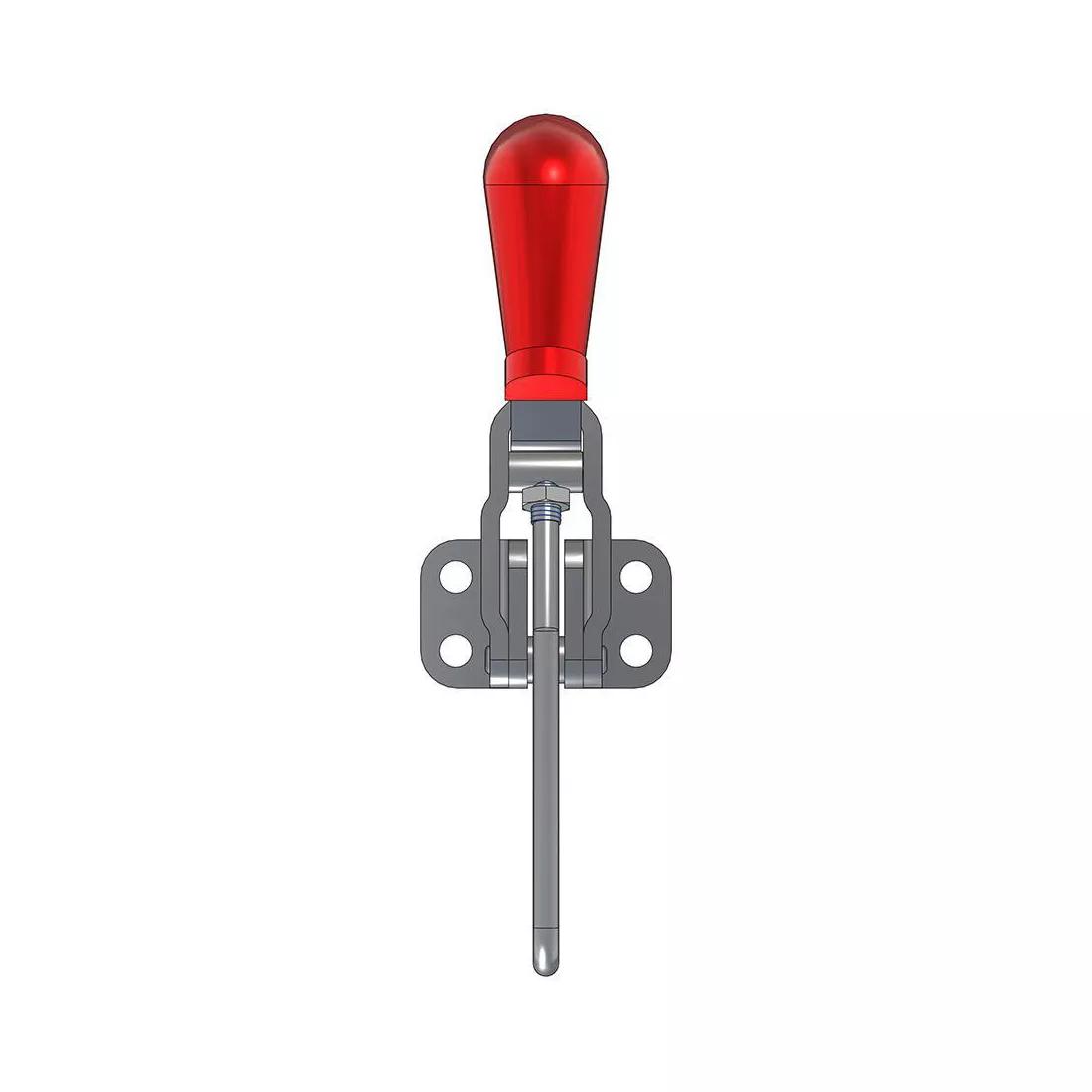

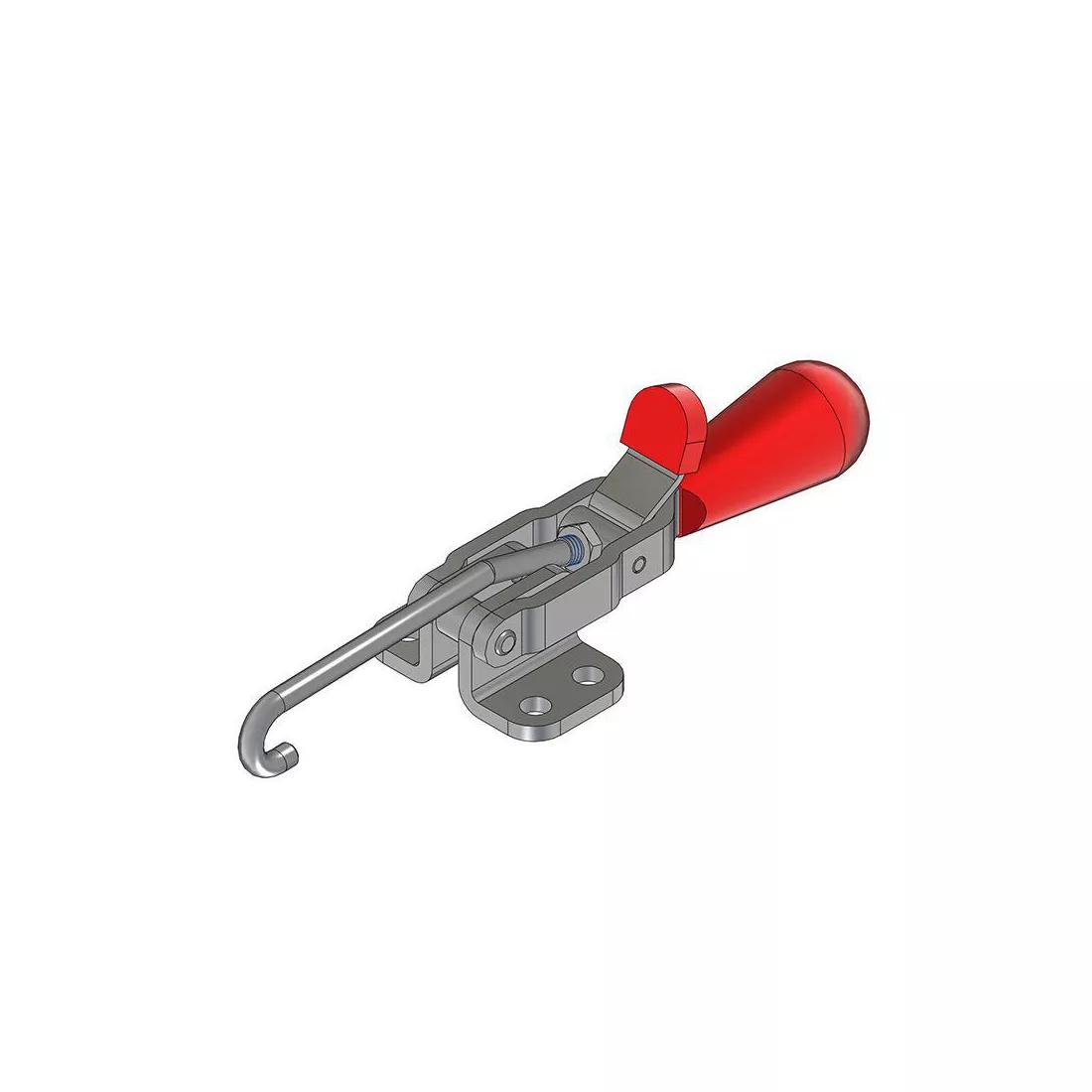

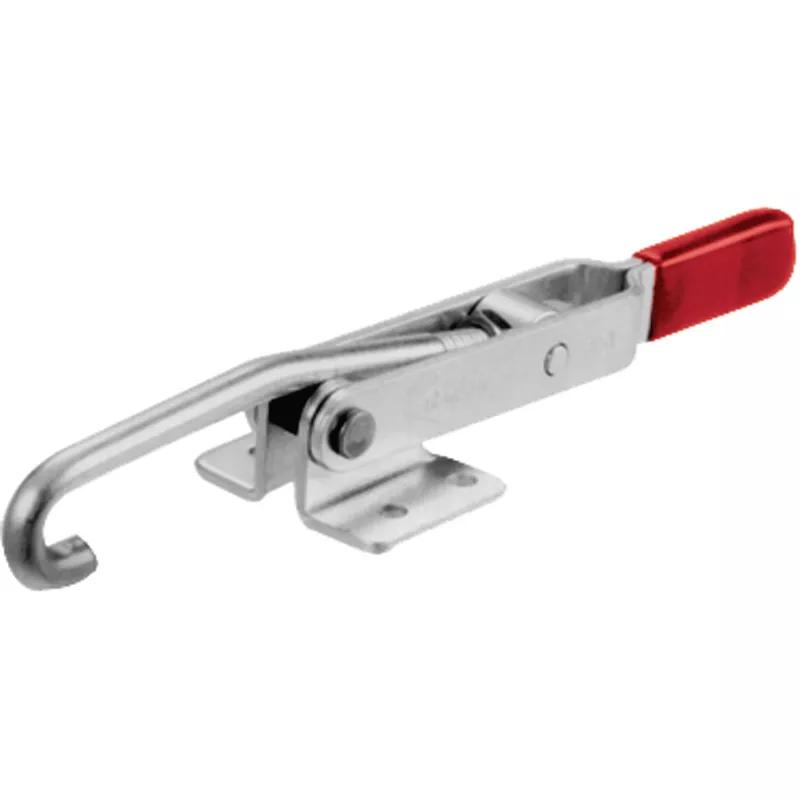

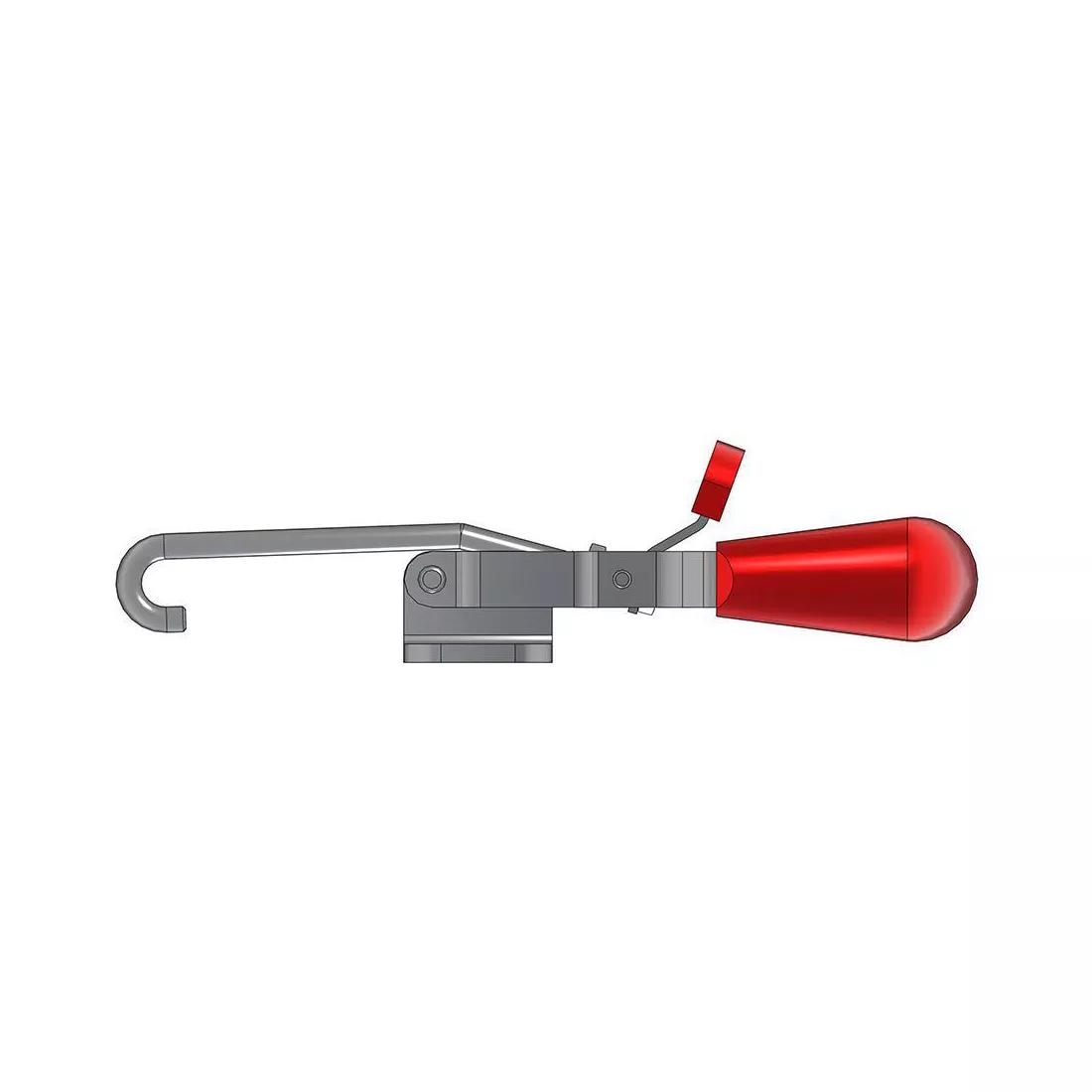

Manual Horizontal Hook and Latch Clamp - Holding Capacity 889.6 N | 200 lbf; Travel 59.7 mm; Arm Length 43.2 mm | 1.700 in
Thumb Control Horizontal Manual Hook & Latch Clamp holds materials in place with 200 lbs of force. The .900 inH x 5.640 inL clamp has a low profile design. Manufacturer Part Number: 330-SS
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $39.67 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 330-SS |
| Holding Capacity | 200 lbf |
| Mount Type | Flanged |
| Travel | 59.7 mm |
| Arm Type | J-Hook |
| Lever Type | Thumb Control |
| Arm Length | 1.700 in |
| Arm Width | 0.190 in |
| Base Width | 1.690 in |
| Base Length | 1.000 in |
| Overall Length | 5.640 in |
| Overall Height | .900 in |
| Height to Arm Center | .900 in |
| Mounting Hole Diameter | 0.220 in |
| Body Material | Stainless Steel |
