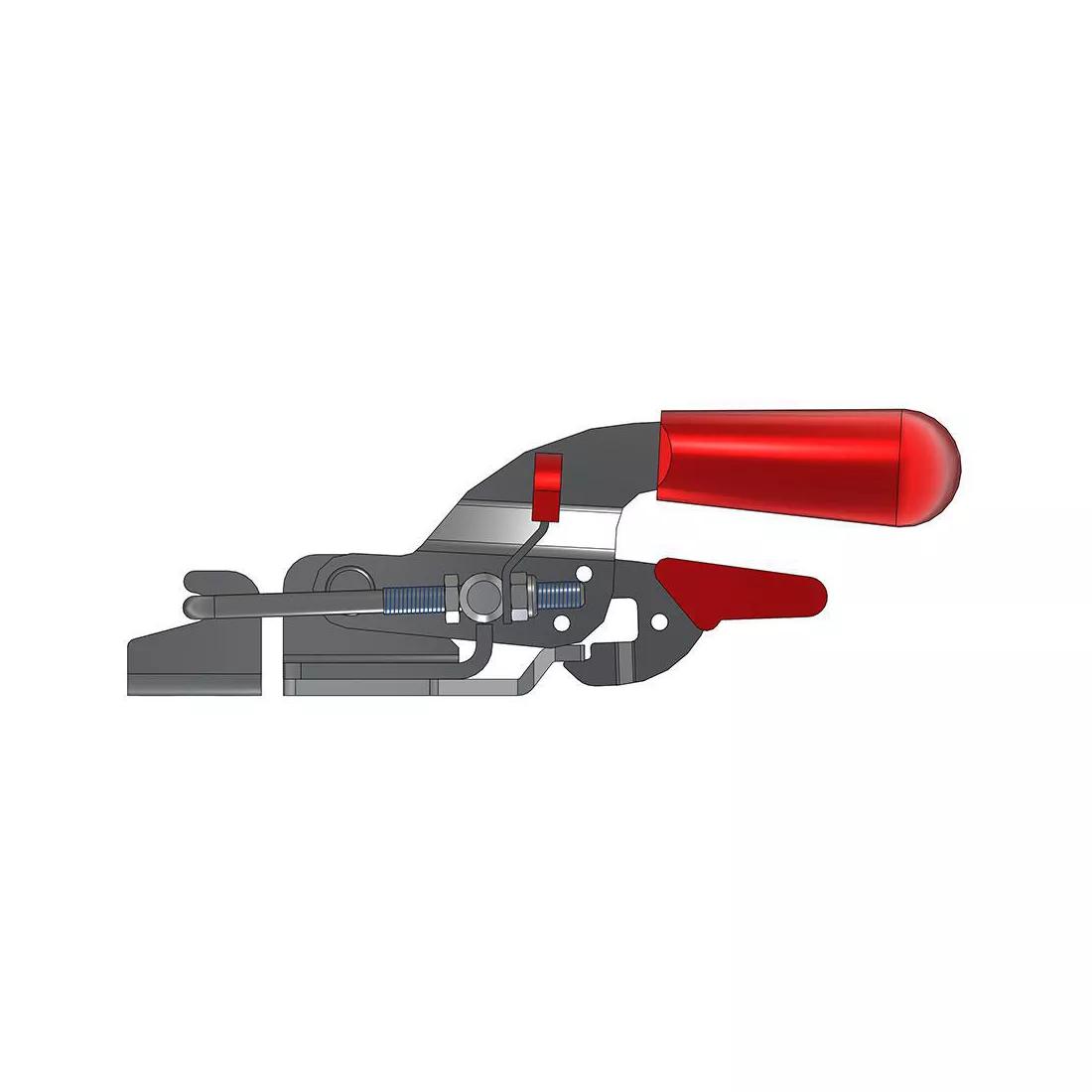

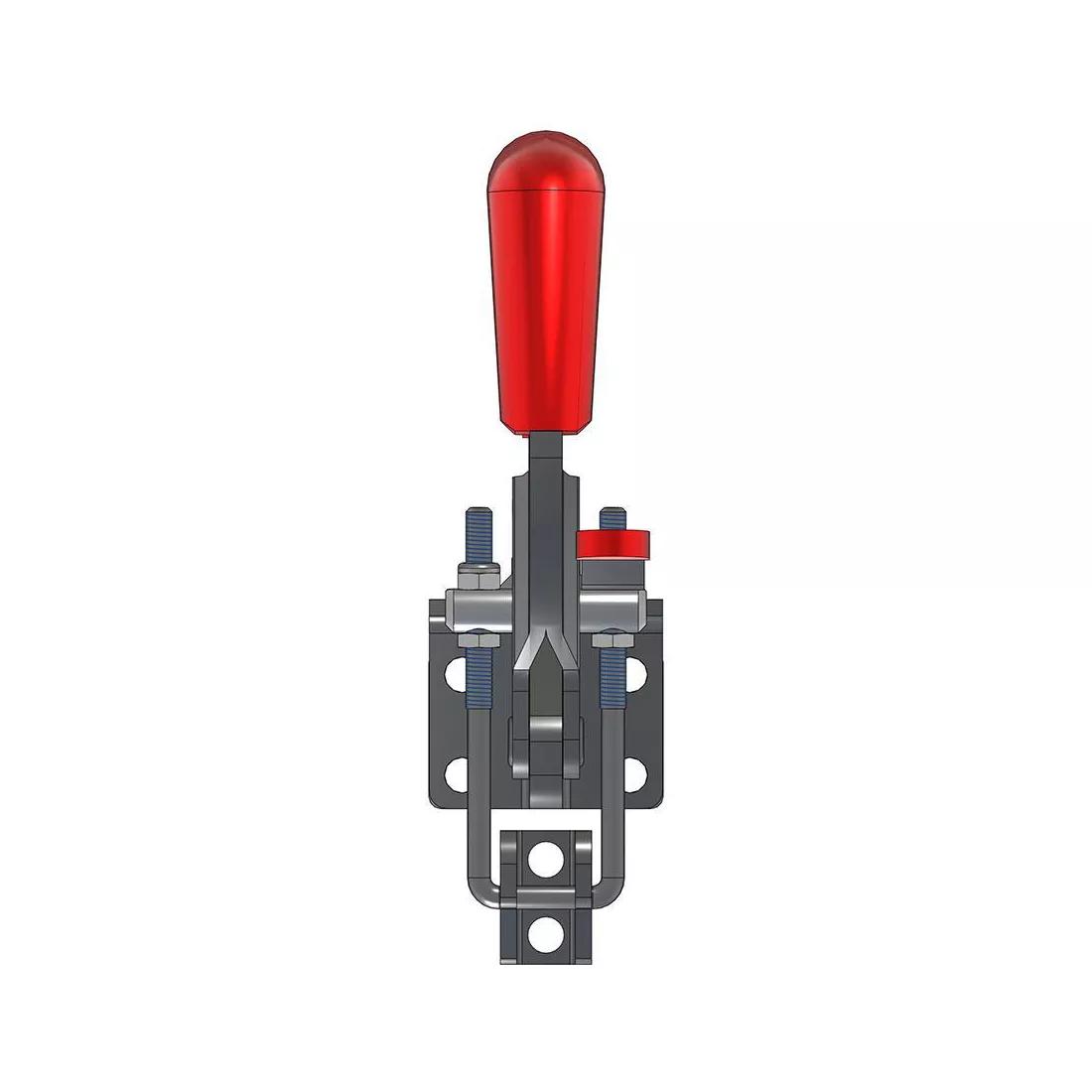

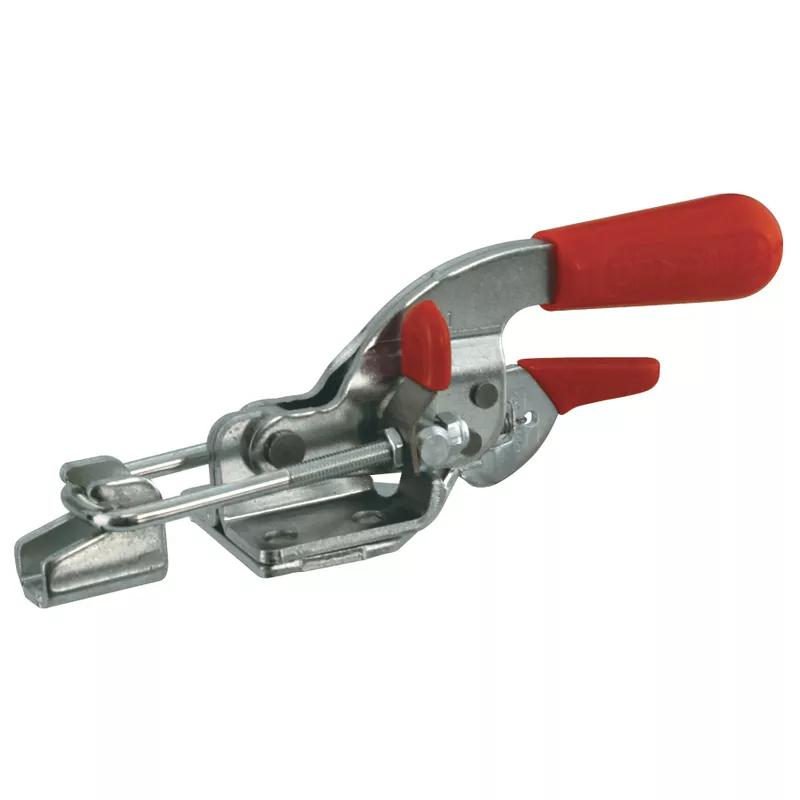

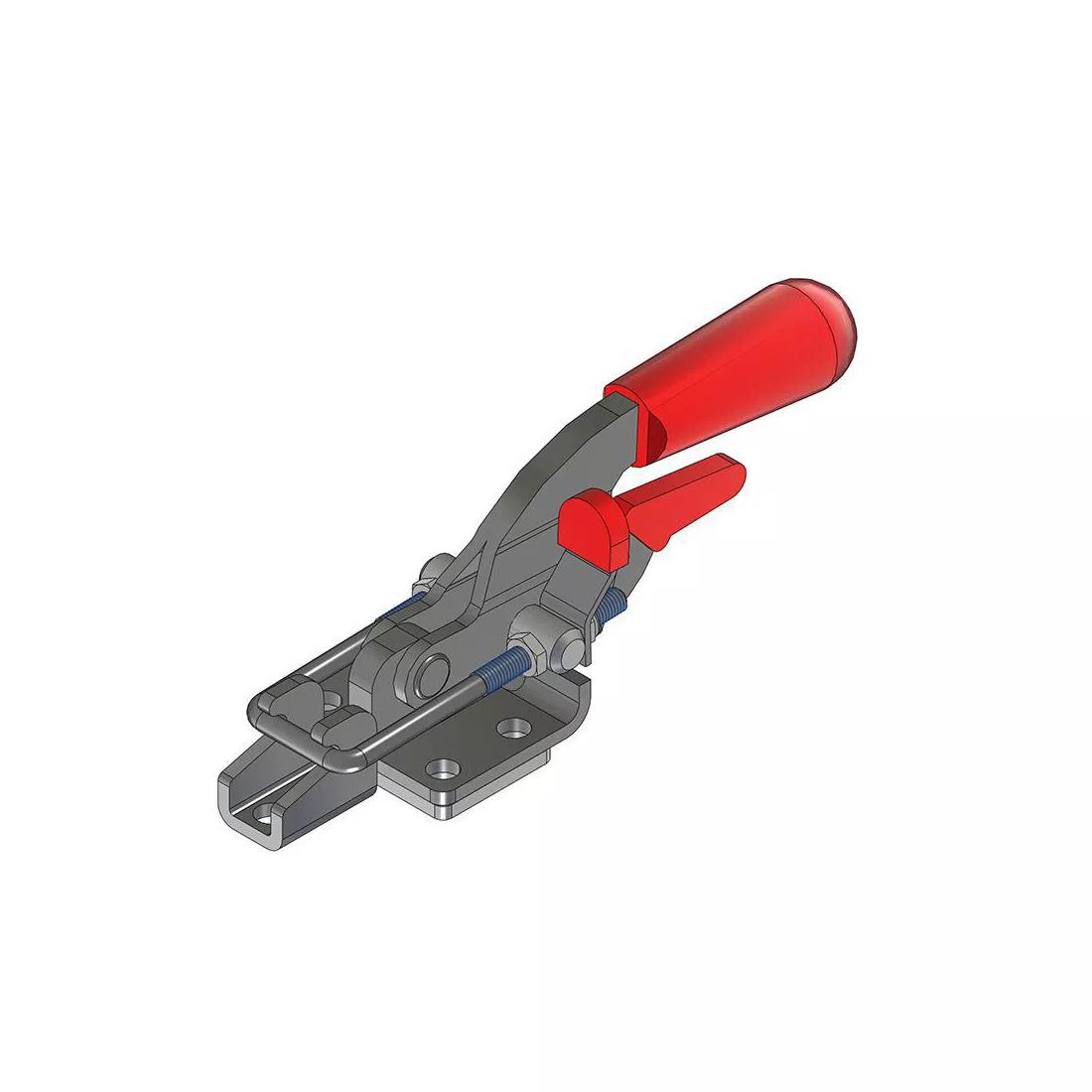

Manual Horizontal Hook and Latch Clamp - Holding Capacity 3113.8 N | 700 lbf; Travel 44.5 mm; Arm Length 78 mm | 3.070 in, 331-R
Thumb Control;Locking Release Horizontal Manual Hook & Latch Clamp holds materials in place with 700 lbs of force. The 2.080 inH x 5.970 inL clamp has a low profile design. Manufacturer Part Number: 331-R
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $35.68 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Manufacturer Part Number | 331-R |
| Mount Type | Flanged |
| Arm Type | U-Bar |
| Lever Type | Thumb Control;Locking Release |
| Overall Length | 5.970 in |
| Overall Height | 2.080 in |
| Mounting Hole Diameter | 0.270 in |
| Body Material | Steel |
