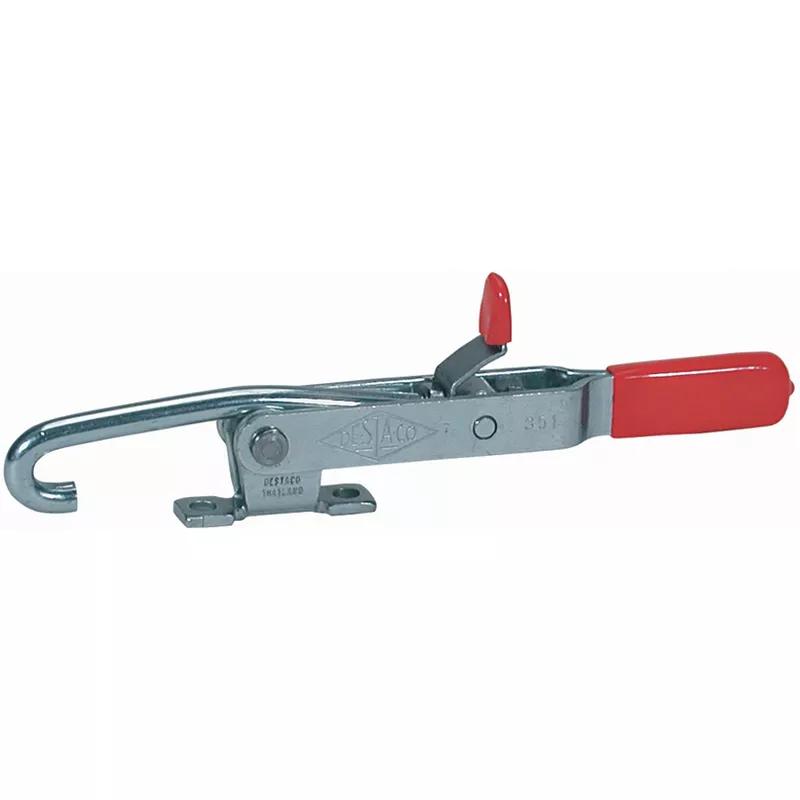

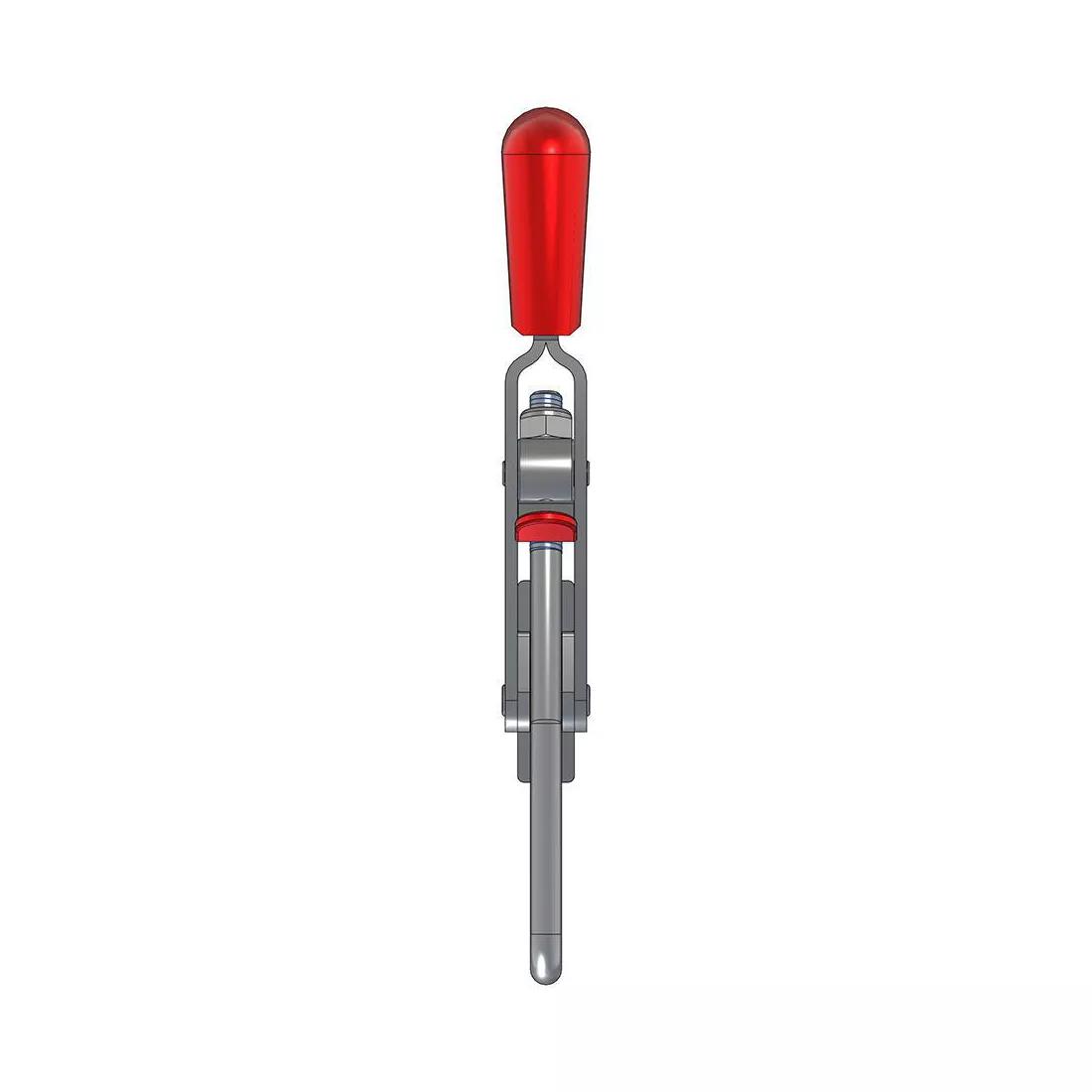

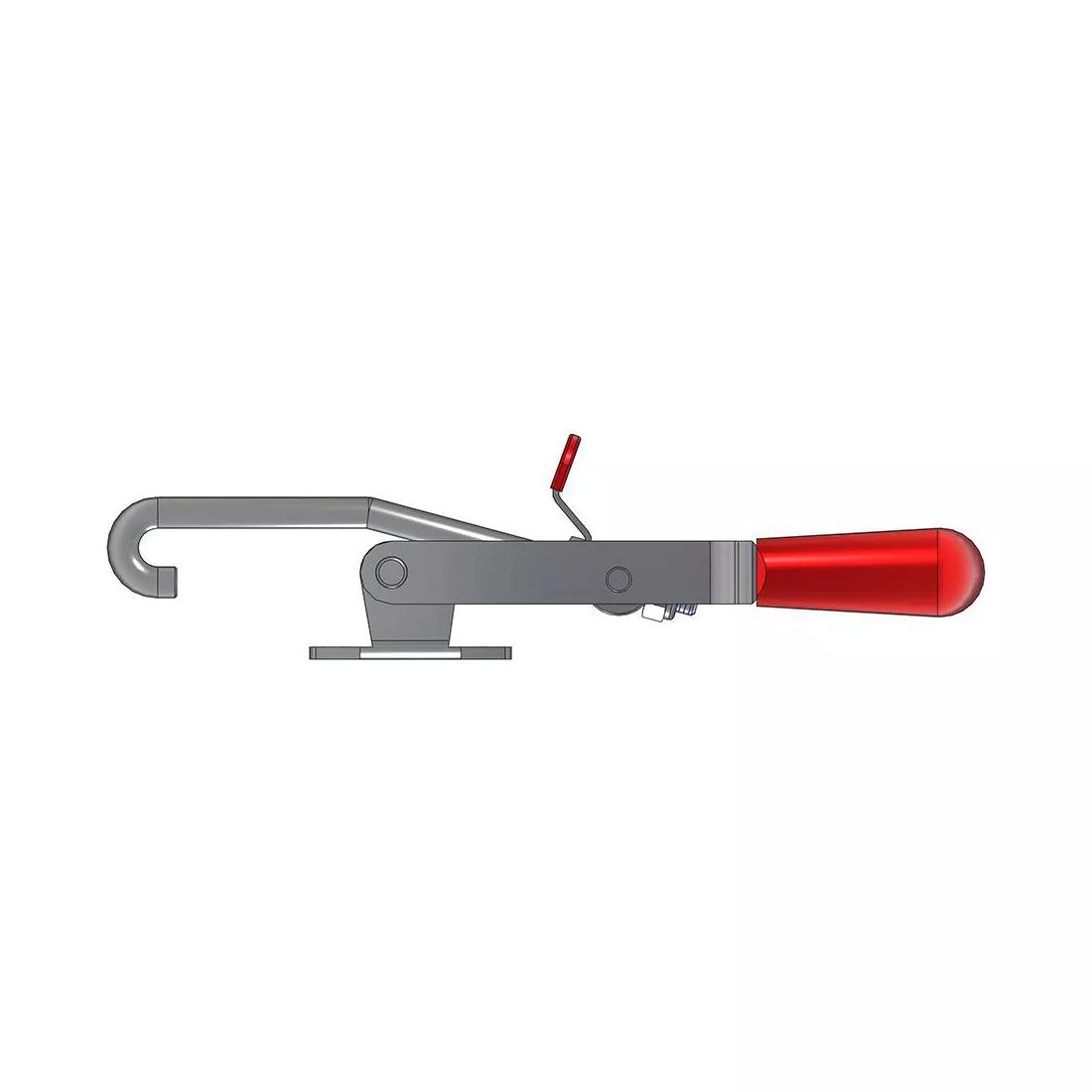

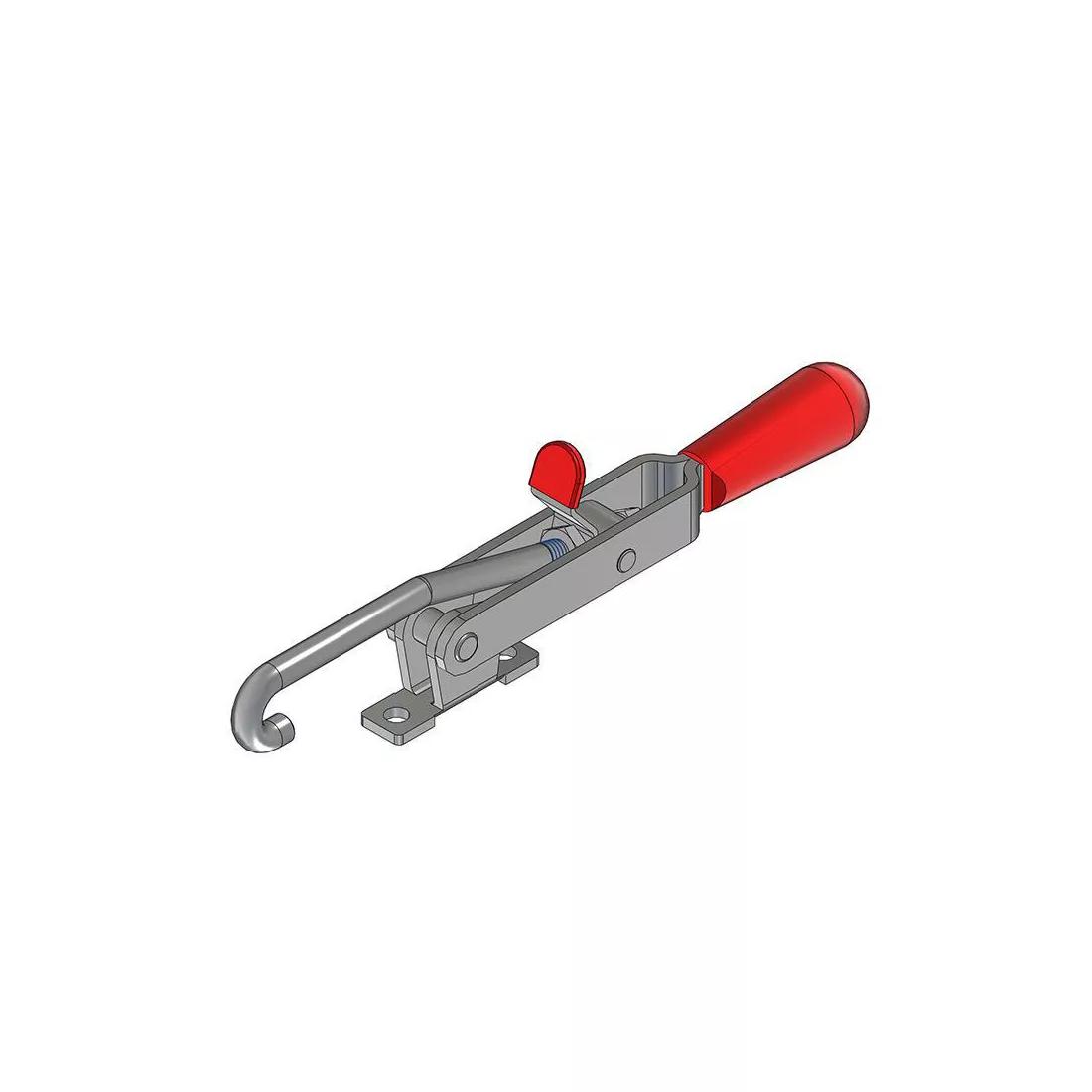

Manual Horizontal Hook and Latch Clamp - Holding Capacity 1668.1 N | 375 lbf; Travel 101.6 mm; Arm Length 41.4 mm | 1.630 in
Thumb Control;Locking Release Horizontal Manual Hook & Latch Clamp holds materials in place with 375 lbs of force. The 1.340 inH x 8.560 inL clamp has a low profile design. Manufacturer Part Number: 351-BSS
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 351-BSS |
| Holding Capacity | 375 lbf |
| Mount Type | Narrow Base;No Flange |
| Travel | 101.6 mm |
| Arm Type | J-Hook |
| Lever Type | Thumb Control;Locking Release |
| Arm Length | 1.630 in |
| Arm Width | 0.310 in |
| Overall Length | 8.560 in |
| Overall Height | 1.340 in |
| Height to Arm Center | 1.340 in |
| Body Material | Stainless Steel |
