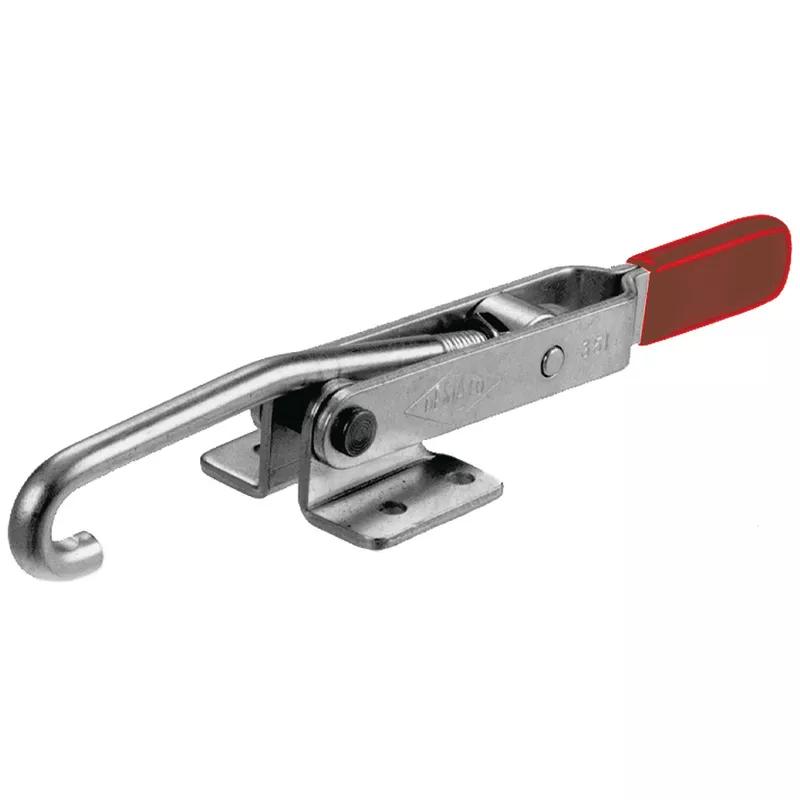

Hook and Latch Clamp; Holding Capacity=2001.7 N | 450 lbf, Travel=101.6 mm
Thumb Control;Locking Release Horizontal Manual Hook & Latch Clamp holds materials in place with 450 lbs of force. The 1.83 inH x 8.82 inL clamp has a low profile design.
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $38.27 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Holding Capacity | 450 lbf |
| Mount Type | Flanged |
| Travel | 101.6 mm |
| Arm Type | J-Hook |
| Lever Type | Thumb Control;Locking Release |
| Arm Length | 2.130 in |
| Arm Width | 0.310 in |
| Base Width | 1.929 in |
| Base Length | 1.500 in |
| Overall Length | 8.820 in |
| Overall Height | 1.830 in |
| Mounting Hole Diameter | 0.220 in |
| Body Material | Stainless Steel |
