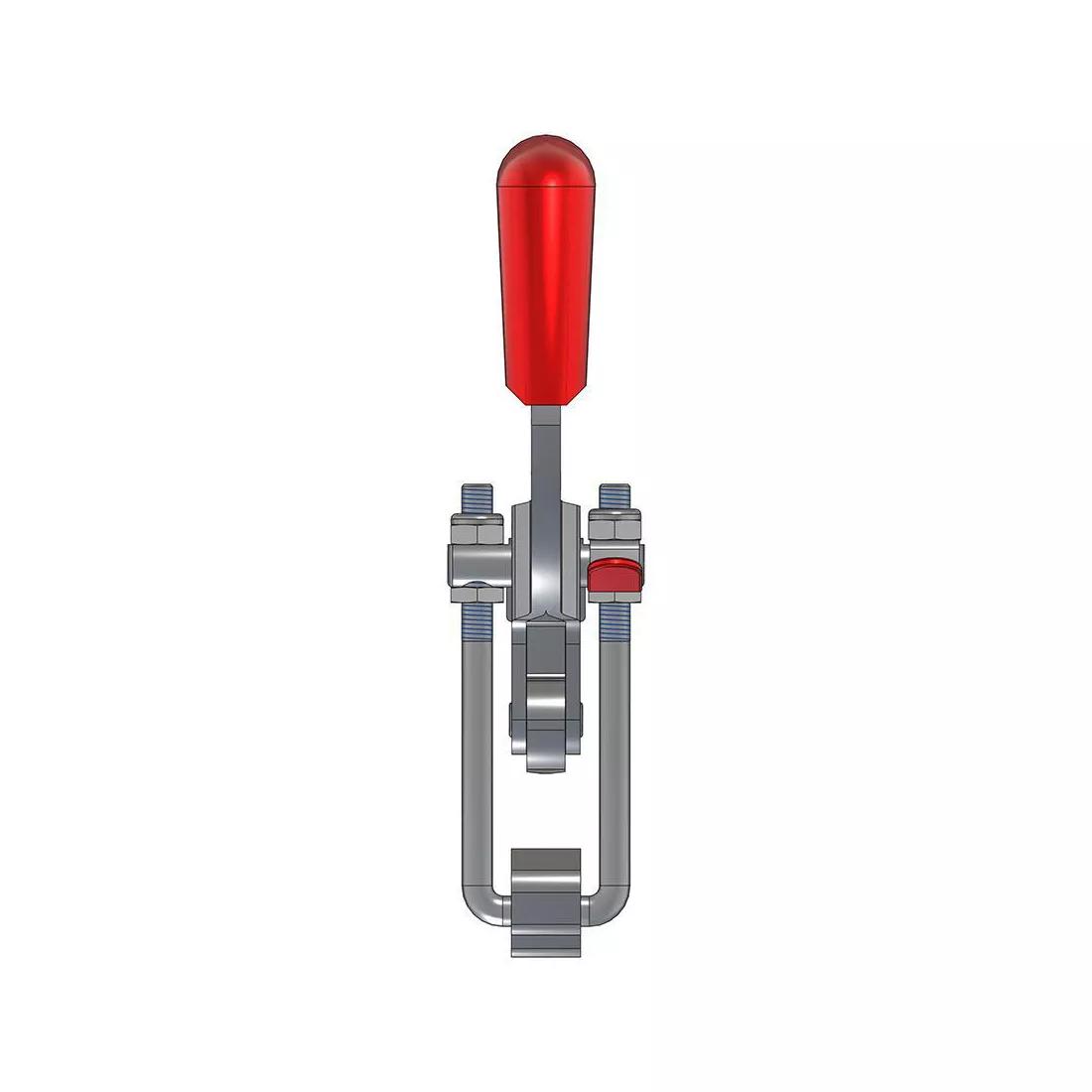

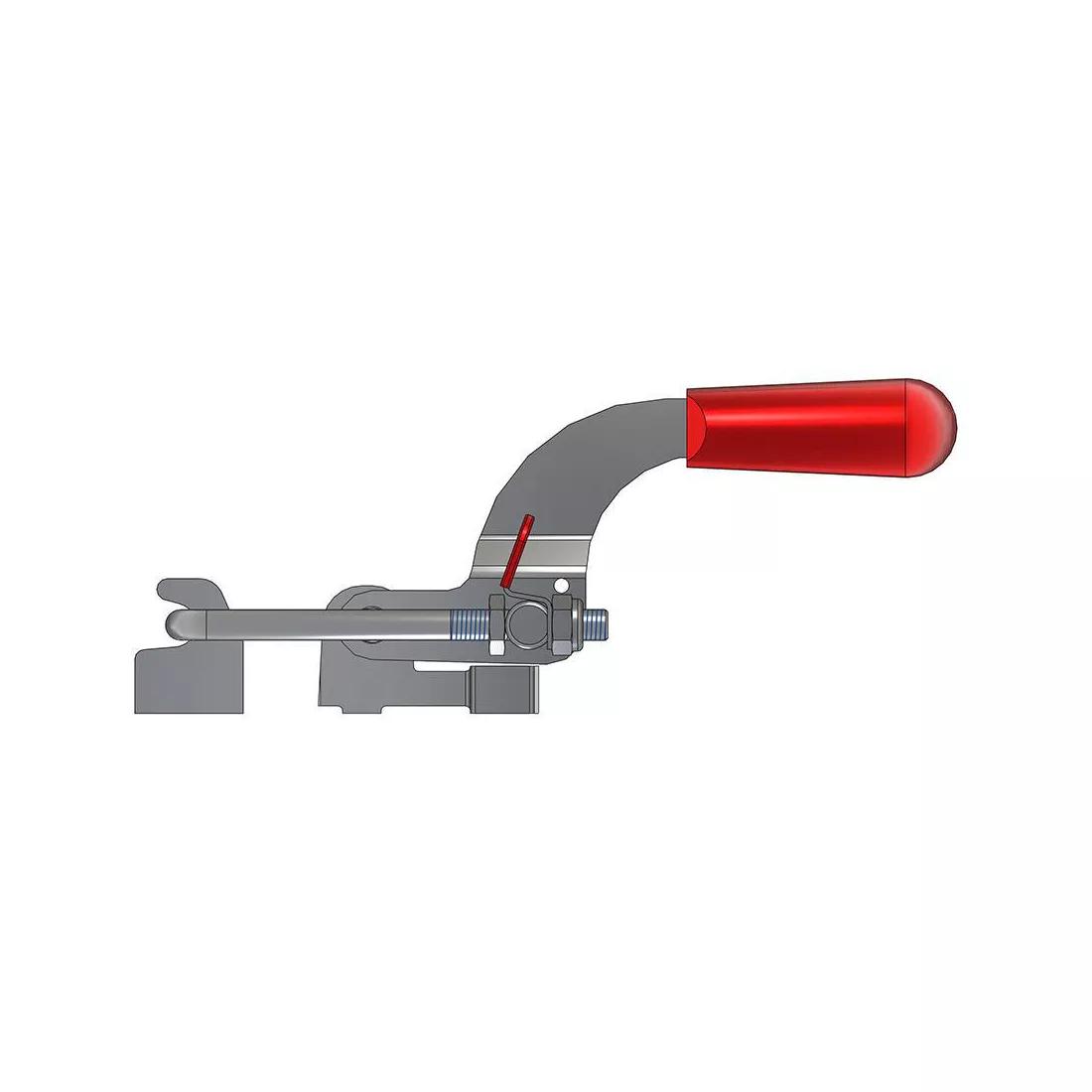

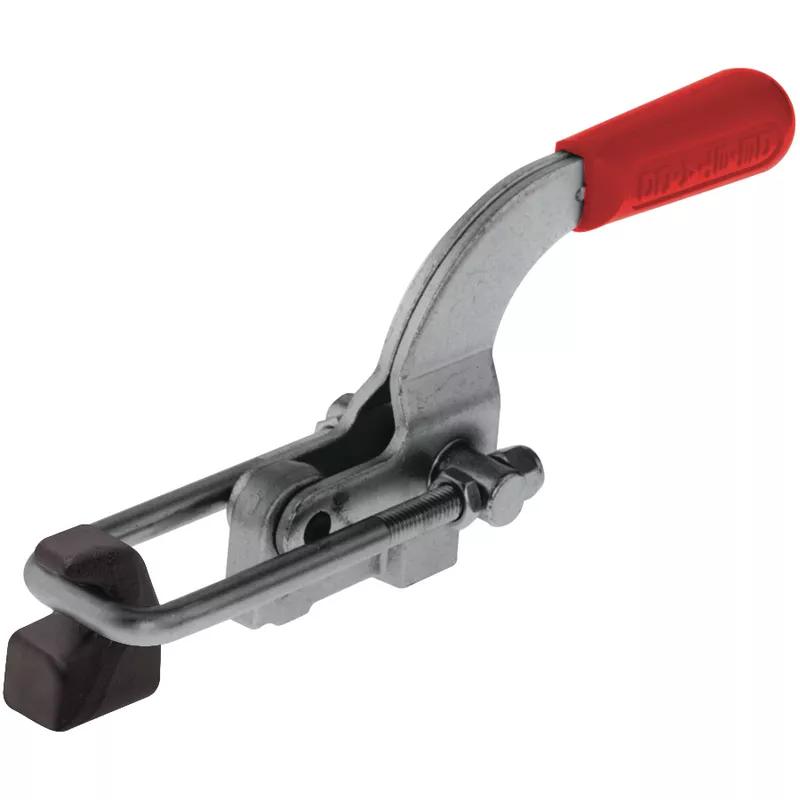

Hook and Latch Clamp; Holding Capacity=17792.9 N | 4000 lbf, Travel=88.9 mm
Thumb Control;Locking Release Horizontal Manual Hook & Latch Clamp holds materials in place with 4000 lbs of force. The 4.190 inH x 9.630 inL clamp has a low profile design.
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $78.81 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Holding Capacity | 4000 lbf |
| Mount Type | Narrow Base;No Flange |
| Travel | 88.9 mm |
| Arm Type | U-Bar |
| Lever Type | Thumb Control;Locking Release |
| Arm Width | 0.390 in |
| Overall Length | 9.630 in |
| Overall Height | 4.190 in |
| Height to Arm Center | 4.190 in |
| Body Material | Steel |
| Includes (All) | 1 Latch Plate |
