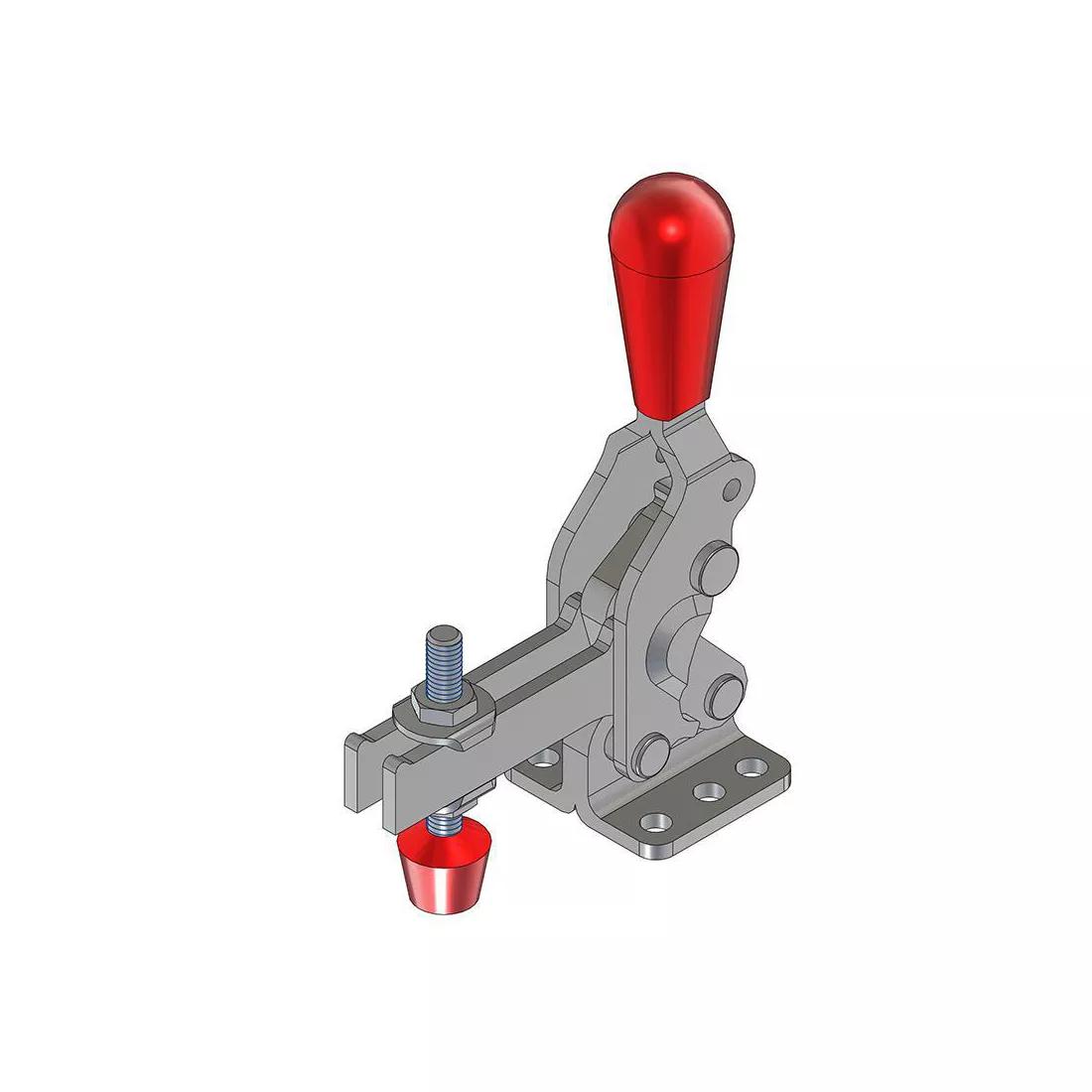

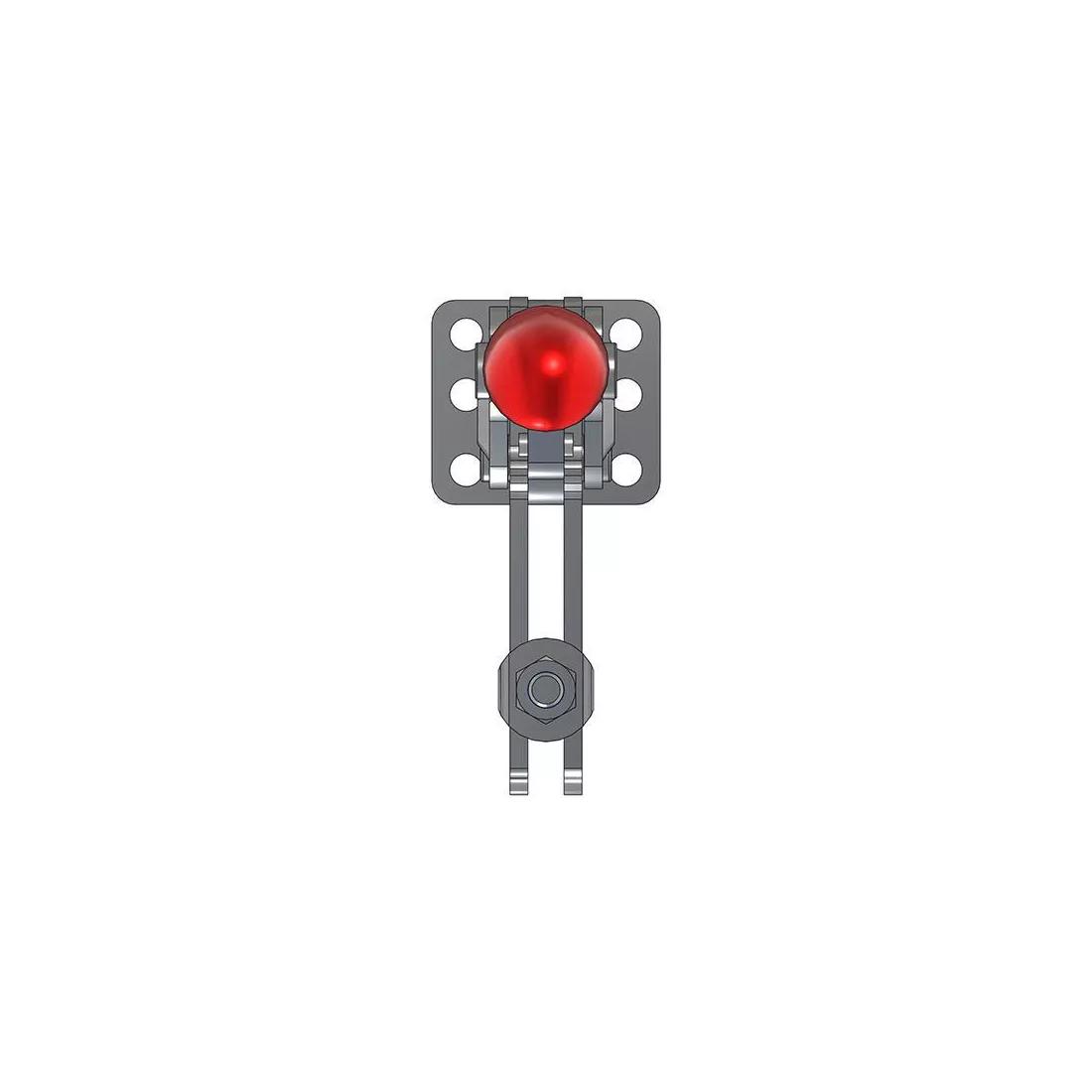

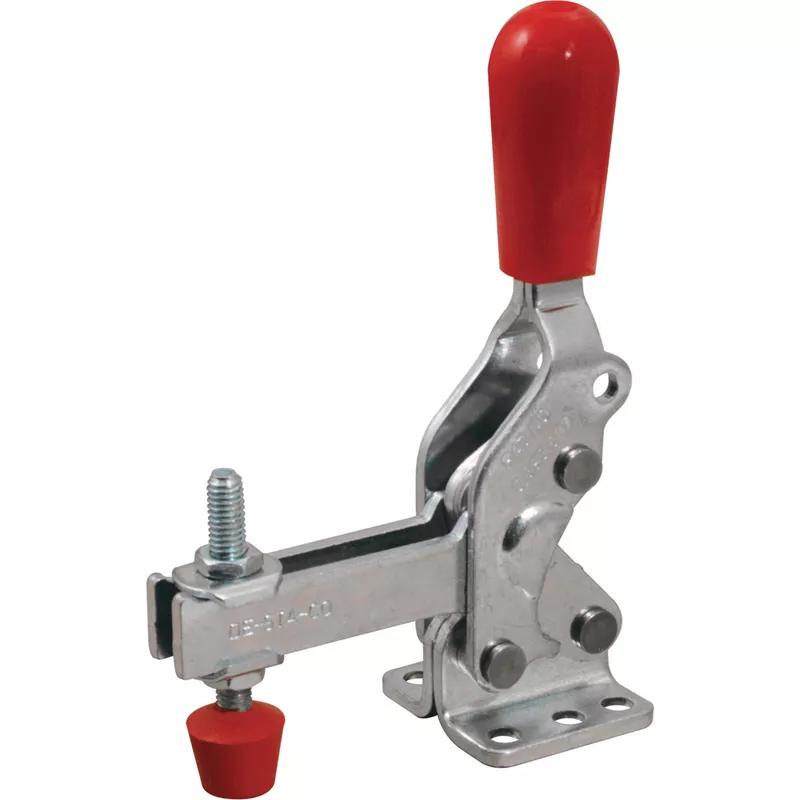

Manual Vertical Hold Down Clamp - Holding Capacity - 2668.9 N | 600 lbf; Height Under Arm - 24.1 mm | 0.950 in; Base Type - Flanged; Bar Type - U-Bar
4.72 inH x 3.29 inL Vertical Manual Hold Down Clamp has a U-Bar and Flanged base providing 600 lbf of holding force while saving work space. Manufacturer Part Number: 2002-U
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 2002-U |
| Holding Capacity | 600 lbf |
| Base Length | 1.360 in |
| Base Width | 1.520 in |
| Overall Height | 4.720 in |
| Overall Length | 3.290 in |
| Arm Length | 1.930 in |
| Height Under Arm | 0.950 in |
| Arm Movement | 75 |
| Handle Movement | 66 |
| Mounting Hole Diameter | 0.220 in |
| Mounting Hole Spacing Along Length | 0.900 in |
| Mounting Hole Spacing Along Width | 1.060 in |
| Base Type | Flanged |
| Arm Type | U-Bar |
| Spindle Type | Flat-Tip Bonded Neoprene |
| Spindle Thread Size | M6,1/4 |
| Body Material | Steel |
| Includes | M6 Spindle |
| Includes | (2) Flanged Washers |
| Includes | (2) Jam Nuts |
