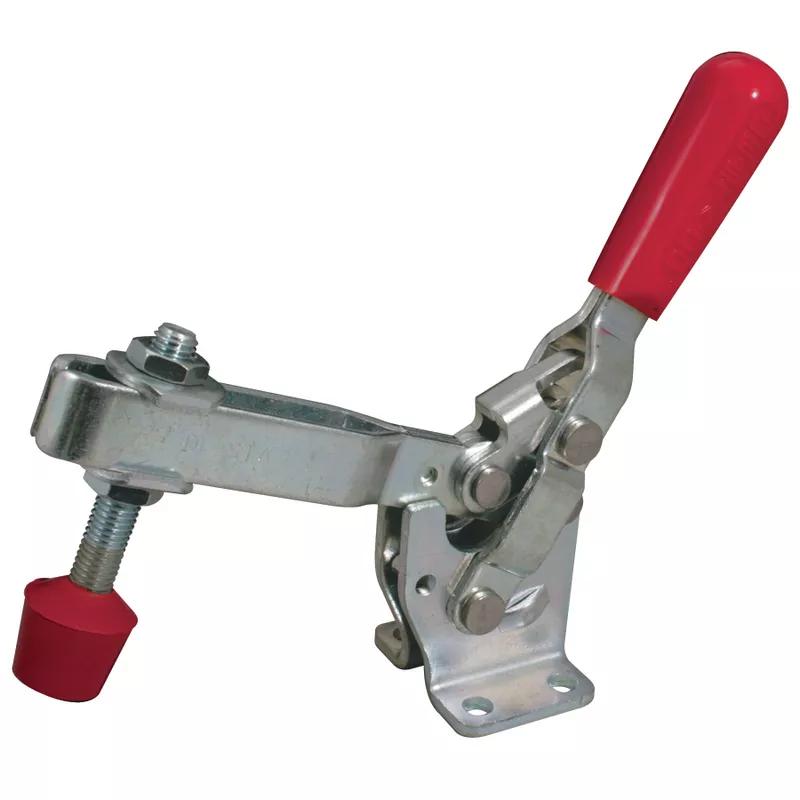

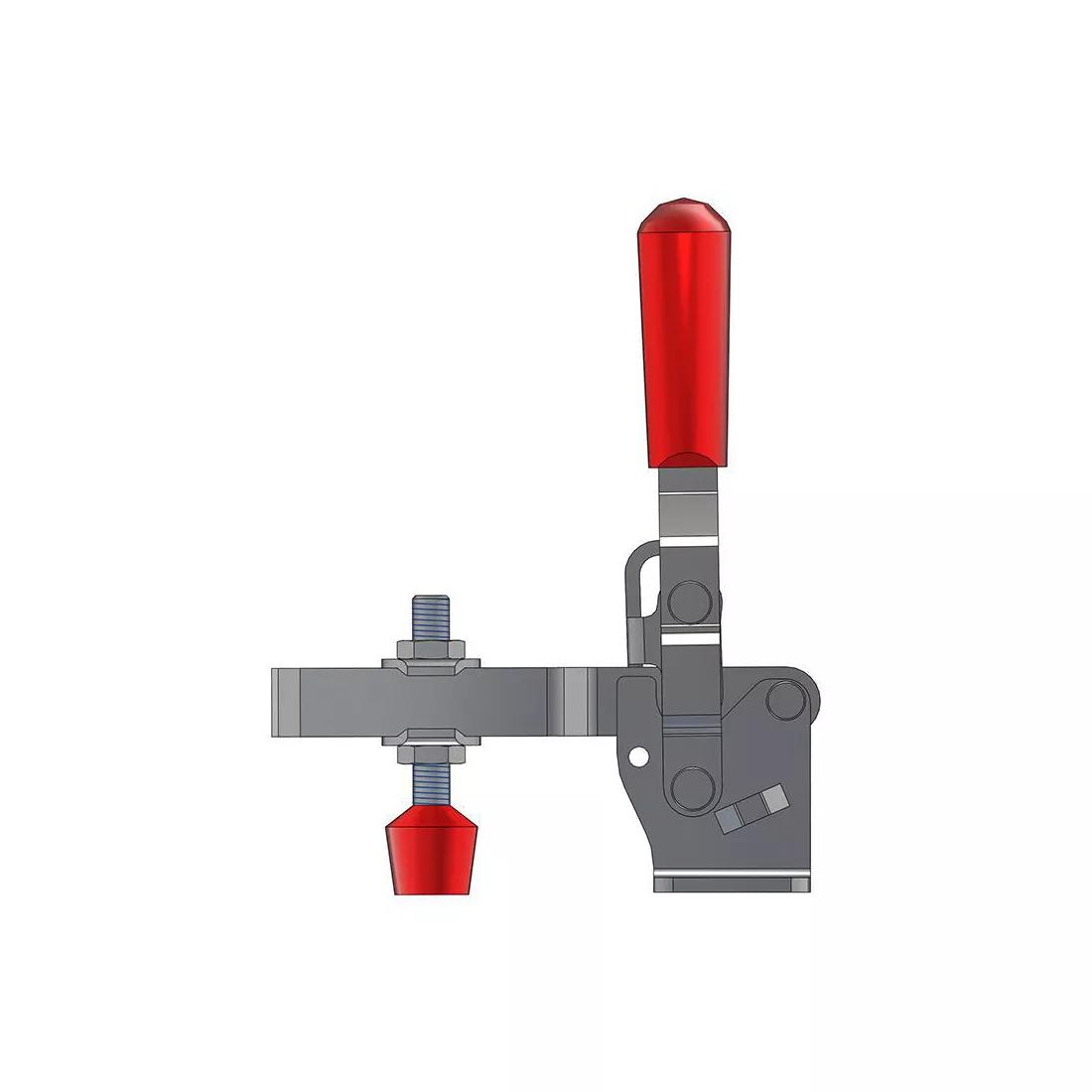

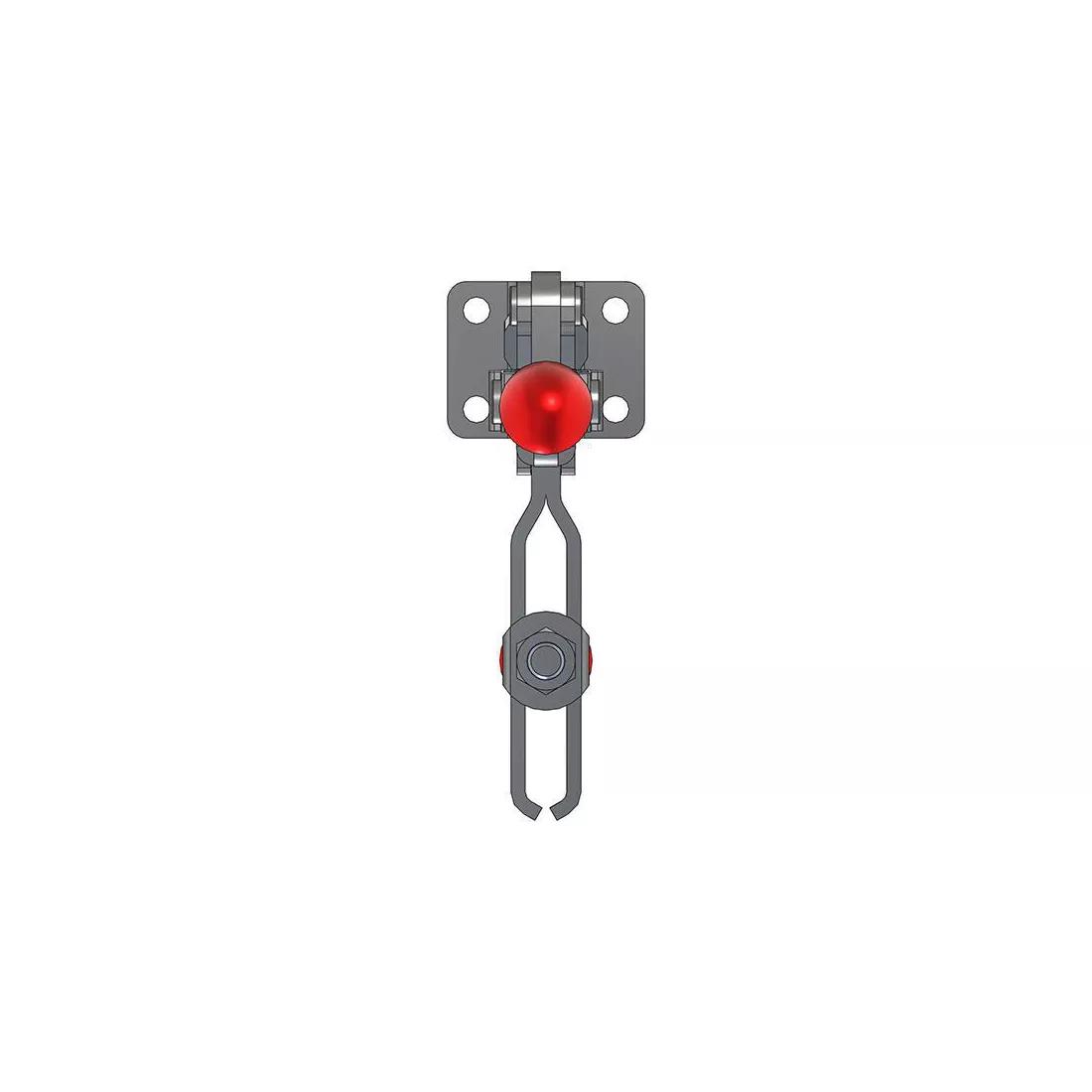

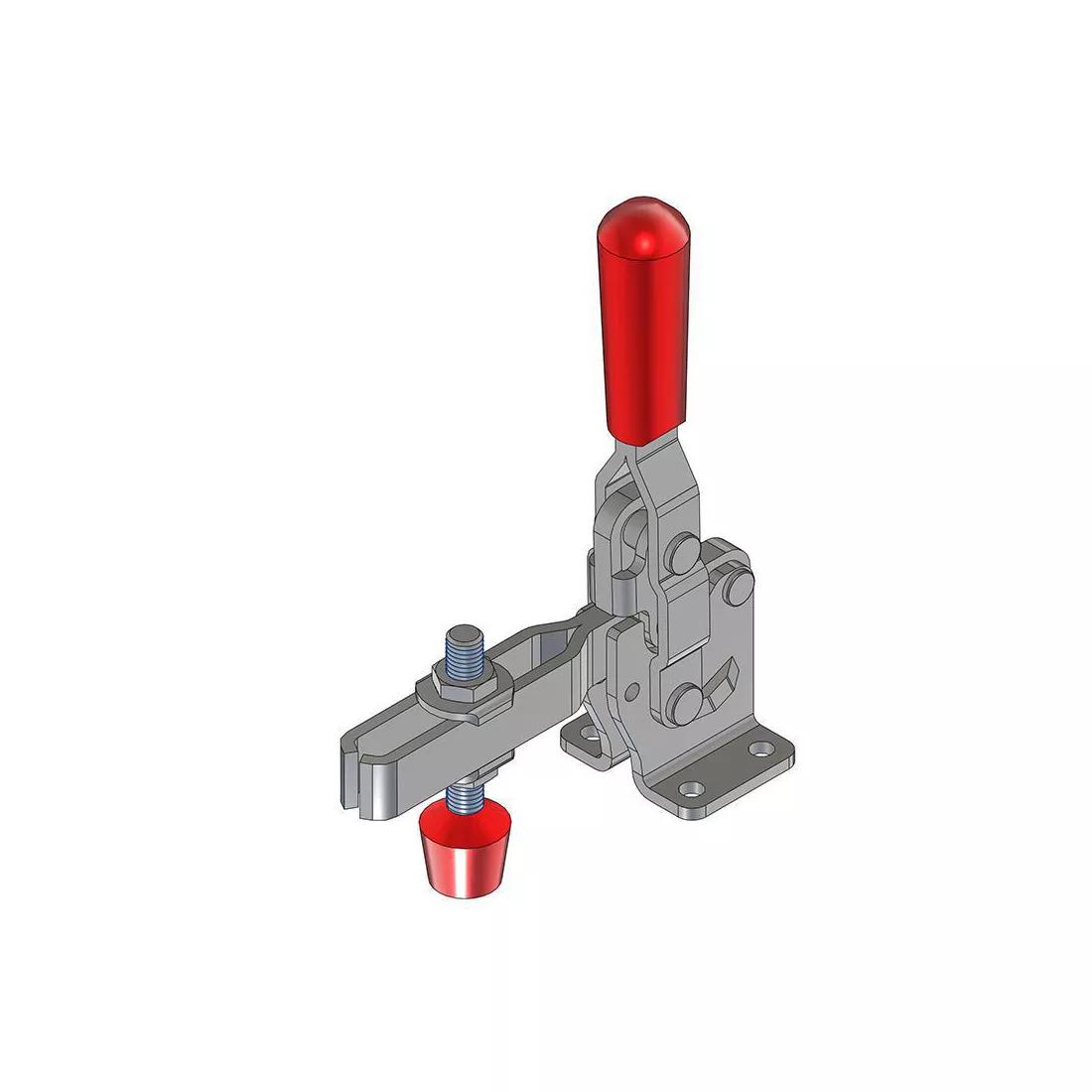

Manual Vertical Hold Down Clamp - Holding Capacity - 4448.2 N | 1000 lbf; Height Under Arm - 50.8 mm | 2.000 in; Base Type - Flanged; Bar Type - U-Bar
8.89 inH x 6.88 inL Vertical Manual Hold Down Clamp has a U-Bar and Flanged base providing 1000 lbf of holding force while saving work space. Manufacturer Part Number: 247-U
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Print page
Can't find what you're looking for?
Can't find what you're looking for?
Tell us what you are looking for…
Send us your inquiry and we will respond within 4 working hours. (Business hours are Monday through Friday, 7:30 am to 6:00 pm ET)
Thanks for contacting us. We will respond within 4 working hours. (Business hours are Monday through Friday, 7:30 am to 6:00 pm ET)
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 247-U |
| Holding Capacity | 1000 lbf |
| Base Length | 2.00 in |
| Base Width | 2.52 in |
| Overall Height | 8.89 in |
| Overall Length | 6.88 in |
| Arm Length | 4.88 in |
| Height Under Arm | 2.000 in |
| Arm Movement | 120 |
| Handle Movement | 67 |
| Mounting Hole Diameter | 0.350 in |
| Mounting Hole Spacing Along Length | 1.260 in |
| Mounting Hole Spacing Along Width | 1.770 in |
| Base Type | Flanged |
| Arm Type | U-Bar |
| Spindle Type | Flat-Tip Bonded Neoprene |
| Spindle Thread Size | M12,1/2-13 |
| Body Material | Steel |
| Includes | M12 Spindle |
| Includes | (2) Jam Nuts |
| Includes | (2) Flanged Washers |
