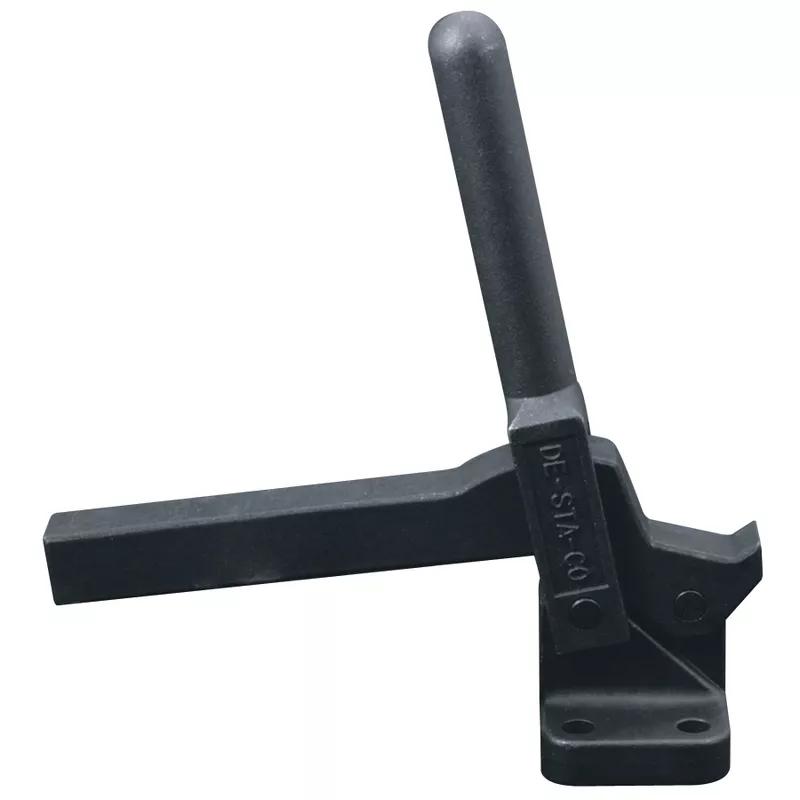

Manual Vertical Hold Down Clamp - Holding Capacity - 7117.2 N | 1600 lbf; Height Under Arm - 63.5 mm | 2.500 in; Base Type - Flanged; Bar Type - Solid
9.50 inH x 7.40 inL Vertical Manual Hold Down Clamp has a Solid and Flanged base providing 1600 lbf of holding force while saving work space. Manufacturer Part Number: 7-60
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 7-60 |
| Holding Capacity | 1600 lbf |
| Base Length | 2.44 in |
| Base Width | 2.88 in |
| Overall Height | 9.50 in |
| Overall Length | 7.40 in |
| Arm Length | 4.38 in |
| Height Under Arm | 2.500 in |
| Arm Movement | 80 |
| Mounting Hole Diameter | 0.410 in |
| Mounting Hole Spacing Along Length | 1.620 in |
| Mounting Hole Spacing Along Width | 2.12 in |
| Base Type | Flanged |
| Arm Type | Solid |
| Body Material | Steel |
