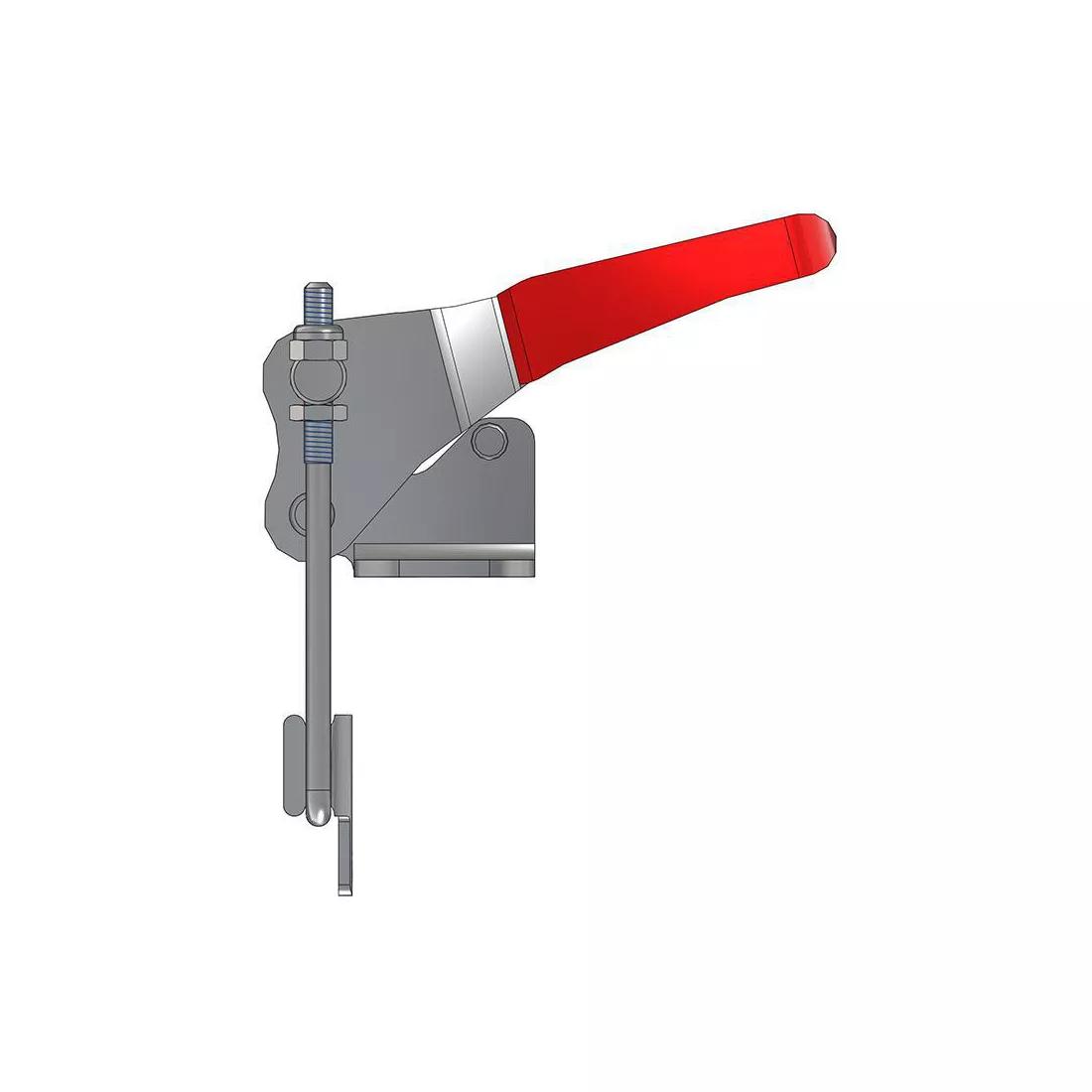

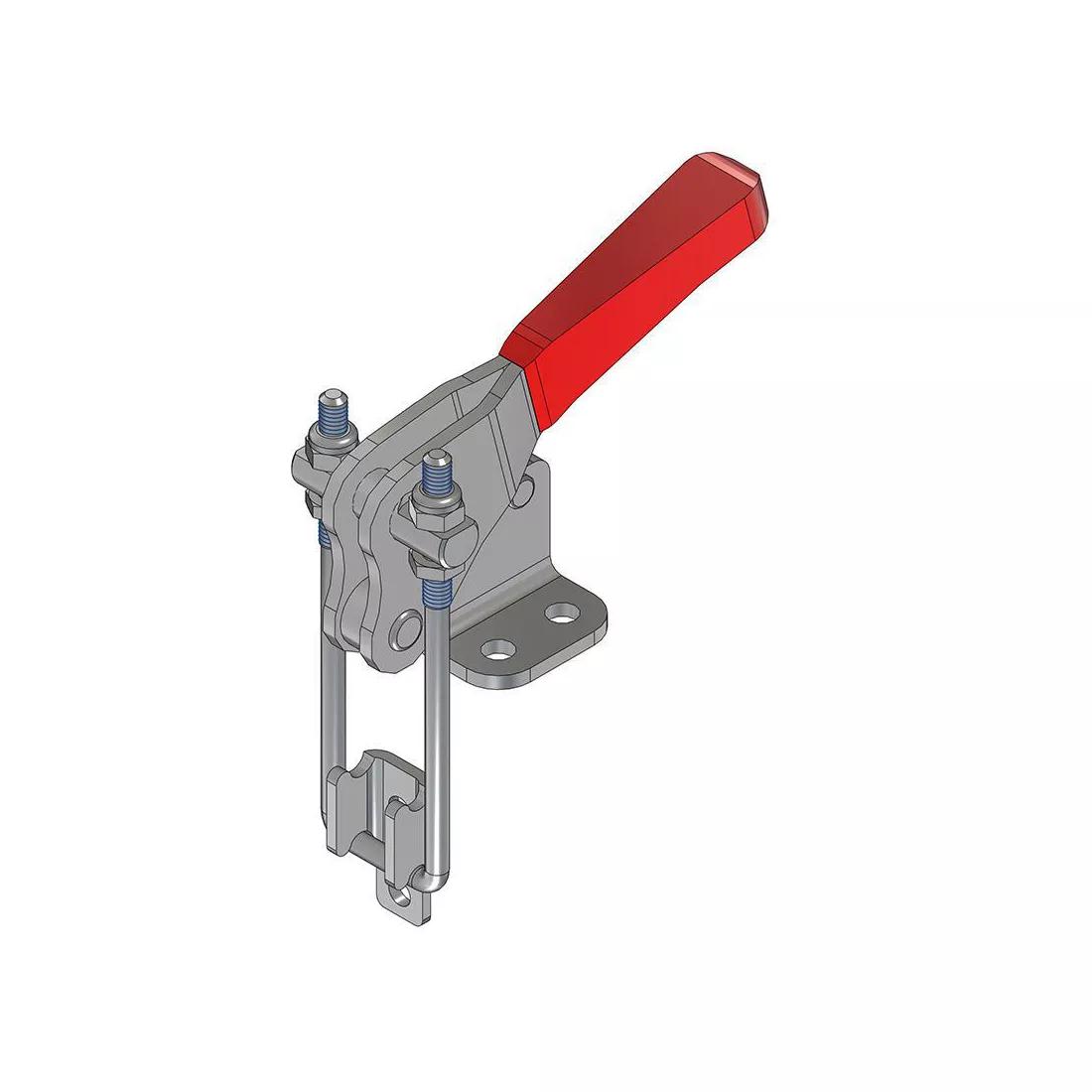

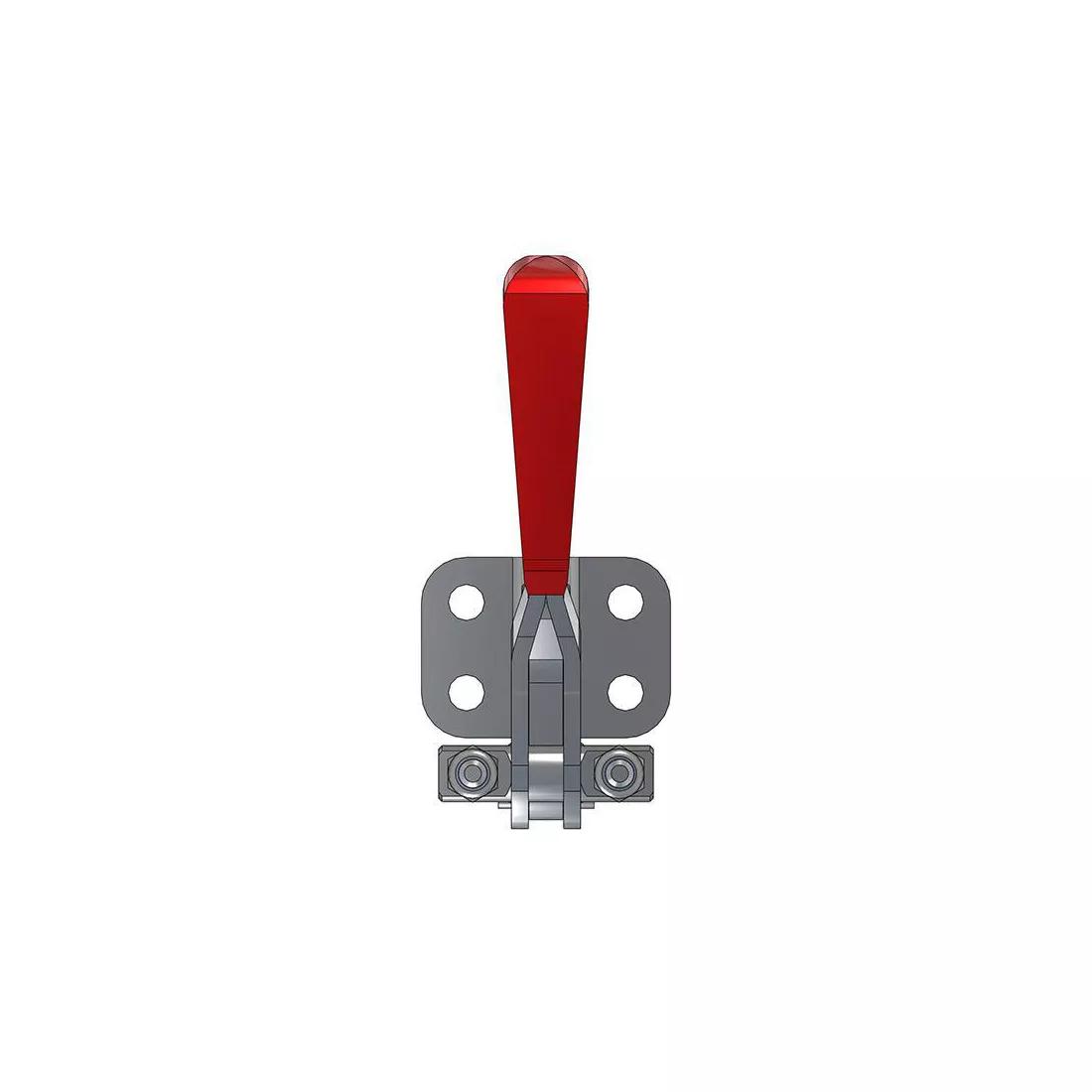

Hook and Latch Clamp; Holding Capacity=2224.1 N | 500 lbf, Travel=38.9 mm
Thumb Control;Locking Release Vertical Manual Hook & Latch Clamp holds materials in place with 500 lbs of force. The 2.070 inH x 3.350 inL low profile clamp is ideal for height restricted applications. Manufacturer Part Number: 324-SS
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 324-SS |
| Holding Capacity | 500 lbf |
| Travel | 38.9 mm |
| Arm Type | U-Bar |
| Lever Type | Thumb Control;Locking Release |
| Arm Length | 2.56 in |
| Arm Width | 0.140 in |
| Base Width | 1.38 in |
| Base Length | 1.00 in |
| Overall Length | 3.35 in |
| Overall Height | 2.07 in |
| Mounting Hole Diameter | 0.200 in |
| Body Material | Stainless Steel |
| Includes (All) | 1 Latch Plate |
