; Stroke Length=6.4 mm | 0.250 in, Holding Force=115.7 N | 26 lbf,

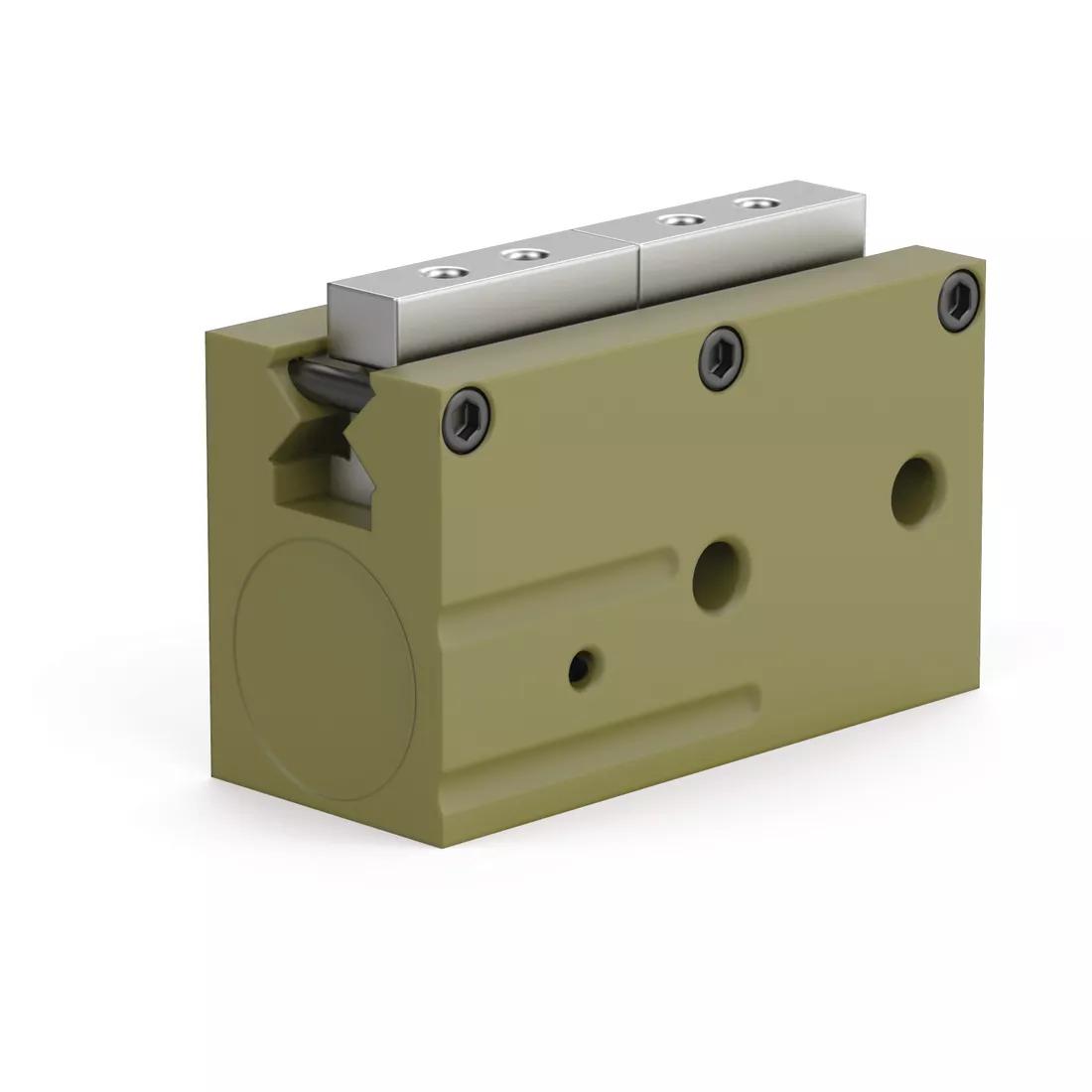

This precision parallel gripper is ideal for small parts handling and features a patented dual V roller bearing support. Available in synchronous & non-synchronous operation. Note: Metric ports and mounting holes
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $356.00 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Robohand |
|---|---|
| Minimum Operating Pressure | 0.3 bar |
| Maximum Operating Pressure | 6.9 bar |
| Bore Diameter | 11.1 mm |
| Stroke Length | 6.4 mm |
| Holding Force | 115.7 N |
| Accuracy Tolerance | 0.002 |
| Jaw Operation | Synchronous |
| Spring Assist | No |
| Direct Connect | No |
| Optional Sensor | Yes |
| Minimum Operating Temperature | -34.4 °C |
| Maximum Operating Temperature | 82.2 °C |
| Actuation Time | 0.10 s |
| Special Offer | New |
