N/A - Holding Capacity 1556.9 N | 350 lbf; Arm Height 16 mm | 0.630 in

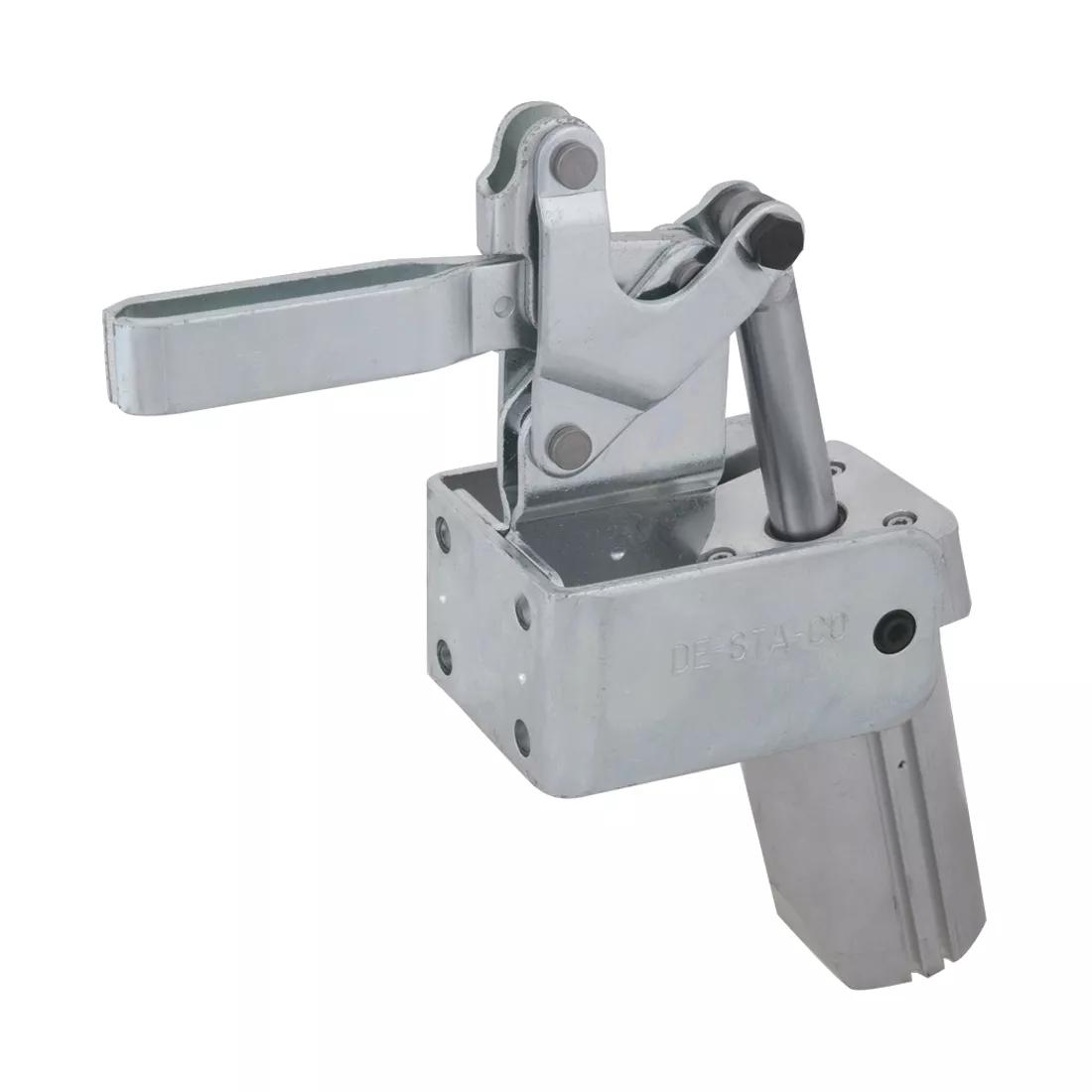

7.42 in H x 6.18 in L Right Angle mounted Cylindrical Pneumatic Hold Down Clamp can hold 350 lbs on over-center toggle clamps. Manufacturer Part Number: 817-U
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 817-U |
| Holding Capacity | 350 lbf |
| Maximum Operating Pressure | 80 PSI |
| Mounting Hole Diameter | 0.270 in |
| Mounting Orientation | Right Angle |
| Hole Spacing Length | .630 in |
| Hole Spacing Width | 1 in |
| Arm Height | 0.630 in |
| Height Under Arm | 2.690 in |
| Overall Height | 7.420 in |
| Overall Length | 6.180 in |
| Arm Length | 2.440 in |
| Arm Type | U-Bar |
| Body Material | Steel;Aluminum |
