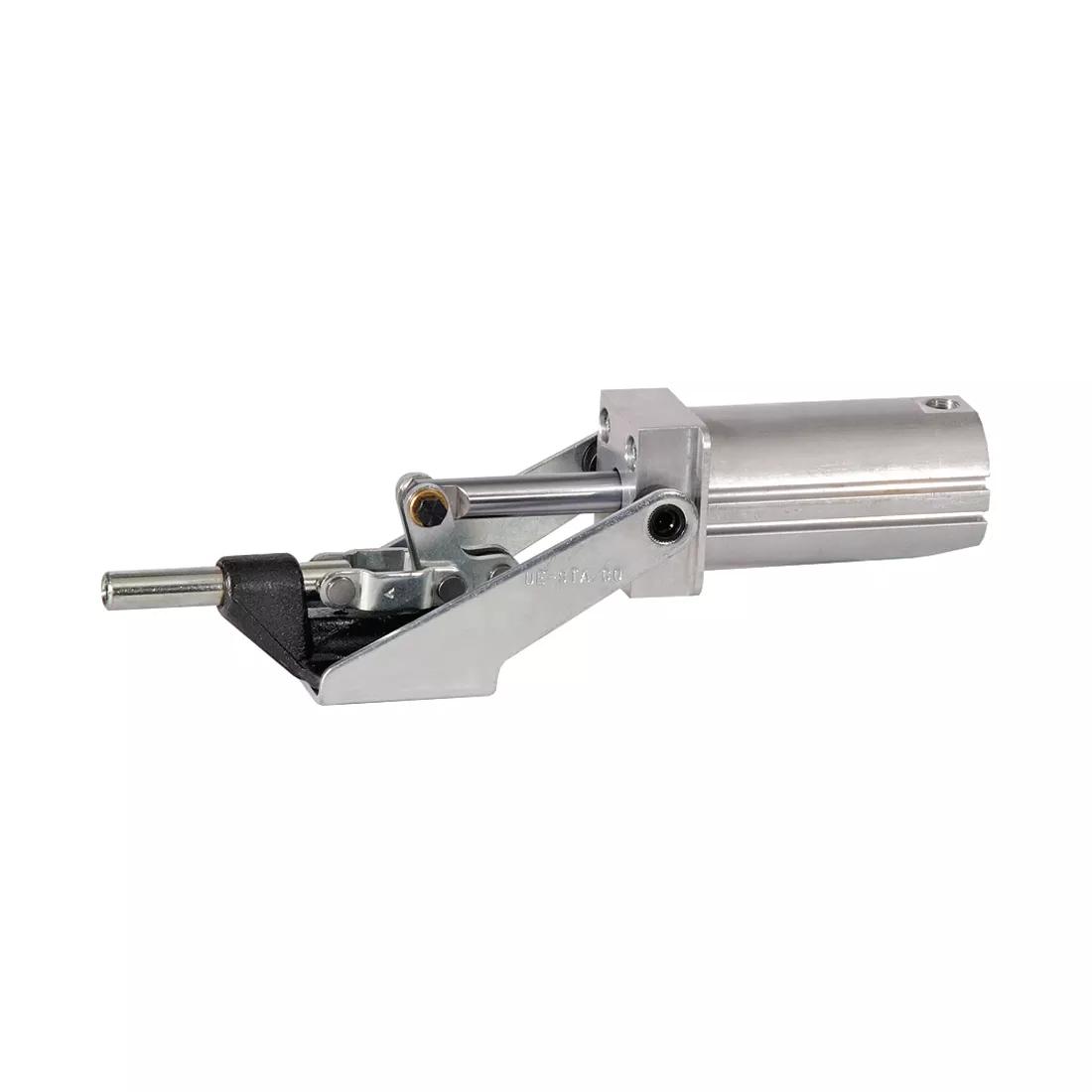

Pneumatic Push Pull Clamps

In stock

Pneumatic Push Pull Clamps are used to apply pressure vertically in a straight-line action. Use clamps to wedge your project up against a rail or pair with another push pull clamp to apply force against each other in a vise-like application.

Need a quote?

For large volumes and non-standard products, add to your cart and click request a quote. You may also call 800 253 0421 or email sales@reidsupply.com. We respond to most quotes within 4 working hours. (Business hours are Monday through Friday, 7:30 am to 6:00 pm ET)

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Product SKUs information
Quick View Item code Price range Availability Holding Capacity Overall Height Plunger Travel Brand
TC-803
$167.5 - $186.11 2 In stock
600 lbf
2.880 in
DESTACO
TC-800
$732.55 - $813.94 Limited availability
DESTACO
TC-800-E
$813.94 - $813.94 6 In stock
DESTACO
TC-8031
$529.18 - $587.98 Limited availability
2000 lbf
2.370 in
DESTACO
TC-850
$506.78 - $563.09 Limited availability
16000 lbf
7.210 in
DESTACO
TC-830
$278.33 - $309.25 3 In stock
2500 lbf
3.590 in
DESTACO
Pneumatic Push Pull Clamp; Holding Capacity=2668.9 N | 600 lbf, Plunger Travel=19,1 mm, Overall Height=73.2 mm | 2.880 in

TC-803

Price Range
$186.11 - $167.5

Stock Levels
2 In stock
Attributes
  • Brand
    DESTACO
  • Holding Capacity
    600 lbf
  • Maximum Operating Pressure
    145 PSI
  • Port Thread Size
    1/8
  • Plunger Diameter
    .440 in
Pneumatic Retractor Clamp; Maximum Holding Force=1500 lbs

TC-800

Price Range
$813.94 - $732.55

Stock Levels
Limited availability
Attributes
  • Brand
    DESTACO
  • Maximum Operating Pressure
    150 PSI
  • Overall Length
    4.810 in
Pneumatic Retractor Clamp; Maximum Holding Force=1200 lbs

TC-800-E

Price Range
$813.94 - $813.94

Stock Levels
6 In stock
Attributes
  • Brand
    DESTACO
  • Maximum Operating Pressure
    150 PSI
  • Overall Length
    4.810 in
Pneumatic Push Pull Clamp; Holding Capacity=8896.4 N | 2000 lbf, Plunger Travel=19,1 mm, Overall Height=60.2 mm | 2.370 in

TC-8031

Price Range
$587.98 - $529.18

Stock Levels
Limited availability
Attributes
  • Brand
    DESTACO
  • Holding Capacity
    2000 lbf
  • Maximum Operating Pressure
    145 PSI
  • Port Thread Size
    1/8
  • Plunger Diameter
    .440 in
Pneumatic Push Pull Clamp; Holding Capacity=71171.5 N | 16000 lbf, Plunger Travel=50,8 mm, Overall Height=183.1 mm | 7.210 in

TC-850

Price Range
$563.09 - $506.78

Stock Levels
Limited availability
Attributes
  • Brand
    DESTACO
  • Holding Capacity
    16000 lbf
  • Maximum Operating Pressure
    145 PSI
  • Port Thread Size
    1/4
  • Plunger Diameter
    1.000 in
Pneumatic Push Pull Clamp; Holding Capacity=11120.6 N | 2500 lbf, Plunger Travel=31,8 mm, Overall Height=91.2 mm | 3.590 in

TC-830

Price Range
$309.25 - $278.33

Stock Levels
3 In stock
Attributes
  • Brand
    DESTACO
  • Holding Capacity
    2500 lbf
  • Maximum Operating Pressure
    145 PSI
  • Port Thread Size
    1/8
  • Plunger Diameter
    .620 in
