| Reid Supply

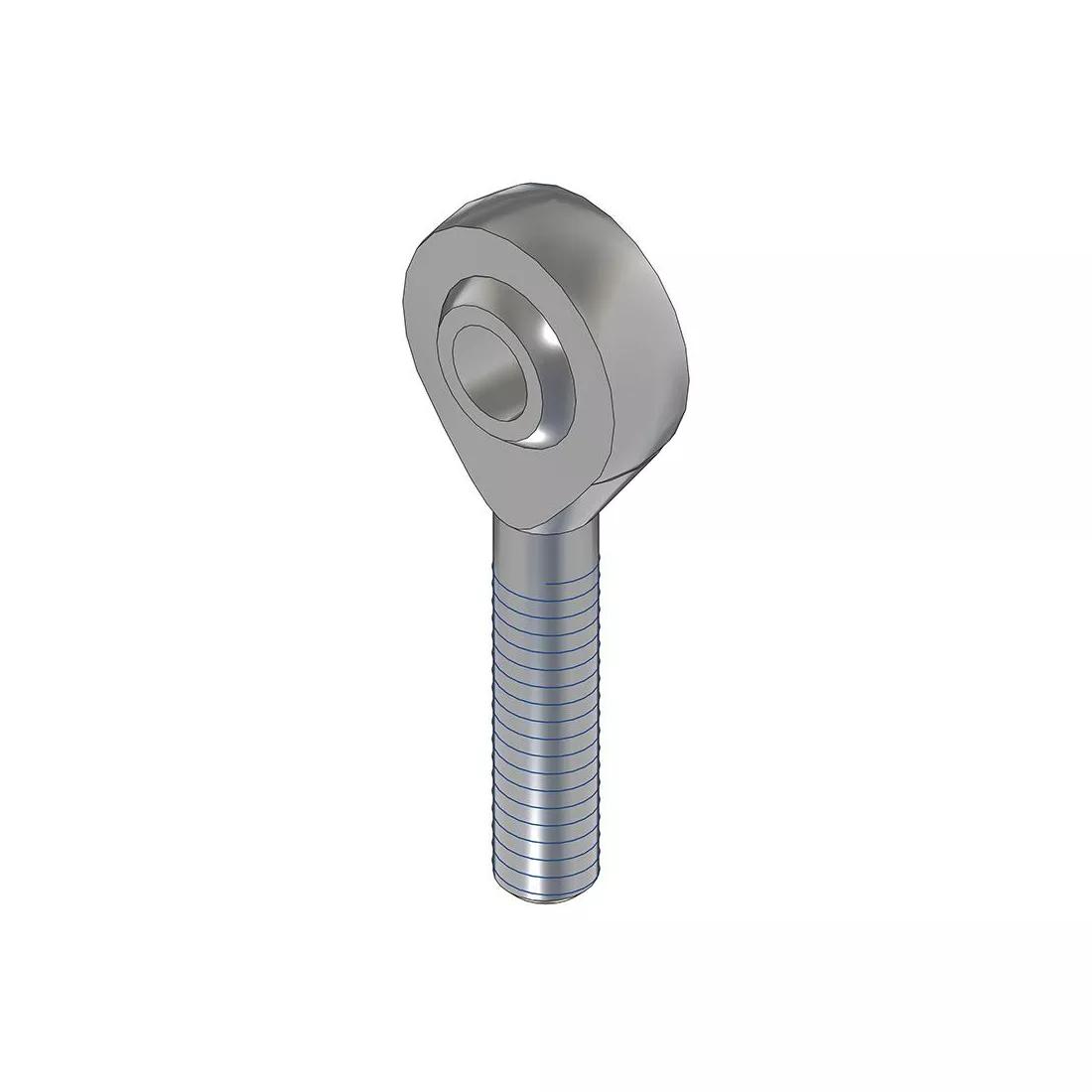

I-518_Isometric Rendering

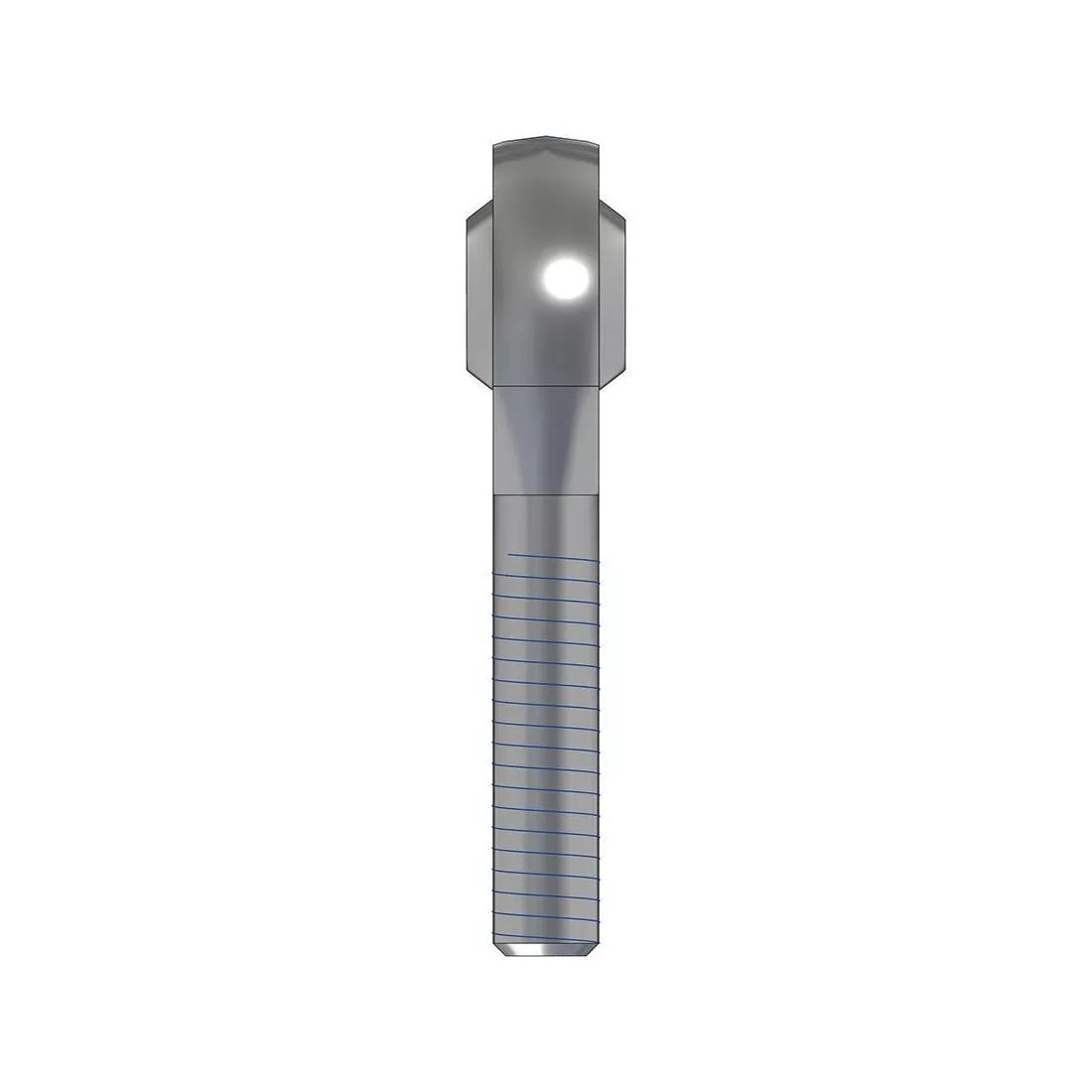

I-518_Right Rendering

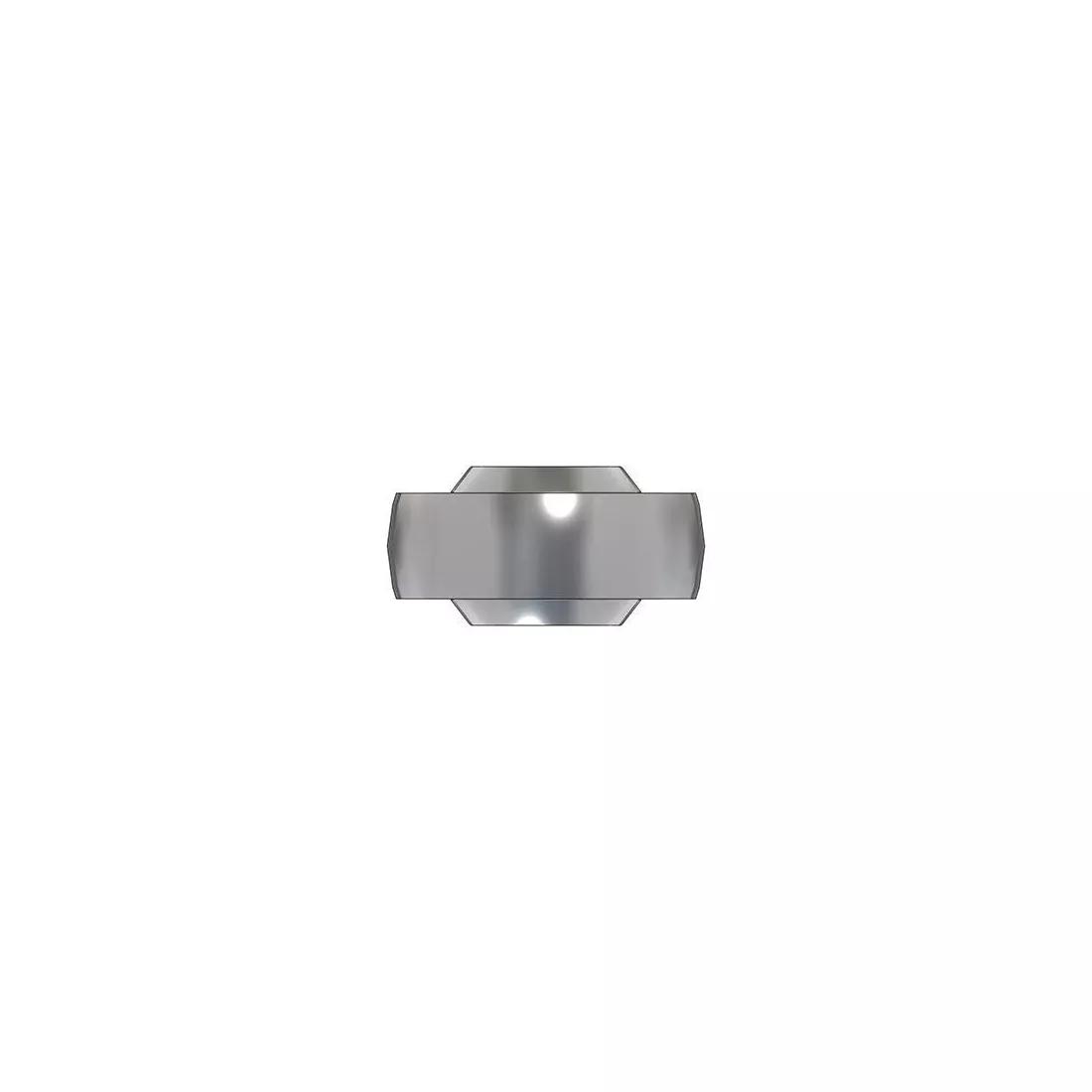

I-518_Top Rendering

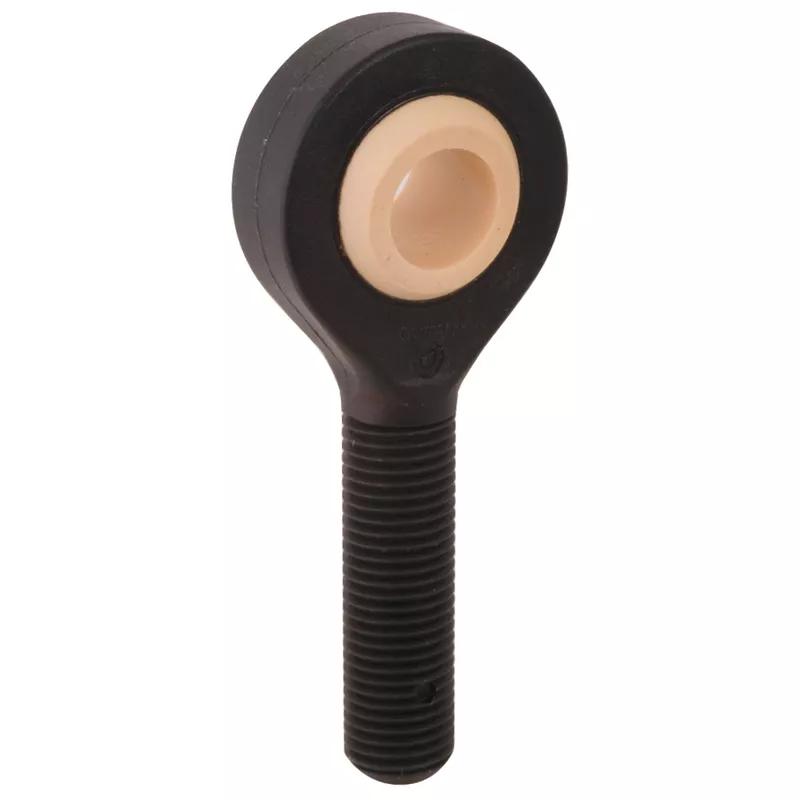

Spherical Rod End; Spherical Rod Ends, Rod End Thread Size=1/4-28, Ball Bore Diameter=6.4 mm | 0.250 in

Item code:

I-518

Click here for lead time. For more information Delivery & returns

I-518

SKU price information
Quantity	Unit price
1 +	$4.56

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Specifications

Imperial

Metric

SKU attributes
Brand	Igus
Type	Spherical Rod Ends
Ball Diameter	13.1 mm
Ball Diameter	.516 in
Ball Bore Diameter	6.4 mm
Ball Bore Diameter	0.250 in
Ball Housing Diameter	19.1 mm
Ball Housing Diameter	0.750 in
Ball Width	9.5 mm
Ball Width	0.375 in
Ball Housing Width	6.4 mm
Ball Housing Width	0.250 in
Rod End Thread Size	1/4-28
Thread Direction	Right Hand
Rod End Thread Length	25.4 mm
Rod End Thread Length	1.000 in
Rod End to Ball Center Length	39.7 mm
Rod End to Ball Center Length	39.7 mm
Liner Material	Unlined
Ball End Type	Plain
