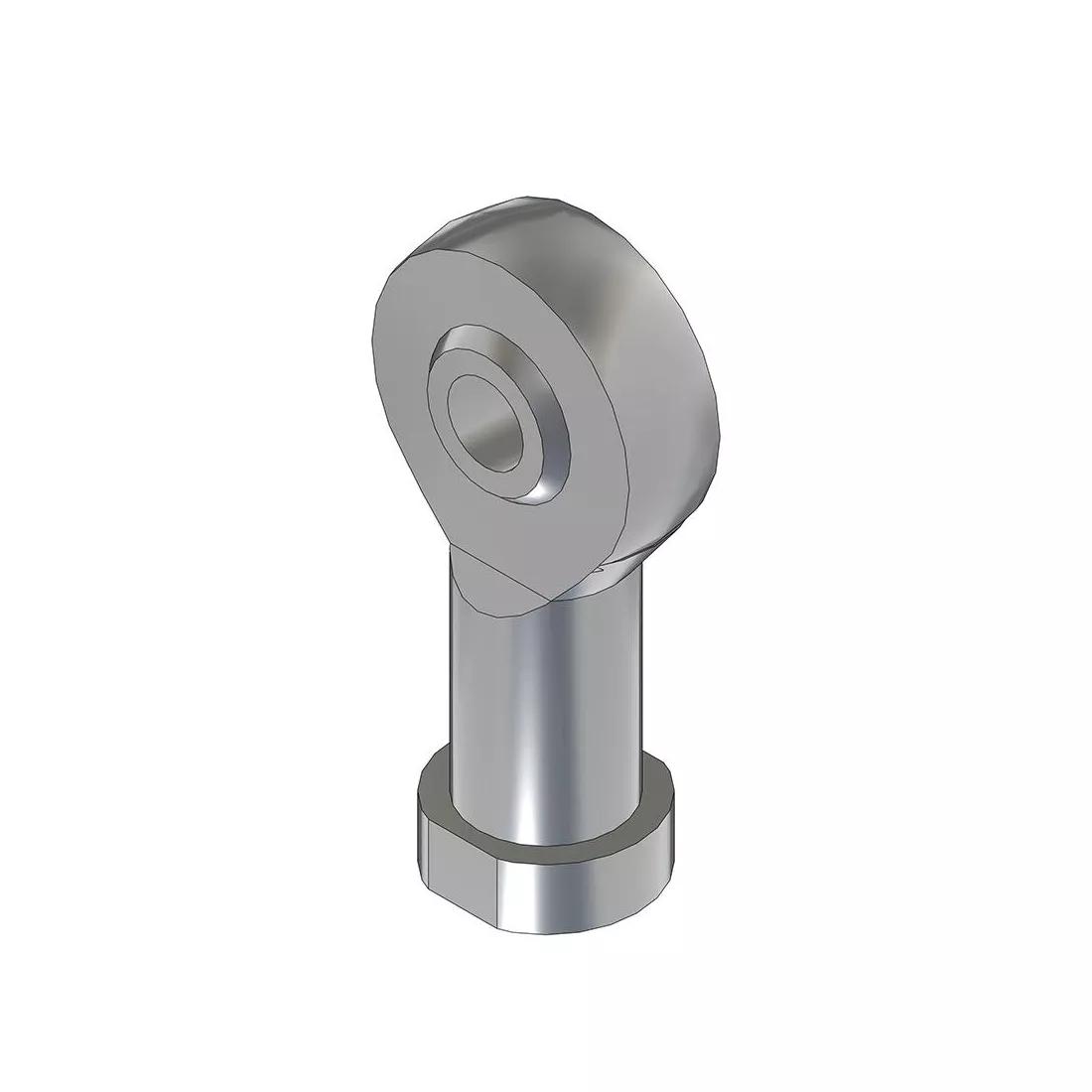

I-530_Isometric Rendering

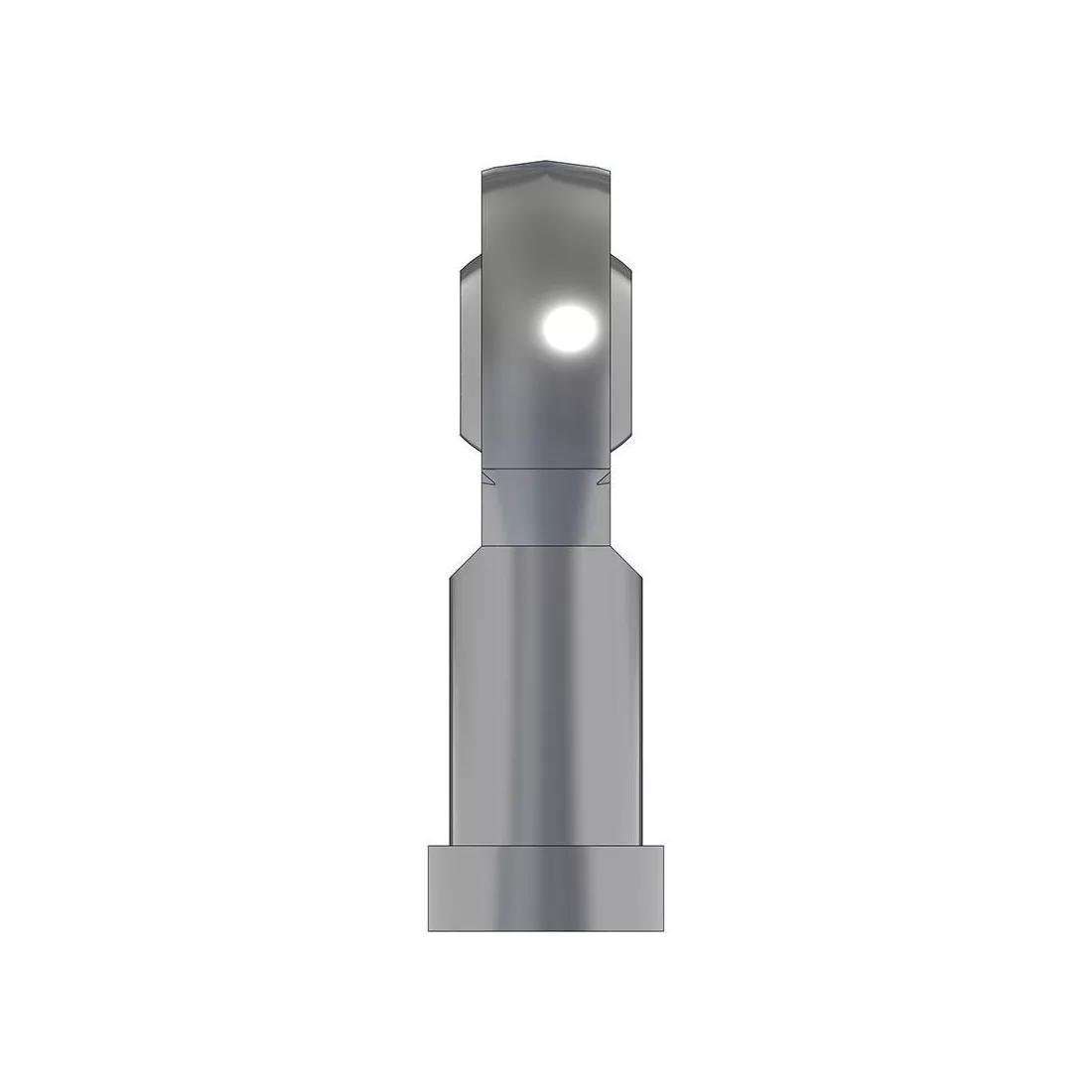

I-530_Right Rendering

I-530_Top Rendering

Spherical Rod End; Spherical Rod Ends, Rod End Thread Size=M5 x .8, Ball Bore Diameter=5 mm | 0.197 in

Item code:

I-530

Click here for lead time. For more information Delivery & returns

I-530

SKU price information
Quantity	Unit price
1 +	$4.76

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Specifications

Imperial

Metric

SKU attributes
Brand	Igus
Type	Spherical Rod Ends
Ball Diameter	11 mm
Ball Diameter	.433 in
Ball Bore Diameter	5 mm
Ball Bore Diameter	0.197 in
Ball Housing Diameter	18 mm
Ball Housing Diameter	0.709 in
Ball Width	8 mm
Ball Width	0.315 in
Ball Housing Width	6 mm
Ball Housing Width	0.236 in
Rod End Thread Size	M5 x .8
Thread Direction	Right Hand
Rod End Thread Length	10 mm
Rod End Thread Length	.394 in
Rod End to Ball Center Length	27 mm
Rod End to Ball Center Length	27 mm
Liner Material	Unlined
Ball End Type	Plain
