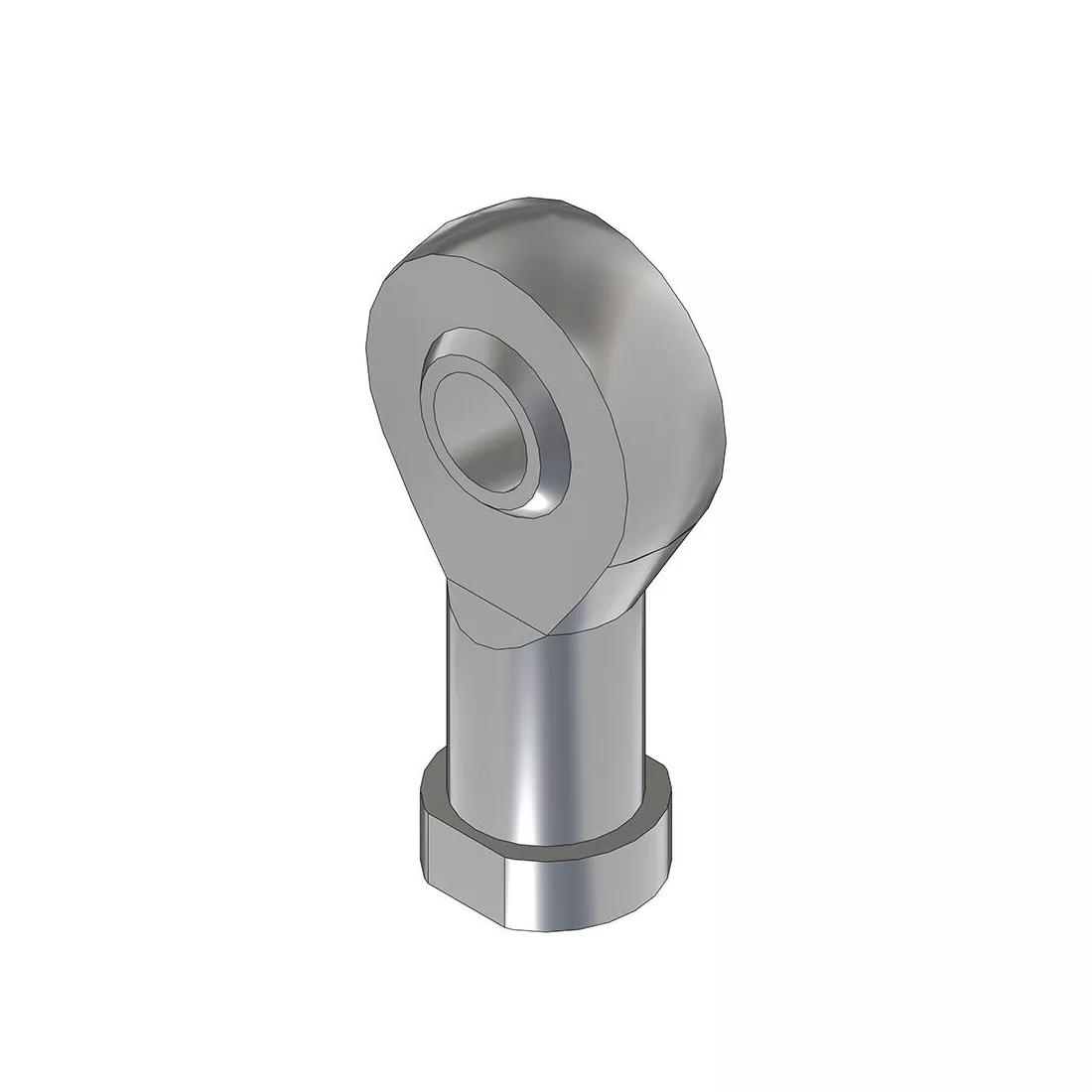

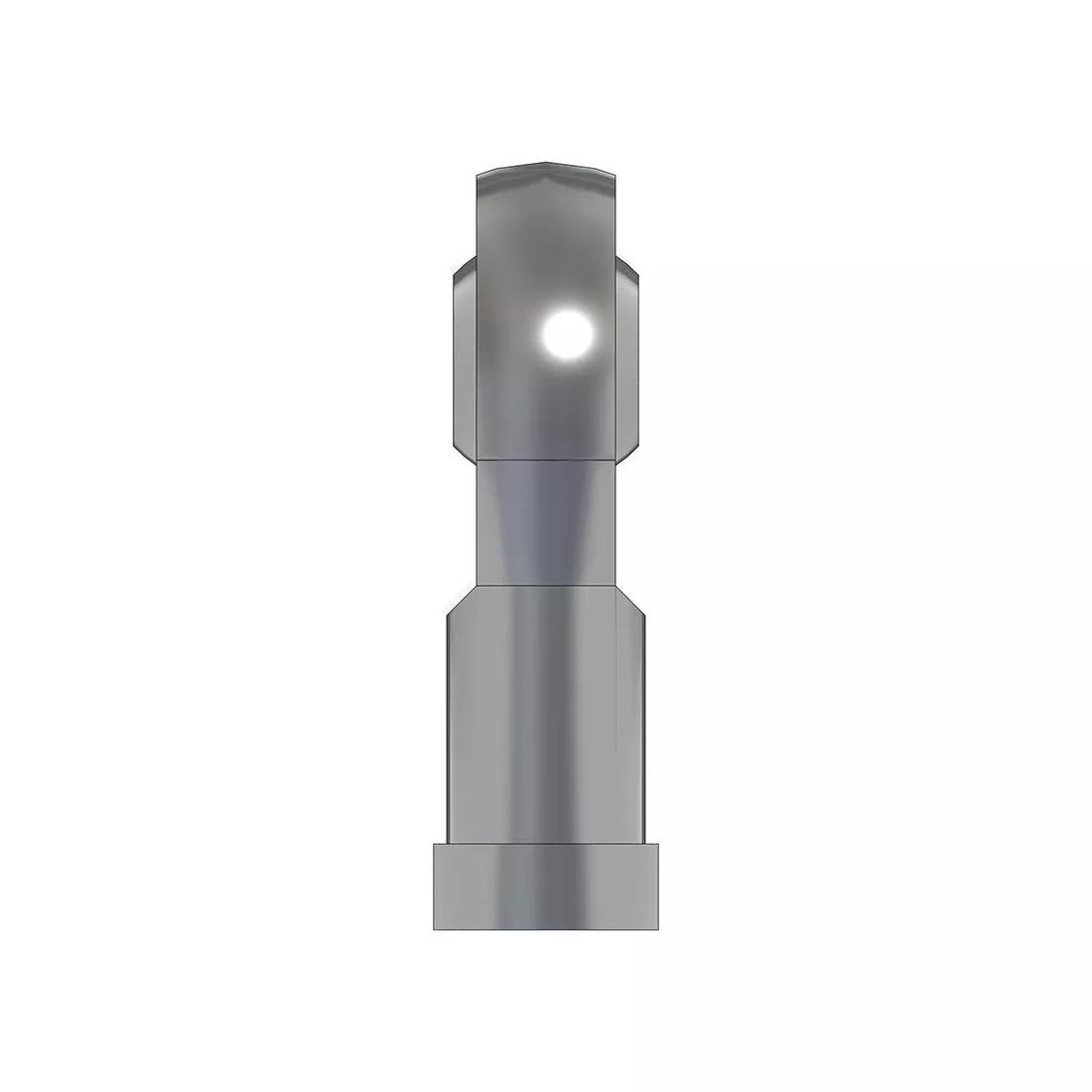

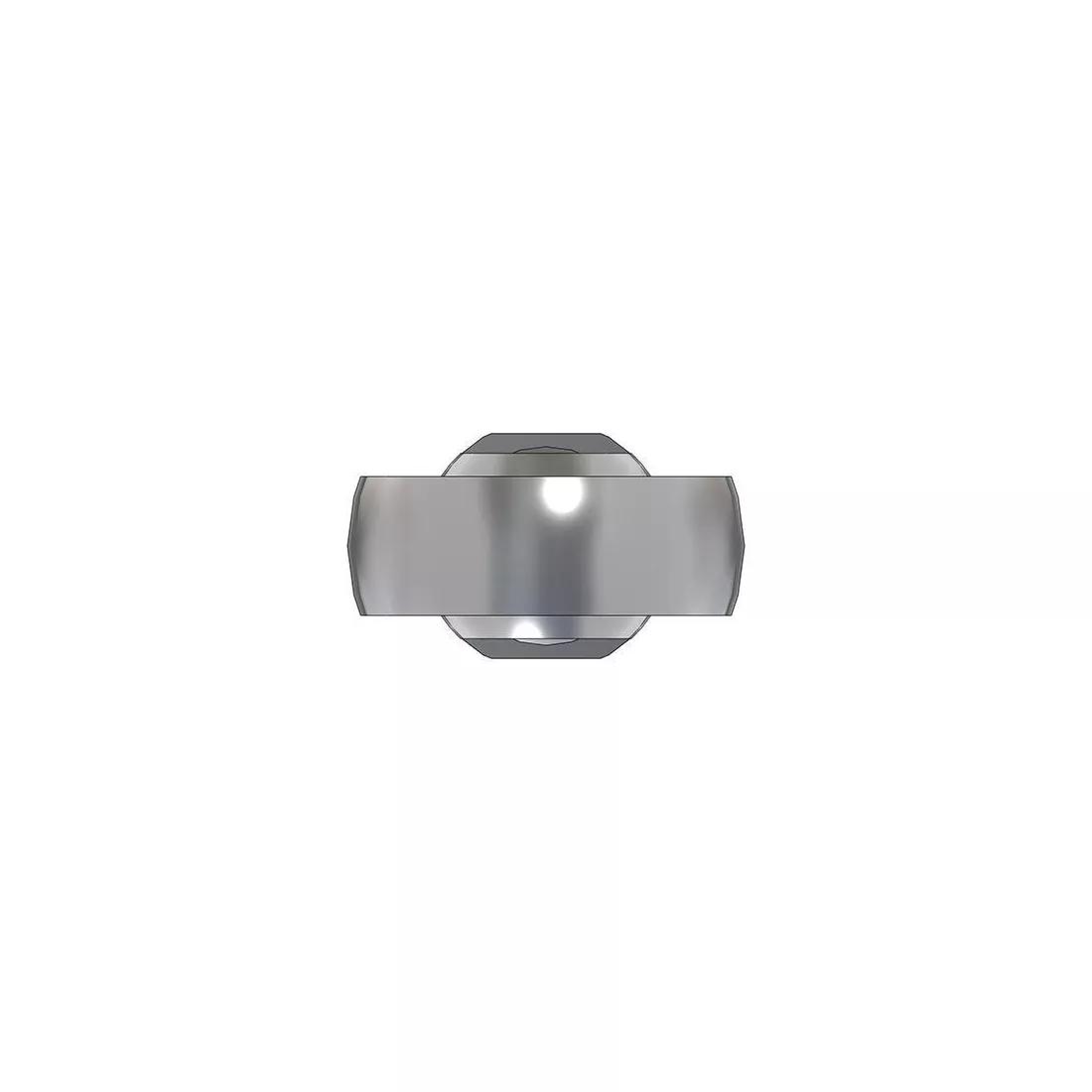

Spherical Rod End; Spherical Rod Ends, Rod End Thread Size=M10 x 1.5, Ball Bore Diameter=10 mm | 0.394 in
I-536
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $3.79 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Igus |
|---|---|
| Type | Spherical Rod Ends |
| Ball Diameter | .748 in |
| Ball Bore Diameter | 0.394 in |
| Ball Housing Diameter | 1.181 in |
| Ball Width | 0.551 in |
| Ball Housing Width | 0.413 in |
| Rod End Thread Size | M10 x 1.5 |
| Thread Direction | Right Hand |
| Rod End Thread Length | .787 in |
| Rod End to Ball Center Length | 43 mm |
| Liner Material | Unlined |
| Ball End Type | Plain |
