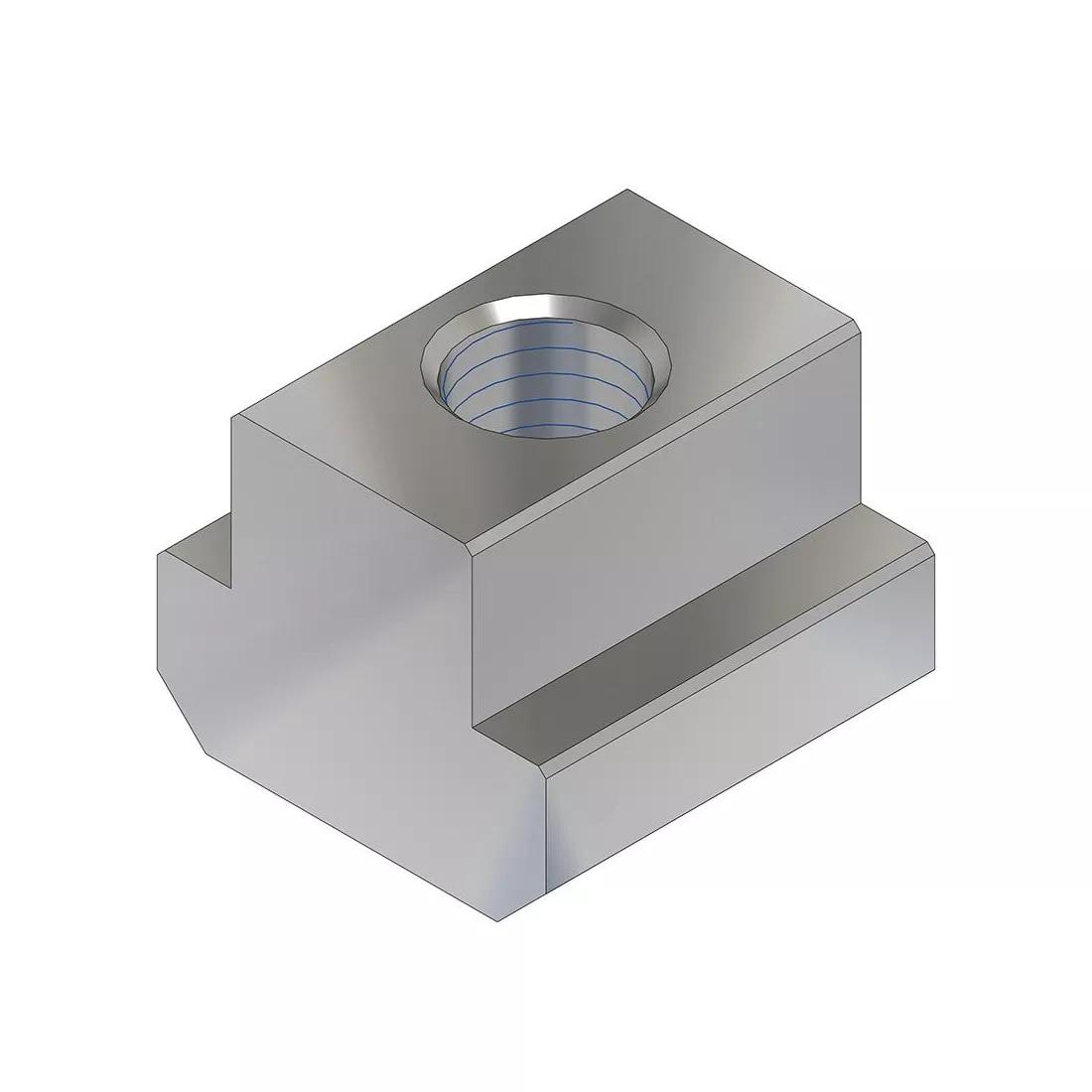

T-Slot Nut; Overall Height=28.0 mm | 1.102 in, Overall Length=35.0 mm | 1.378 in, Overall Width=35.0 mm | 1.378 in, Thread Size=M16, 155630
This Black Oxide finish T-Nut has a base diameter height of 14.0 mm and compatible table slot diameter of . It is 28.0 mm high, 35.0 mm wide and 35.0 mm long. Manufacturer Part Number: 155630
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Thread Size | M16 |
|---|---|
| Type | Chamfered |
| Thread Type | Safety-Stop Thread |
| Material | Cold-Finished/Case-Hardened Steel |
| Pitch/TPI | 2.0 mm |
| Finish | Black Oxide |
| Manufacturer Part Number | 155630 |
